Furnish New Battery Ritar OPzV Series OPzV12 0160 V0 F10 T
Technology: Lead_Acid_Over120lbsFurnish New Battery Ritar OPzV Series OPzV12 0160 V0 F10 T
$982.58
Furnish New Battery Ritar OPzV Series OPzV12 0160 V0 F10 T

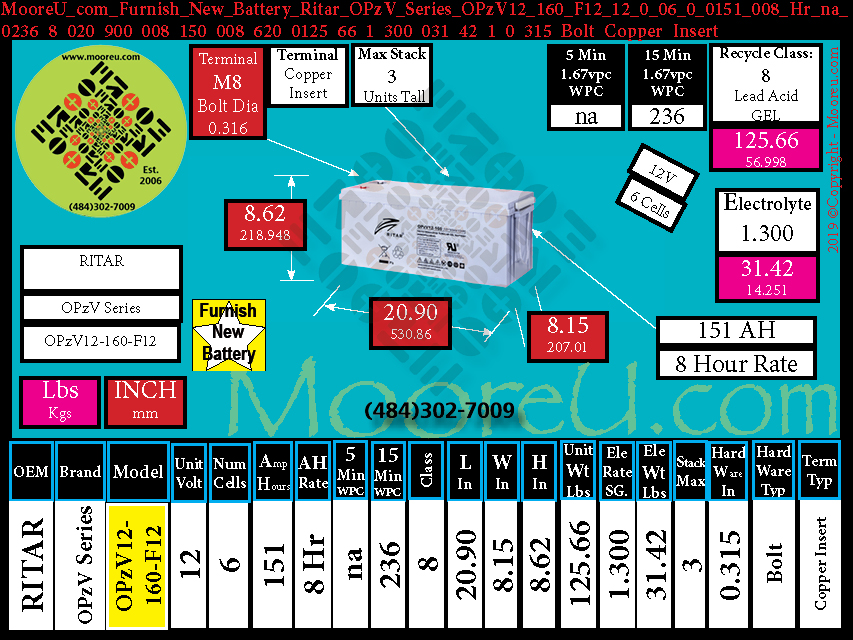

| Battery Model | Ritar OPzV Series OPzV12 0160 V0 F10 T |
|---|---|
| Adjustment | 0.053333333 |
| AH Per String | 160 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | -17.778°C to 40°C |
| ISC Amps | 1800 |
| Internal Resistance | 0.00058 Ohms |
| Dimensions (L x W x H) | 20.87 x 8.23 x 8.62 in |
| Weight | 125.7 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | F10 |
| FOB | T |
| Max Continuous Discharge | 480 Amps |
| Max Charge Amps | 48 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 236 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 7.05778562 lbs |
