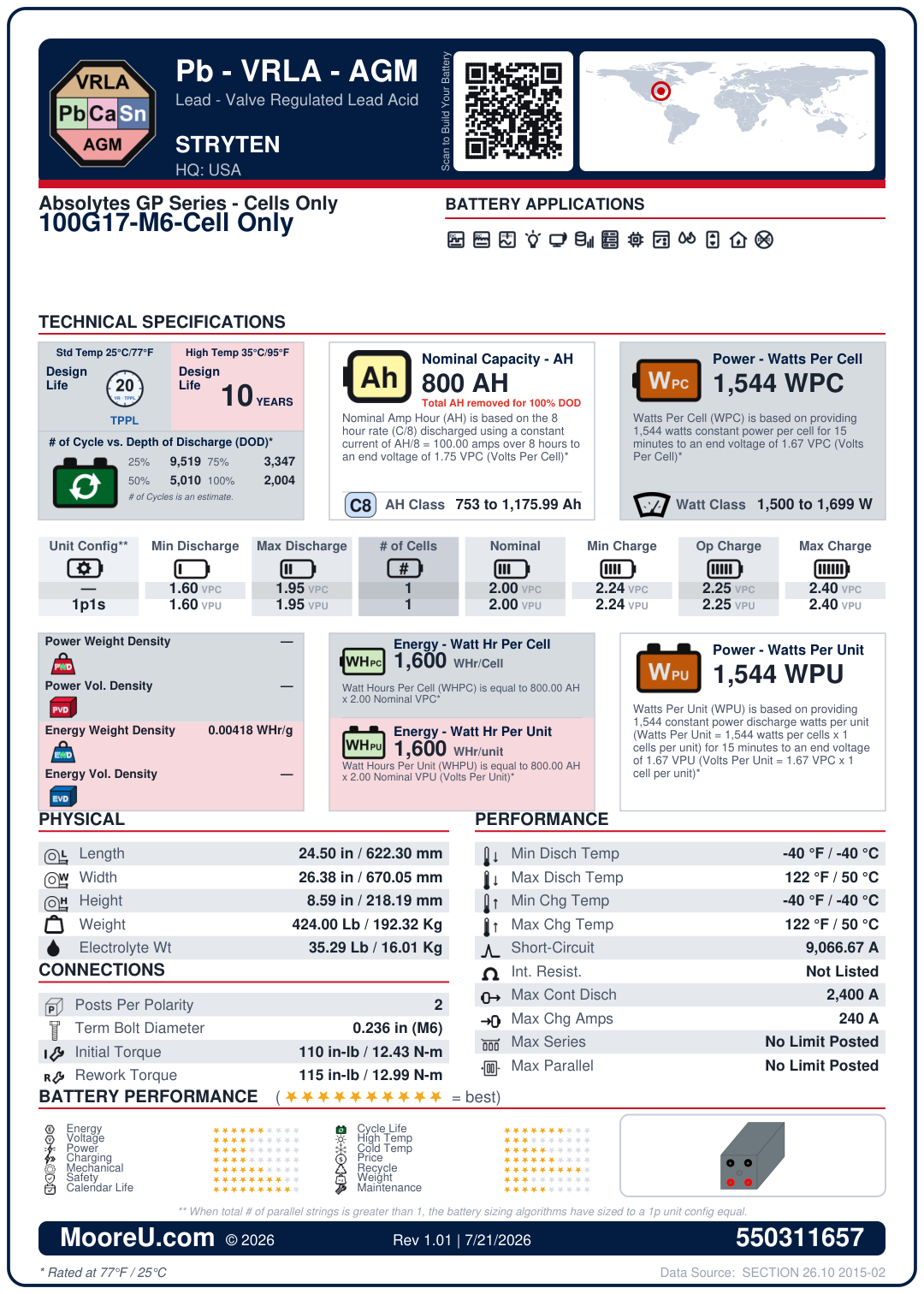

Front of card

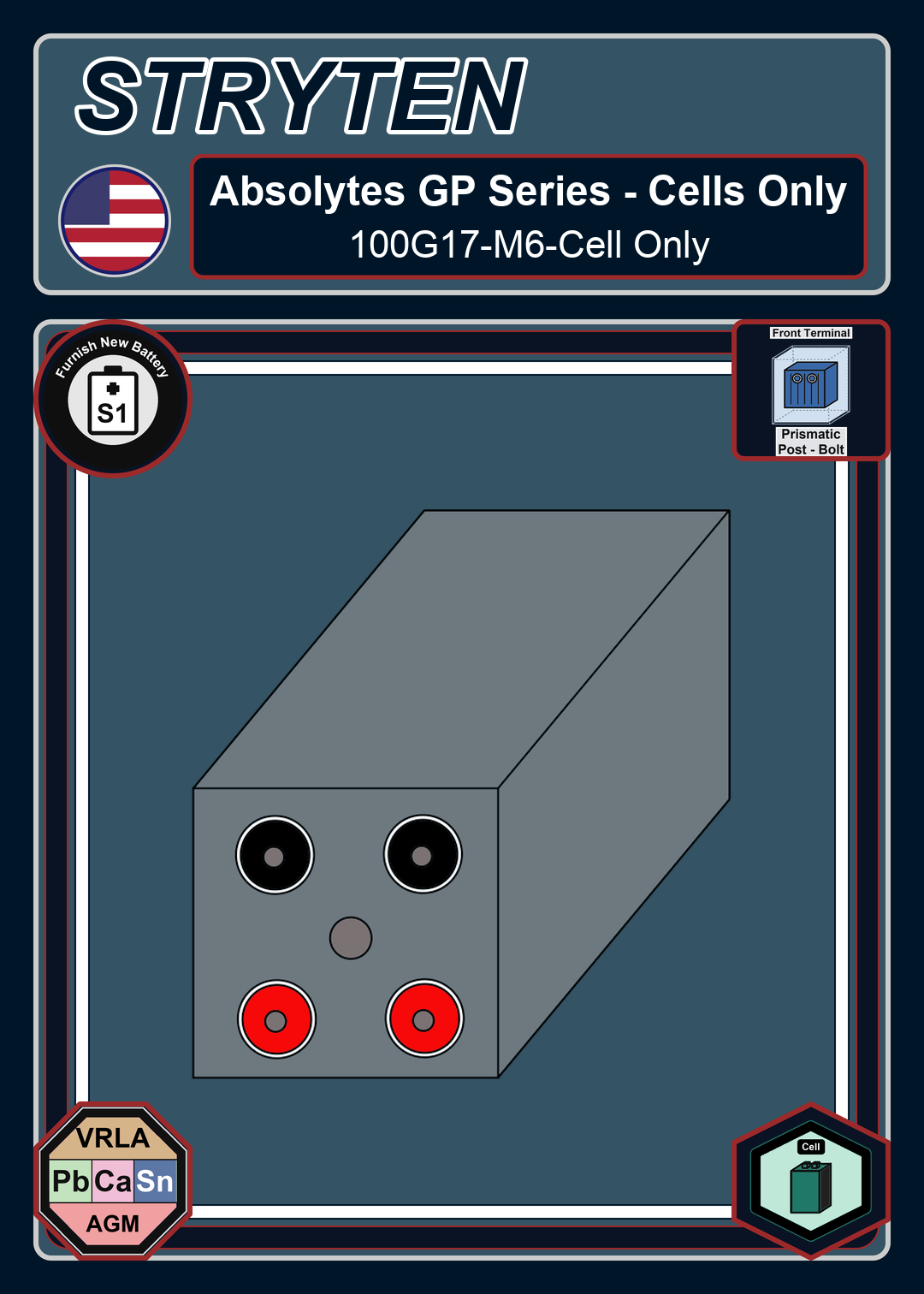

Back of card
Furnish New Battery EXide GNB Absolyte GP Series 1 100G17 M6 Cell Only
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery EXide GNB Absolyte GP Series 1 100G17 M6 Cell Only
$667.98
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery EXide GNB Absolyte GP Series 1 100G17 M6 Cell Only
| Battery Model | EXide GNB Absolyte GP Series 3 100G17 M6 |
|---|---|
| Adjustment | 8 |
| AH Per String | 800 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 50°C |
| Charge Temp Range | -40°C to 50°C |
| ISC Amps | 9066.67 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 24.5 x 26.38 x 8.59 in |
| Weight | 424 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 2400 Amps |
| Max Charge Amps | 240 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1544 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 35.2889281 lbs |
