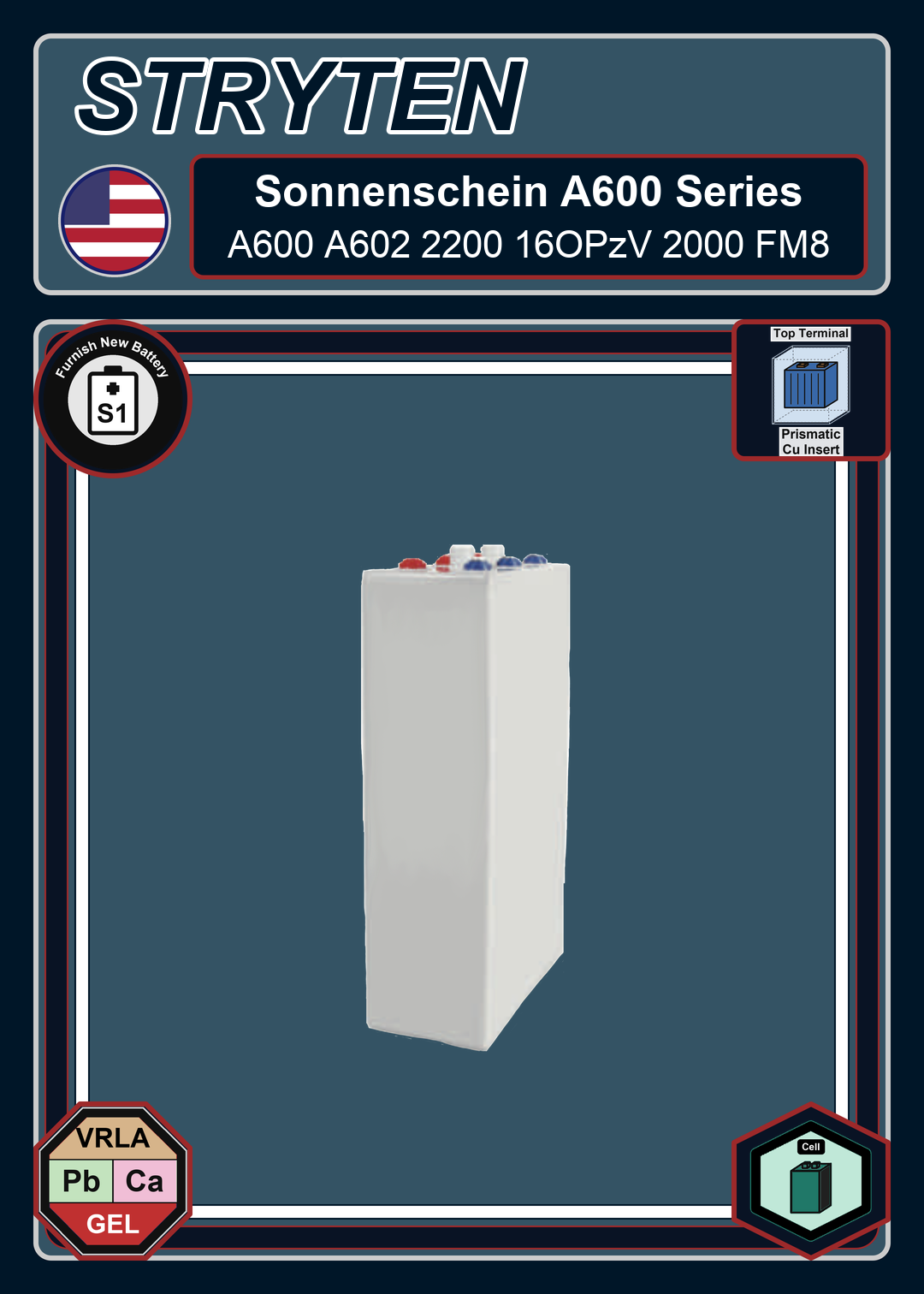

Furnish New Battery Exide Battery Sonnenschein A600 A602 2200 16OPzV 2000 FM8

Name: Furnish_New_Battery_Exide_Battery_Sonnenschein_A600_A602_2200_16OPzV_2000_FM8
Brand: Pb_VLA_Flooded_gt.png
SKU: Furnish_New_Battery_Exide_Battery_Sonnenschein_A600_A602_2200_16OPzV_2000_FM8
Price: 1970.94 USD
Availability: InStock

Technology: Pb_VLA_Flooded_gt.png
Furnish New Battery Exide Battery Sonnenschein A600 A602 2200 16OPzV 2000 FM8

$1,970.94

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery Exide Battery Sonnenschein A600 A602 2200 16OPzV 2000 FM8

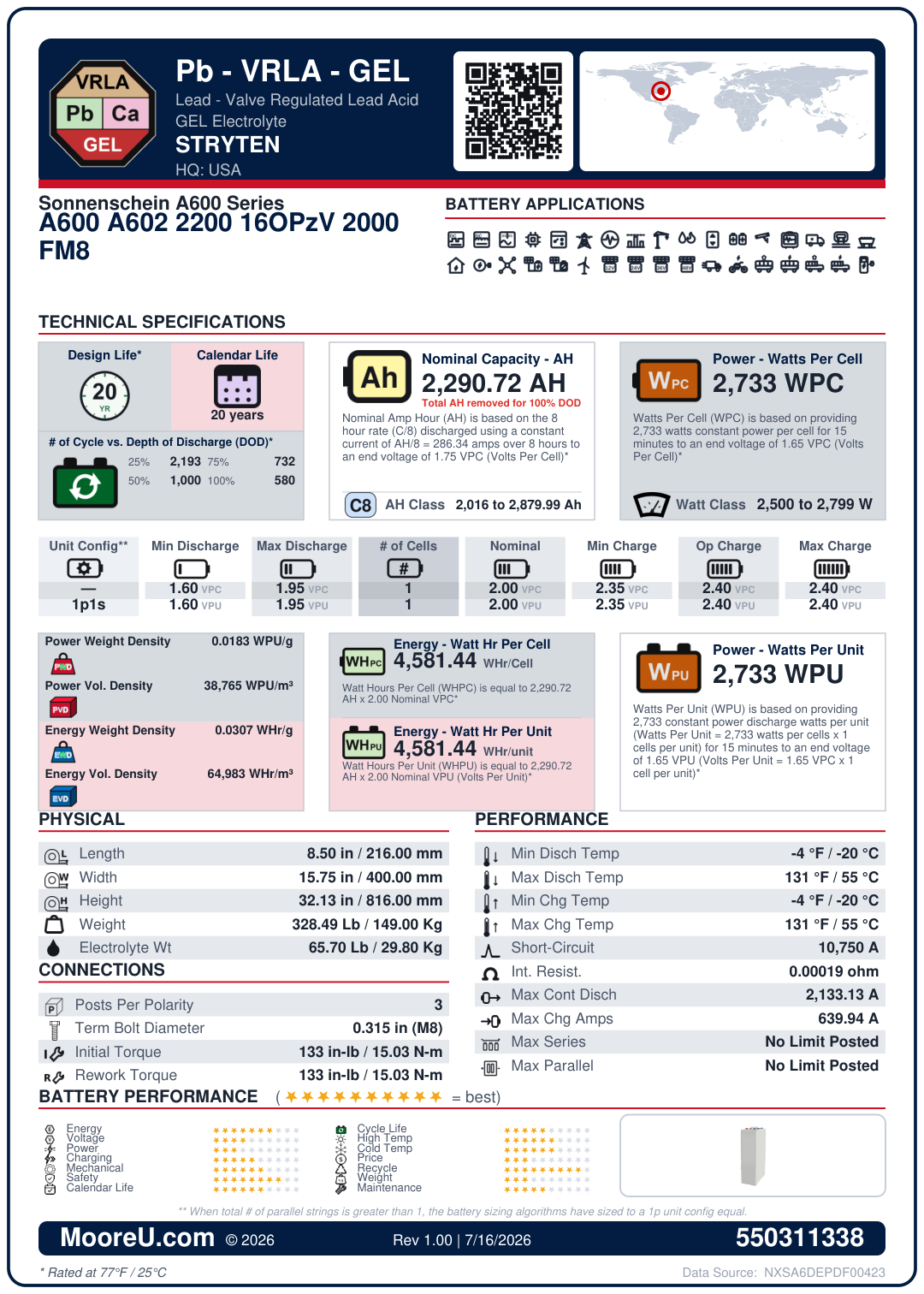

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	Exide Battery Sonnenschein A600 A602 2200 16OPzV 2000 FM8
Adjustment	1
AH Per String	2290.72
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	1
Nominal VPC	2
Model KWH	5
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	10750
Internal Resistance	0.00019 Ohms
Dimensions (L x W x H)	8.5039416 x 15.74804 x 32.1260016 in
Weight	328.48838 lbs
Number of Posts	3
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	2133.13 Amps
Max Charge Amps	639.939 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	2733
Watts Per Cell Rating	15 min @ 1.65 VPC
Weight of Electrolyte	65.697676 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Rack System 0147 U 0000 IND O02 03 228 04a 04 055 04 055 15 354 165 04n 22 677 10 826 33 543 027 21 870 75 000 0425 05 2 0 440 3RP Light Gray 233 26 4 431 856 White	Battery Rack ID = 147, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 165, Model Max = 04n = OPzS2-3000, Max Model Max Uni	19.000 x 21.870 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0147 U 0000 IND O02 03 240 04a 04 055 04 055 15 354 174 04n 22 677 10 826 33 543 030 21 870 75 000 0440 05 2 0 440 3RP Light Gray 245 26 4 454 894 White	Battery Rack ID = 147, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 174, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 21.870 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 192 04a 04 055 04 055 15 354 092 04n 22 677 10 826 33 543 016 24 370 13 690 0223 05 2 0 440 3RP Light Gray 197 29 4 399 622 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 92, Model Max = 04n = OPzS2-3000, Max Model Max Unit	16.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 204 04a 04 055 04 055 15 354 098 04n 22 677 10 826 33 543 016 24 370 13 690 0233 05 2 0 440 3RP Light Gray 209 29 4 423 656 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 98, Model Max = 04n = OPzS2-3000, Max Model Max Unit	17.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 216 04a 04 055 04 055 15 354 104 04n 22 677 10 826 33 543 018 24 370 13 690 0243 05 2 0 440 3RP Light Gray 221 29 4 447 690 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 104, Model Max = 04n = OPzS2-3000, Max Model Max Uni	18.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 228 04a 04 055 04 055 15 354 110 04n 22 677 10 826 33 543 018 24 370 13 690 0264 06 2 0 440 3RP Light Gray 233 29 4 472 736 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 110, Model Max = 04n = OPzS2-3000, Max Model Max Uni	19.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 240 04a 04 055 04 055 15 354 116 04n 22 677 10 826 33 543 020 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 116, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 192 04a 04 055 04 055 15 354 138 04n 22 677 10 826 33 543 024 37 620 18 690 0307 04 2 0 440 3RP Light Gray 197 42 4 579 886 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 192, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 138, Model Max = 04n = OPzS2-3000, Max Model Max Uni	16.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 204 04a 04 055 04 055 15 354 147 04n 22 677 10 826 33 543 024 37 620 18 690 0337 05 2 0 440 3RP Light Gray 209 42 4 614 951 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 204, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 147, Model Max = 04n = OPzS2-3000, Max Model Max Uni	17.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 216 04a 04 055 04 055 15 354 156 04n 22 677 10 826 33 543 027 37 620 18 690 0352 05 2 0 440 3RP Light Gray 221 42 4 649 1001 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 216, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 156, Model Max = 04n = OPzS2-3000, Max Model Max Uni	18.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 228 04a 04 055 04 055 15 354 165 04n 22 677 10 826 33 543 027 37 620 18 690 0367 05 2 0 440 3RP Light Gray 233 42 4 685 1052 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 228, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 165, Model Max = 04n = OPzS2-3000, Max Model Max Uni	19.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 240 04a 04 055 04 055 15 354 174 04n 22 677 10 826 33 543 030 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 240, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 174, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 192 04a 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 31 620 47 000 0546 05 2 0 560 3RP Light Gray 197 36 4 497 1043 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 204 04a 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 31 620 47 000 0608 06 2 0 560 3RP Light Gray 209 36 4 528 1136 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 216 04a 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 31 620 47 000 0630 06 2 0 560 3RP Light Gray 221 36 4 558 1188 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 228 04a 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 31 620 47 000 0652 06 2 0 560 3RP Light Gray 233 36 4 588 1240 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 240 04a 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 31 620 47 000 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0170 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 12 000 11 190 0125 05 2 0 560 3RP Light Gray 197 17 4 231 356 White	Battery Rack ID = 170, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0170 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 12 000 11 190 0135 05 2 0 560 3RP Light Gray 209 17 4 245 380 White	Battery Rack ID = 170, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0170 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 12 000 11 190 0145 05 2 0 560 3RP Light Gray 221 17 4 259 404 White	Battery Rack ID = 170, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0170 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 12 000 11 190 0155 05 2 0 560 3RP Light Gray 233 17 4 273 428 White	Battery Rack ID = 170, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0170 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 12 000 11 190 0165 05 2 0 560 3RP Light Gray 245 17 4 287 452 White	Battery Rack ID = 170, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 0240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 17 620 43 700 0068 02 2 0 560 3RP Light Gray 245 22 4 382 450 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 17 620 43 700 0260 05 2 0 560 3RP Light Gray 197 22 4 307 567 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 17 620 43 700 0270 05 2 0 560 3RP Light Gray 209 22 4 326 596 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 17 620 43 700 0278 05 2 0 560 3RP Light Gray 221 22 4 344 622 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 17 620 43 700 0290 05 2 0 560 3RP Light Gray 233 22 4 363 653 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 17 620 43 700 0299 05 2 0 560 3RP Light Gray 245 22 4 382 681 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0172 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 17 620 61 000 0380 05 2 0 440 3RP Light Gray 197 22 4 307 687 White	Battery Rack ID = 172, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0172 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 17 620 61 000 0395 05 2 0 440 3RP Light Gray 209 22 4 326 721 White	Battery Rack ID = 172, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0172 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 17 620 61 000 0410 05 2 0 440 3RP Light Gray 221 22 4 344 754 White	Battery Rack ID = 172, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0172 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 17 620 61 000 0425 05 2 0 440 3RP Light Gray 233 22 4 363 788 White	Battery Rack ID = 172, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0172 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 17 620 61 000 0440 05 2 0 440 3RP Light Gray 245 22 4 382 822 White	Battery Rack ID = 172, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 24 370 13 690 0223 05 2 0 440 3RP Light Gray 197 29 4 399 622 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 24 370 13 690 0233 05 2 0 440 3RP Light Gray 209 29 4 423 656 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 24 370 13 690 0243 05 2 0 440 3RP Light Gray 221 29 4 447 690 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 24 370 13 690 0264 06 2 0 440 3RP Light Gray 233 29 4 472 736 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0145 U 0000 IND O02 01 192 04a 04 055 04 055 15 354 046 04n 22 677 10 826 33 543 008 12 000 11 190 0125 05 2 0 440 3RP Light Gray 197 17 4 231 356 White	Battery Rack ID = 145, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 01_1_tier, Total Length = 192, Number Row = 1, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 46, Model Max = 04n = OPzS2-3000, Max Model Max Unit	16.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0145 U 0000 IND O02 01 204 04a 04 055 04 055 15 354 049 04n 22 677 10 826 33 543 008 12 000 11 190 0135 05 2 0 440 3RP Light Gray 209 17 4 245 380 White	Battery Rack ID = 145, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 01_1_tier, Total Length = 204, Number Row = 1, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 49, Model Max = 04n = OPzS2-3000, Max Model Max Unit	17.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0145 U 0000 IND O02 01 216 04a 04 055 04 055 15 354 052 04n 22 677 10 826 33 543 009 12 000 11 190 0145 05 2 0 440 3RP Light Gray 221 17 4 259 404 White	Battery Rack ID = 145, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 01_1_tier, Total Length = 216, Number Row = 1, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 52, Model Max = 04n = OPzS2-3000, Max Model Max Unit	18.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0145 U 0000 IND O02 01 228 04a 04 055 04 055 15 354 055 04n 22 677 10 826 33 543 009 12 000 11 190 0155 05 2 0 440 3RP Light Gray 233 17 4 273 428 White	Battery Rack ID = 145, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 01_1_tier, Total Length = 228, Number Row = 1, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 55, Model Max = 04n = OPzS2-3000, Max Model Max Unit	19.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0145 U 0000 IND O02 01 240 04a 04 055 04 055 15 354 058 04n 22 677 10 826 33 543 010 12 000 11 190 0165 05 2 0 440 3RP Light Gray 245 17 4 287 452 White	Battery Rack ID = 145, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 01_1_tier, Total Length = 240, Number Row = 1, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 58, Model Max = 04n = OPzS2-3000, Max Model Max Unit	20.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 37 620 18 690 0307 04 2 0 440 3RP Light Gray 197 42 4 579 886 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 37 620 18 690 0337 05 2 0 440 3RP Light Gray 209 42 4 614 951 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 37 620 18 690 0352 05 2 0 440 3RP Light Gray 221 42 4 649 1001 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 37 620 18 690 0367 05 2 0 440 3RP Light Gray 233 42 4 685 1052 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0146 U 0000 IND O02 02 192 04a 04 055 04 055 15 354 092 04n 22 677 10 826 33 543 016 17 620 43 700 0260 05 2 0 560 3RP Light Gray 197 22 4 307 567 White	Battery Rack ID = 146, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 92, Model Max = 04n = OPzS2-3000, Max Model Max Unit	16.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0146 U 0000 IND O02 02 204 04a 04 055 04 055 15 354 098 04n 22 677 10 826 33 543 016 17 620 43 700 0270 05 2 0 560 3RP Light Gray 209 22 4 326 596 White	Battery Rack ID = 146, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 98, Model Max = 04n = OPzS2-3000, Max Model Max Unit	17.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0146 U 0000 IND O02 02 216 04a 04 055 04 055 15 354 104 04n 22 677 10 826 33 543 018 17 620 43 700 0278 05 2 0 560 3RP Light Gray 221 22 4 344 622 White	Battery Rack ID = 146, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 104, Model Max = 04n = OPzS2-3000, Max Model Max Uni	18.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0146 U 0000 IND O02 02 228 04a 04 055 04 055 15 354 110 04n 22 677 10 826 33 543 018 17 620 43 700 0290 05 2 0 560 3RP Light Gray 233 22 4 363 653 White	Battery Rack ID = 146, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 110, Model Max = 04n = OPzS2-3000, Max Model Max Uni	19.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0146 U 0000 IND O02 02 240 04a 04 055 04 055 15 354 116 04n 22 677 10 826 33 543 020 17 620 43 700 0299 05 2 0 560 3RP Light Gray 245 22 4 382 681 White	Battery Rack ID = 146, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 116, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 17.620 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 31 620 43 500 0546 05 2 0 560 3RP Light Gray 197 36 4 497 1043 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 31 620 43 500 0608 06 2 0 560 3RP Light Gray 209 36 4 528 1136 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 31 620 43 500 0630 06 2 0 560 3RP Light Gray 221 36 4 558 1188 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 31 620 43 500 0652 06 2 0 560 3RP Light Gray 233 36 4 588 1240 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 31 620 43 500 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0147 U 0000 IND O02 03 192 04a 04 055 04 055 15 354 138 04n 22 677 10 826 33 543 024 21 870 75 000 0380 05 2 0 440 3RP Light Gray 197 26 4 365 745 White	Battery Rack ID = 147, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 138, Model Max = 04n = OPzS2-3000, Max Model Max Uni	16.000 x 21.870 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0147 U 0000 IND O02 03 204 04a 04 055 04 055 15 354 147 04n 22 677 10 826 33 543 024 21 870 75 000 0395 05 2 0 440 3RP Light Gray 209 26 4 387 782 White	Battery Rack ID = 147, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 147, Model Max = 04n = OPzS2-3000, Max Model Max Uni	17.000 x 21.870 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0147 U 0000 IND O02 03 216 04a 04 055 04 055 15 354 156 04n 22 677 10 826 33 543 027 21 870 75 000 0410 05 2 0 440 3RP Light Gray 221 26 4 409 819 White	Battery Rack ID = 147, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 156, Model Max = 04n = OPzS2-3000, Max Model Max Uni	18.000 x 21.870 x 33.54 in	2 units
