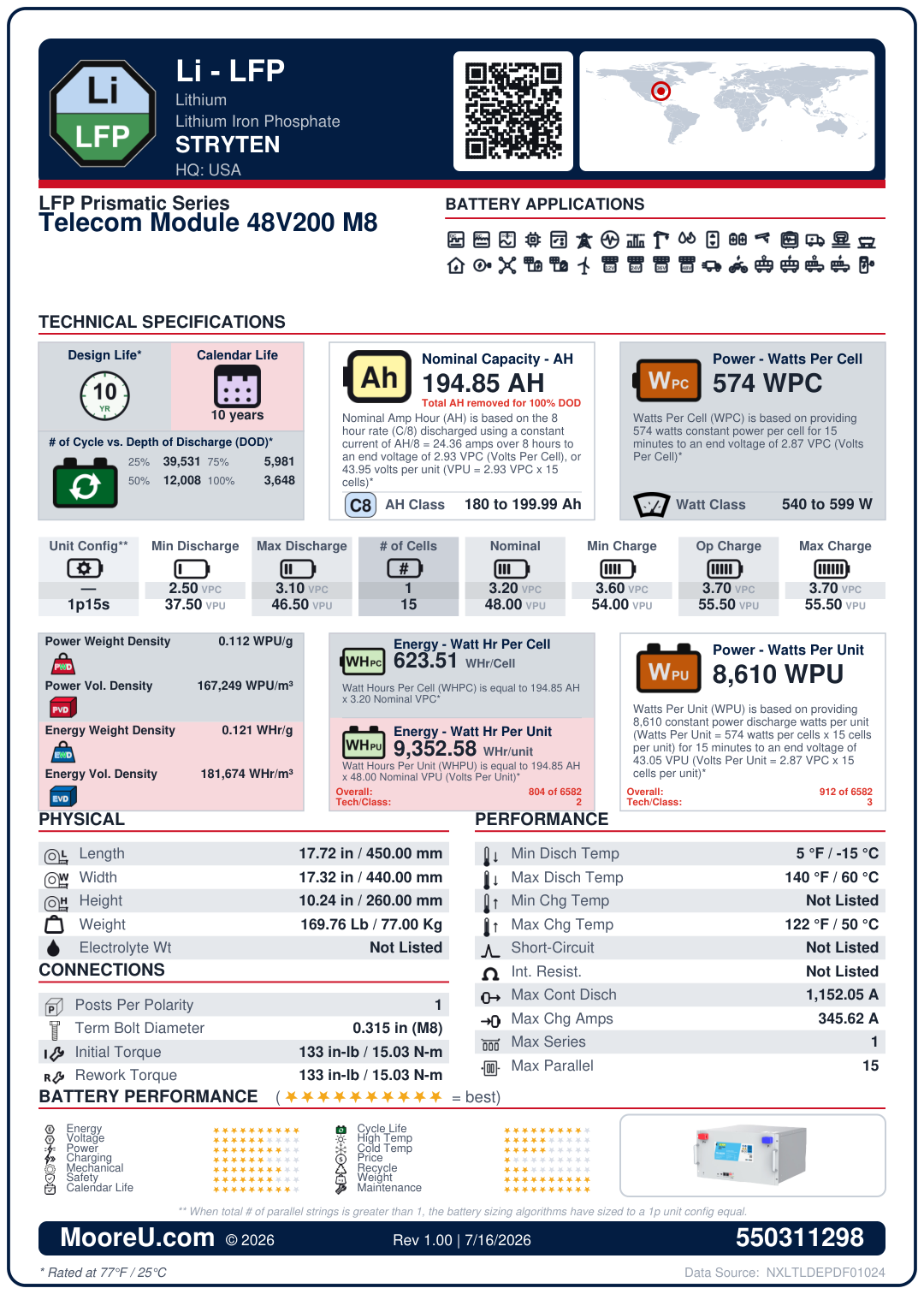

Back of card
Furnish New Battery Exide Battery LFP Solition Telecom Module 48V200 M8
Technology: Pb_VRLA_AGM.pngFurnish New Battery Exide Battery LFP Solition Telecom Module 48V200 M8
$848.80
Material Value Cost Due from Customer.
Furnish New Battery Exide Battery LFP Solition Telecom Module 48V200 M8
| Battery Model | Exide Battery LFP Solition Telecom Module 48V200 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 194.8454226 |
| AH Per String Rating | 8 hr @ 2.93 VPC |
| Cells Per Unit | 15 |
| Nominal VPC | 3.2 |
| Model KWH | 9 |
| Charge VPC | 3.75 (Min: 3.65, Max: 3.75) |
| Discharge VPC | Min: 2.8, Max: 3.09 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 17.716545 x 17.322844 x 10.236226 in |
| Weight | 169.75574 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 1152.051557 Amps |
| Max Charge Amps | 345.6154671 Amps |
| Max In Series / Parallel | 1 / 15 |
| Watts Per Cell (15min 1.67) | 574 |
| Watts Per Cell Rating | 15 min @ 2.87 VPC |
| Weight of Electrolyte | 0 lbs |
