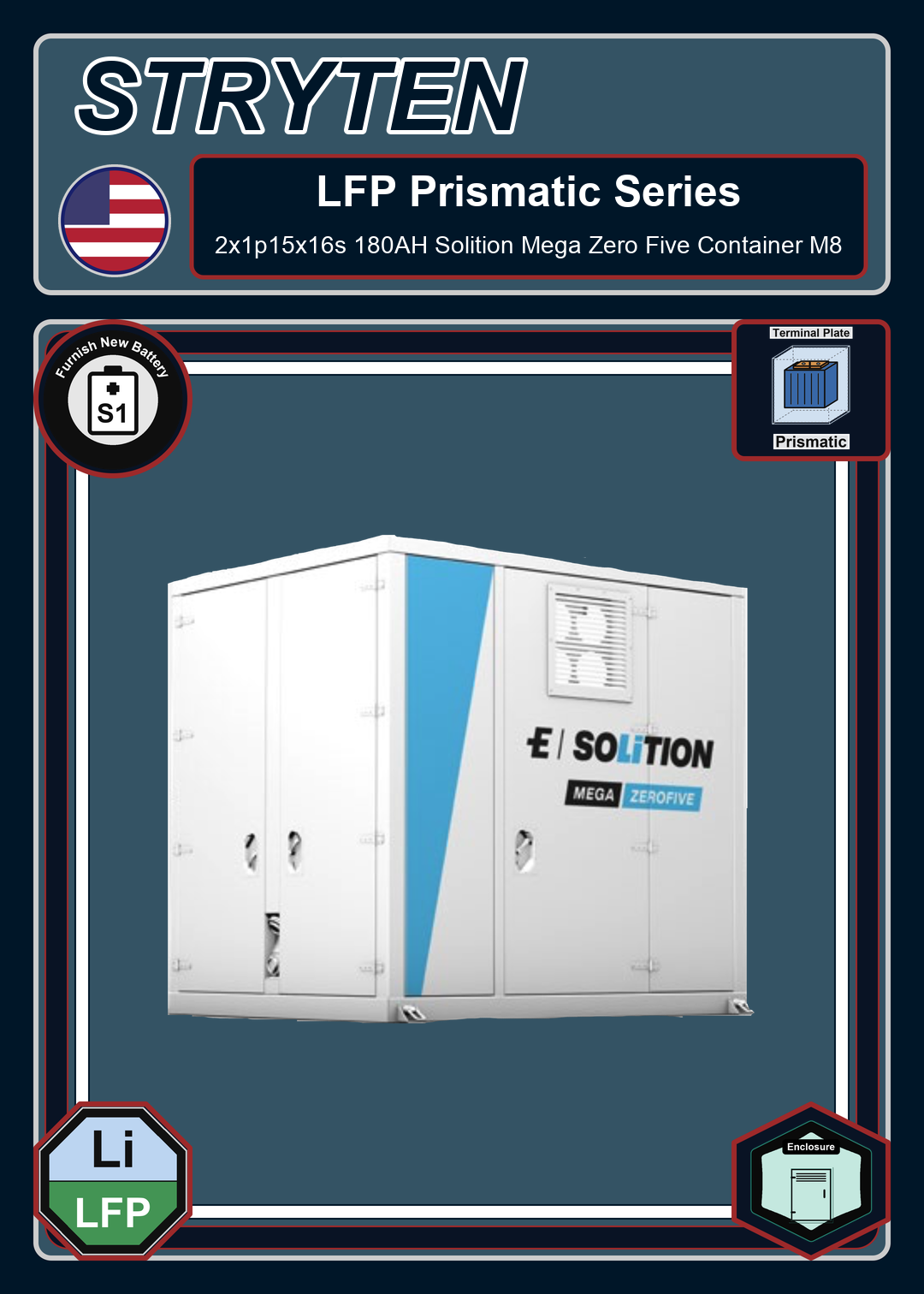

Furnish New Battery Exide Battery LFP Prismatic 2x1p15x16s 180AH Solition Mega Zero Five Container M8
Technology: Pb_VRLA_AGM.pngFurnish New Battery Exide Battery LFP Prismatic 2x1p15x16s 180AH Solition Mega Zero Five Container M8
$45,000.00
Material Value Cost Due from Customer.
Furnish New Battery Exide Battery LFP Prismatic 2x1p15x16s 180AH Solition Mega Zero Five Container M8

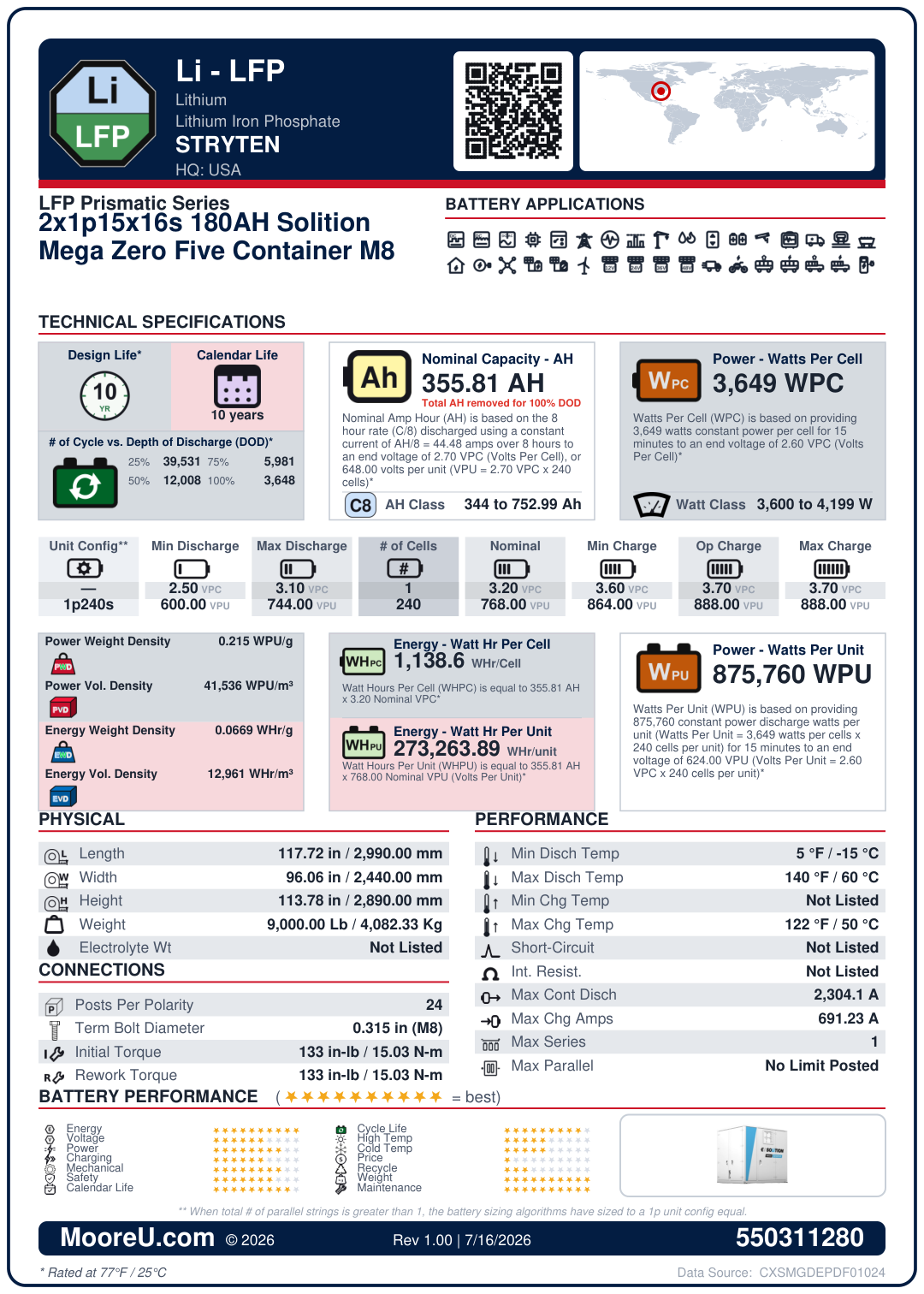

| Battery Model | Exide Battery LFP Prismatic 2x1p15x16s 180AH Solition Mega Zero Five Container M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 355.8123579 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 240 |
| Nominal VPC | 3.2 |
| Model KWH | 273 |
| Charge VPC | 3.75 (Min: 3.65, Max: 3.75) |
| Discharge VPC | Min: 2.5, Max: 3.05 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 117.716599 x 96.063044 x 113.779589 in |
| Weight | 9000 lbs |
| Number of Posts | 24 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 2304.103114 Amps |
| Max Charge Amps | 691.2309341 Amps |
| Max In Series / Parallel | 1 / 0 |
| Watts Per Cell (15min 1.67) | 3649 |
| Watts Per Cell Rating | 15 min @ 2.6 VPC |
| Weight of Electrolyte | 0 lbs |
