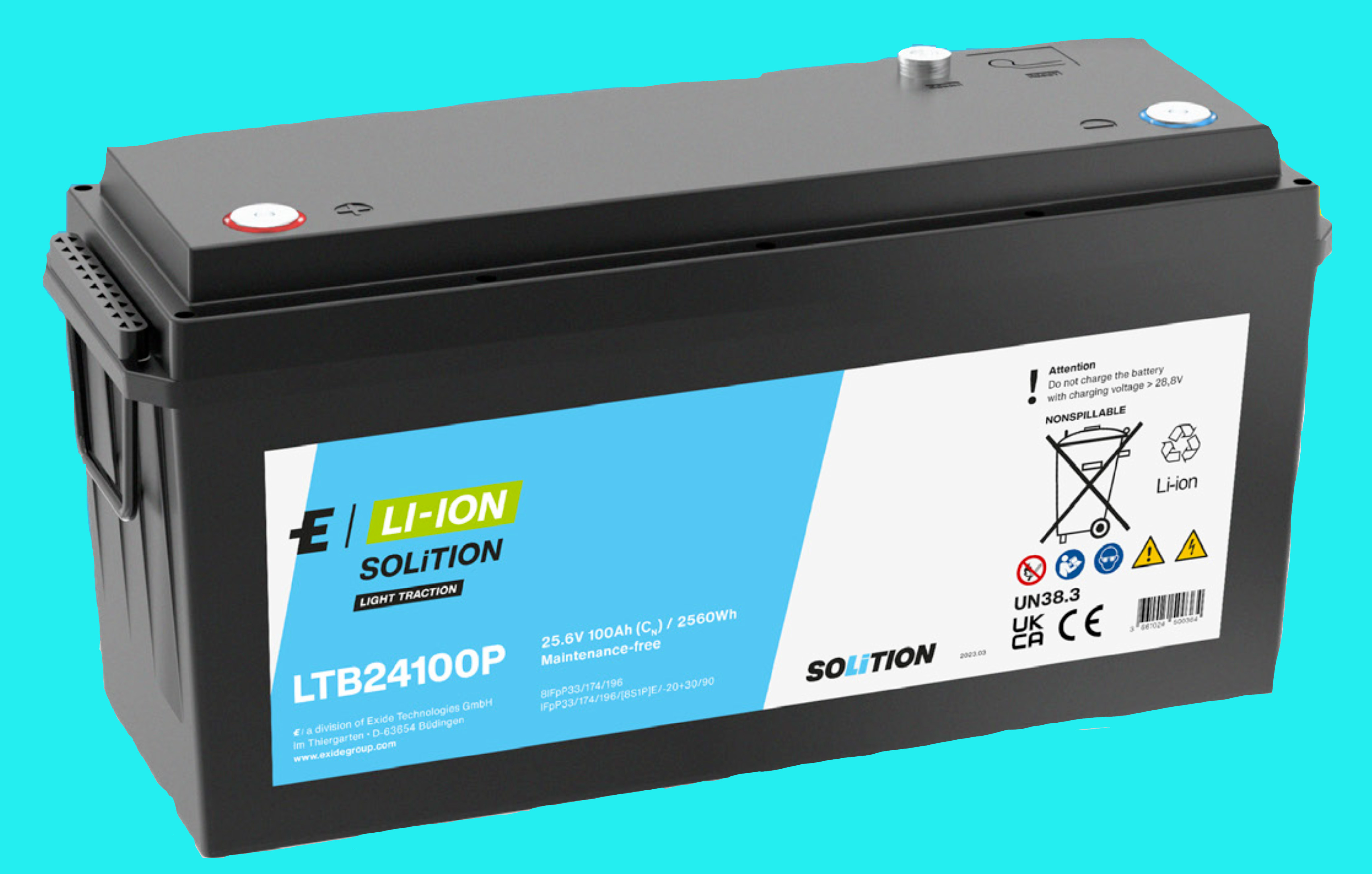

Furnish New Battery Exide Battery LFP Solition Light Traction 1p8s 100AH Unit M8
Technology: Lithium_Ion_LFPFurnish New Battery Exide Battery LFP Solition Light Traction 1p8s 100AH Unit M8
$253.55
Material Value Cost Due from Customer.
Furnish New Battery Exide Battery LFP Solition Light Traction 1p8s 100AH Unit M8
| Battery Model | Exide Battery LFP Solition Light Traction 1p8s 100AH Unit M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 98.83676609 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 8 |
| Nominal VPC | 3.2 |
| Model KWH | 3 |
| Charge VPC | 3.75 (Min: 3.65, Max: 3.75) |
| Discharge VPC | Min: 2.5, Max: 3.05 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | 0°C to 45°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 19.8819005 x 6.7716572 x 9.7244147 in |
| Weight | 50.70626 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 80 Amps |
| Max Charge Amps | 80 Amps |
| Max In Series / Parallel | 1 / 4 |
| Watts Per Cell (15min 1.67) | 208 |
| Watts Per Cell Rating | 15 min @ 2.6 VPC |
| Weight of Electrolyte | 0 lbs |
