Furnish New Battery Exide Battery Classic OCSM 2V 18OCSM 2610LA FM8

Name: Furnish_New_Battery_Exide_Battery_Classic_OCSM_2V_18OCSM_2610LA_FM8
Brand: Pb_VLA_Flooded_gt.png
SKU: Furnish_New_Battery_Exide_Battery_Classic_OCSM_2V_18OCSM_2610LA_FM8
Price: 2354.52 USD
Availability: InStock

Technology: Pb_VLA_Flooded_gt.png
Furnish New Battery Exide Battery Classic OCSM 2V 18OCSM 2610LA FM8

$2,354.52

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery Exide Battery Classic OCSM 2V 18OCSM 2610LA FM8

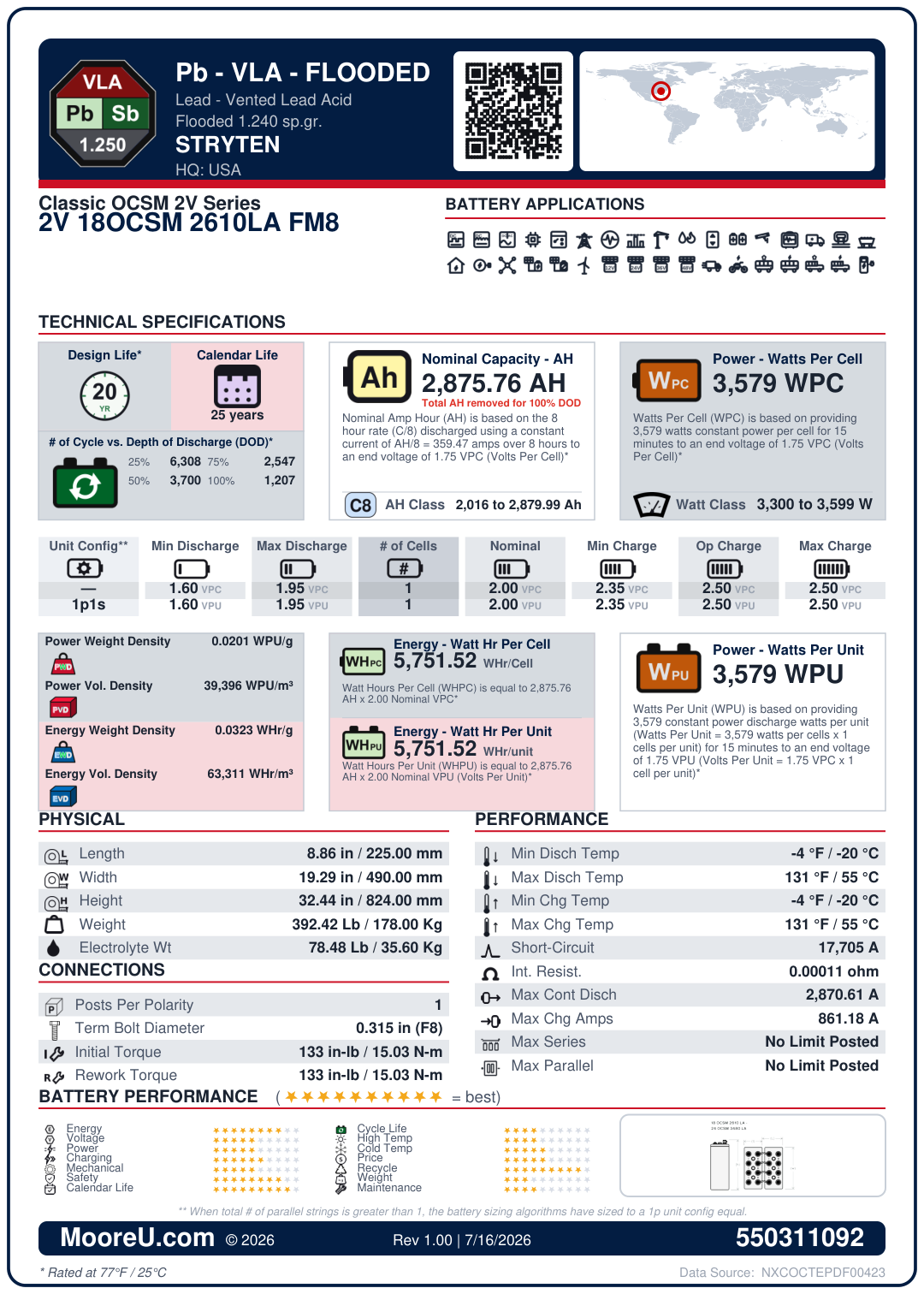

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	Exide Battery Classic OCSM 2V 18OCSM 2610LA FM8
Adjustment	1
AH Per String	2875.76
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	1
Nominal VPC	2
Model KWH	6
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	17705
Internal Resistance	0.00011 Ohms

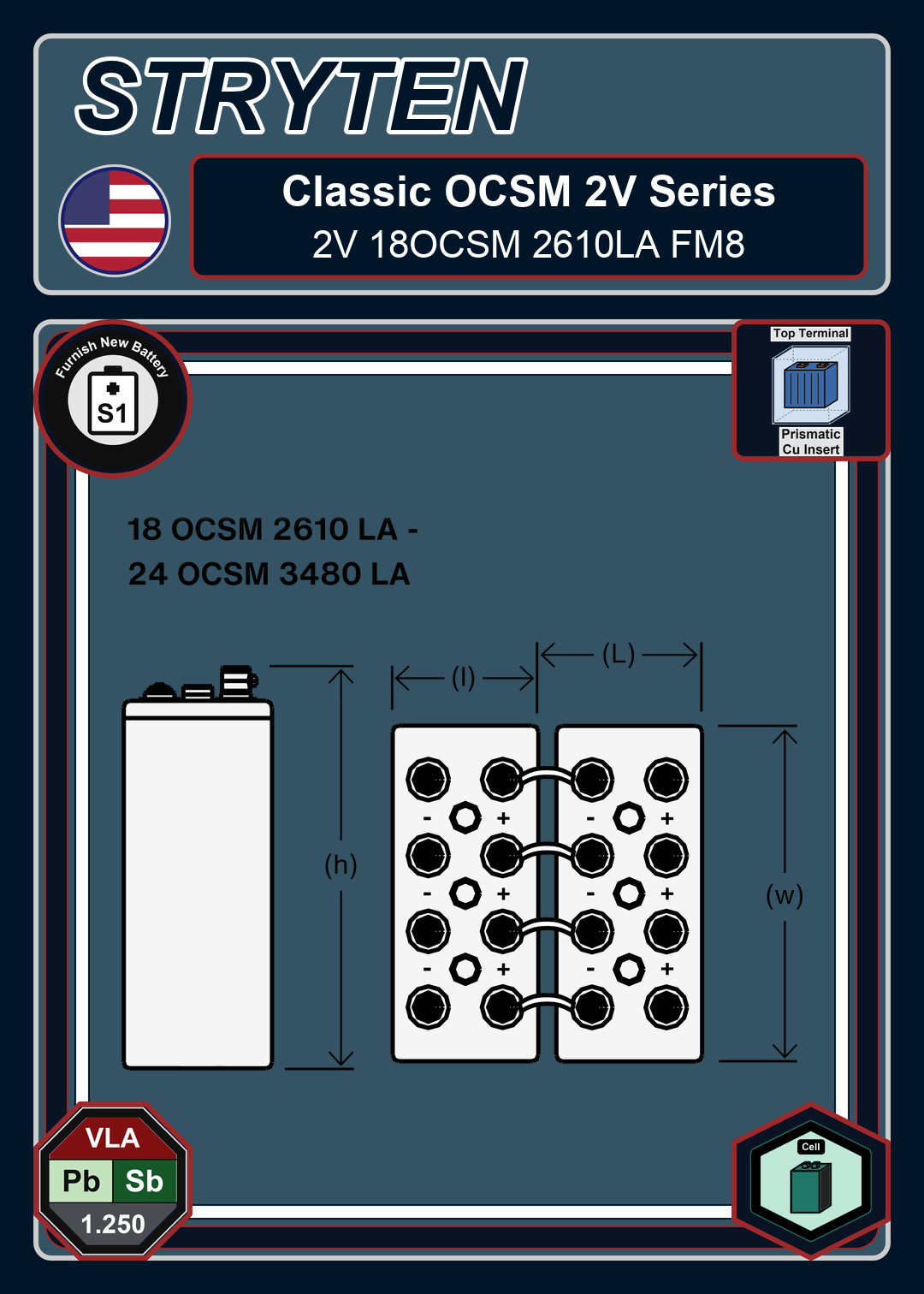

Dimensions (L x W x H)	8.8582725 x 19.291349 x 32.4409624 in
Weight	392.42236 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (F8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	F8
FOB	T
Max Continuous Discharge	2870.61 Amps
Max Charge Amps	861.183 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	3579
Watts Per Cell Rating	15 min @ 1.75 VPC
Weight of Electrolyte	78.484472 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Rack System 0147 U 0000 IND O02 03 240 04a 04 055 04 055 15 354 174 04n 22 677 10 826 33 543 030 21 870 75 000 0440 05 2 0 440 3RP Light Gray 245 26 4 454 894 White	Battery Rack ID = 147, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 174, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 21.870 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 240 04a 04 055 04 055 15 354 116 04n 22 677 10 826 33 543 020 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 116, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 240 04a 04 055 04 055 15 354 174 04n 22 677 10 826 33 543 030 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 240, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 174, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 240 04a 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 31 620 47 000 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 31.620 x 33.54 in	3 units
MooreU com Furnish New Battery Rack System 0170 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 12 000 11 190 0165 05 2 0 560 3RP Light Gray 245 17 4 287 452 White	Battery Rack ID = 170, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 0240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 17 620 43 700 0068 02 2 0 560 3RP Light Gray 245 22 4 382 450 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 17.620 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0171 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 17 620 43 700 0299 05 2 0 560 3RP Light Gray 245 22 4 382 681 White	Battery Rack ID = 171, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 17.620 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0172 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 17 620 61 000 0440 05 2 0 440 3RP Light Gray 245 22 4 382 822 White	Battery Rack ID = 172, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 17.620 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 24.370 x 33.54 in	2 units
MooreU com Furnish New Battery Rack System 0145 U 0000 IND O02 01 240 04a 04 055 04 055 15 354 058 04n 22 677 10 826 33 543 010 12 000 11 190 0165 05 2 0 440 3RP Light Gray 245 17 4 287 452 White	Battery Rack ID = 145, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 01_1_tier, Total Length = 240, Number Row = 1, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 58, Model Max = 04n = OPzS2-3000, Max Model Max Unit	20.000 x 12.000 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 37.620 x 33.54 in	4 units
MooreU com Furnish New Battery Rack System 0146 U 0000 IND O02 02 240 04a 04 055 04 055 15 354 116 04n 22 677 10 826 33 543 020 17 620 43 700 0299 05 2 0 560 3RP Light Gray 245 22 4 382 681 White	Battery Rack ID = 146, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 116, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 17.620 x 33.54 in	1 units
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 31 620 43 500 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 31.620 x 33.54 in	3 units
