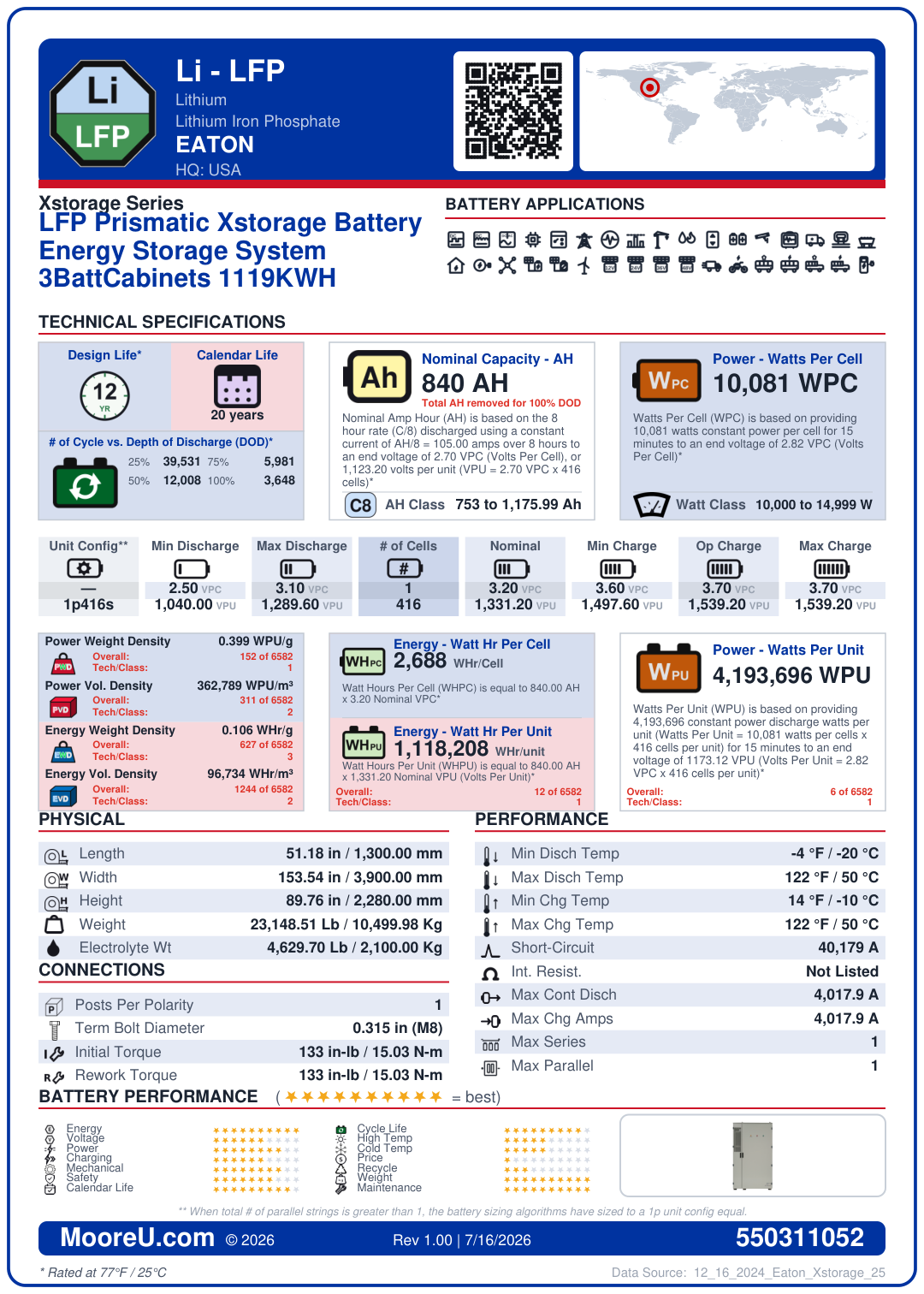

Front of card
Back of card
Furnish New Battery Eaton Battery LFP Prismatic Xstorage Battery Energy Storage System 3BattCabinets 1119KWH 1165Vdc to 1500Vdc M8
Technology: Pb_VRLA_AGM.pngFurnish New Battery Eaton Battery LFP Prismatic Xstorage Battery Energy Storage System 3BattCabinets 1119KWH 1165Vdc to 1500Vdc M8
$115,742.55
Material Value Cost Due from Customer.
Furnish New Battery Eaton Battery LFP Prismatic Xstorage Battery Energy Storage System 3BattCabinets 1119KWH 1165Vdc to 1500Vdc M8
| Battery Model | Eaton Battery LFP Prismatic Xstorage Battery Energy Storage System 3BattCabinets 1119KWH 1165Vdc to 1500Vdc M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 840 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 416 |
| Nominal VPC | 3.2 |
| Model KWH | 1118 |
| Charge VPC | 3.65 (Min: 3.62, Max: 3.65) |
| Discharge VPC | Min: 2.8, Max: 3.1 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 40179 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 51.1811024 x 153.5433012 x 89.76377953 in |
| Weight | 23148.51 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 4017.9 Amps |
| Max Charge Amps | 4017.9 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 10081 |
| Watts Per Cell Rating | 15 min @ 2.82 VPC |
| Weight of Electrolyte | 4629.702 lbs |
