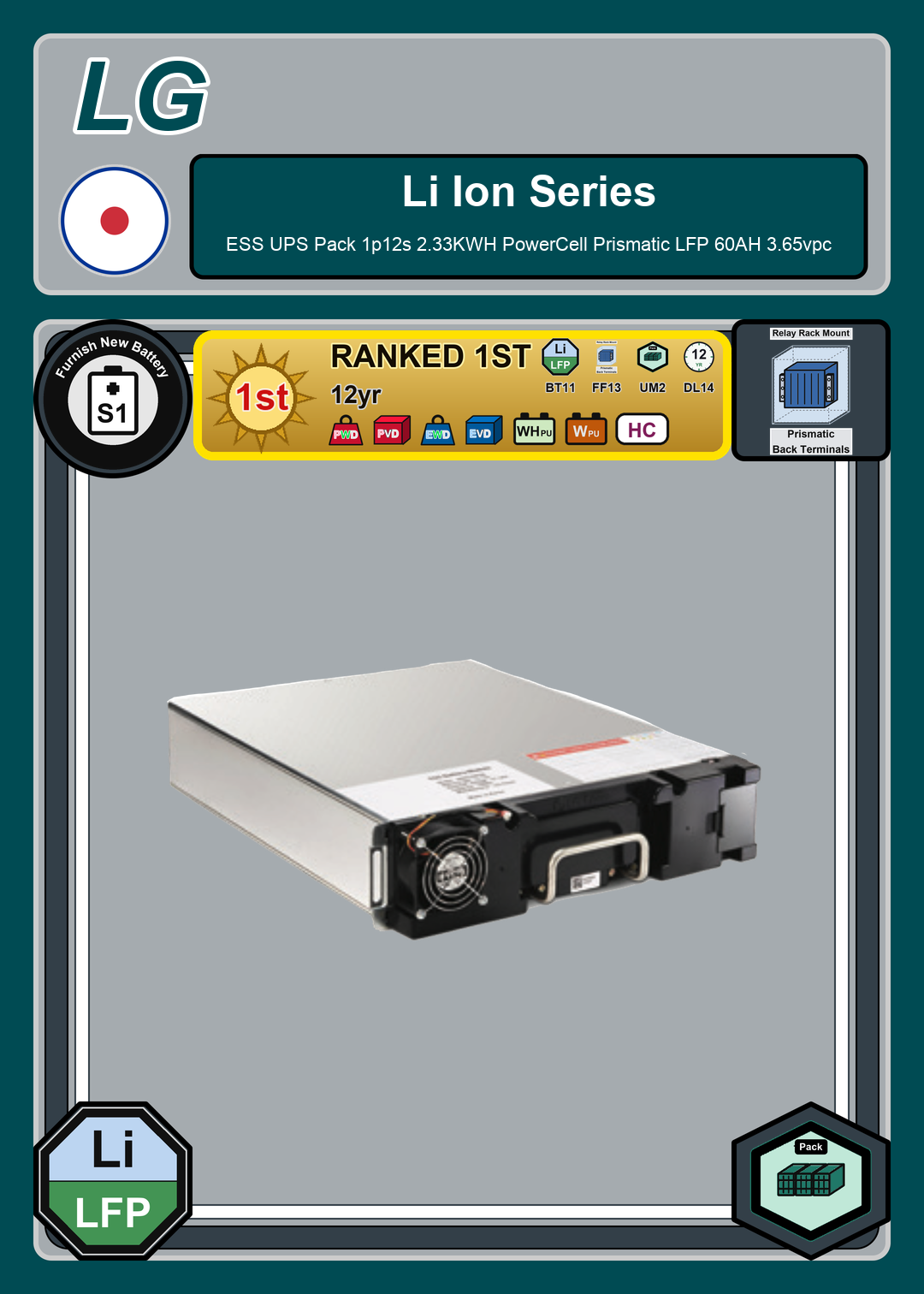

Front of card
Back of card
Furnish New Battery LG Battery ESS UPS Pack 1p12s 2 33KWH PowerCell Prismatic LFP 60AH 3 65vpc
Technology: Pb_VRLA_AGM.pngFurnish New Battery LG Battery ESS UPS Pack 1p12s 2 33KWH PowerCell Prismatic LFP 60AH 3 65vpc
$310.00
Material Value Cost Due from Customer.
Furnish New Battery LG Battery ESS UPS Pack 1p12s 2 33KWH PowerCell Prismatic LFP 60AH 3 65vpc
| Battery Model | LG Battery ESS UPS Pack 1p12s 2 33KWH PowerCell Prismatic LFP 60AH 3 65vpc |
|---|---|
| Adjustment | 1 |
| AH Per String | 60 |
| AH Per String Rating | 8 hr @ 2.5 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.22 |
| Model KWH | 0 |
| Charge VPC | 3.65 (Min: 3.6, Max: 3.65) |
| Discharge VPC | Min: 2.75, Max: 3.15 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | 0°C to 45°C |
| Charge Temp Range | 0°C to 45°C |
| ISC Amps | 1135 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 13.5 x 17.5 x 4.3 in |
| Weight | 62 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 113.5 Amps |
| Max Charge Amps | 113.5 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 304 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 12.4 lbs |
