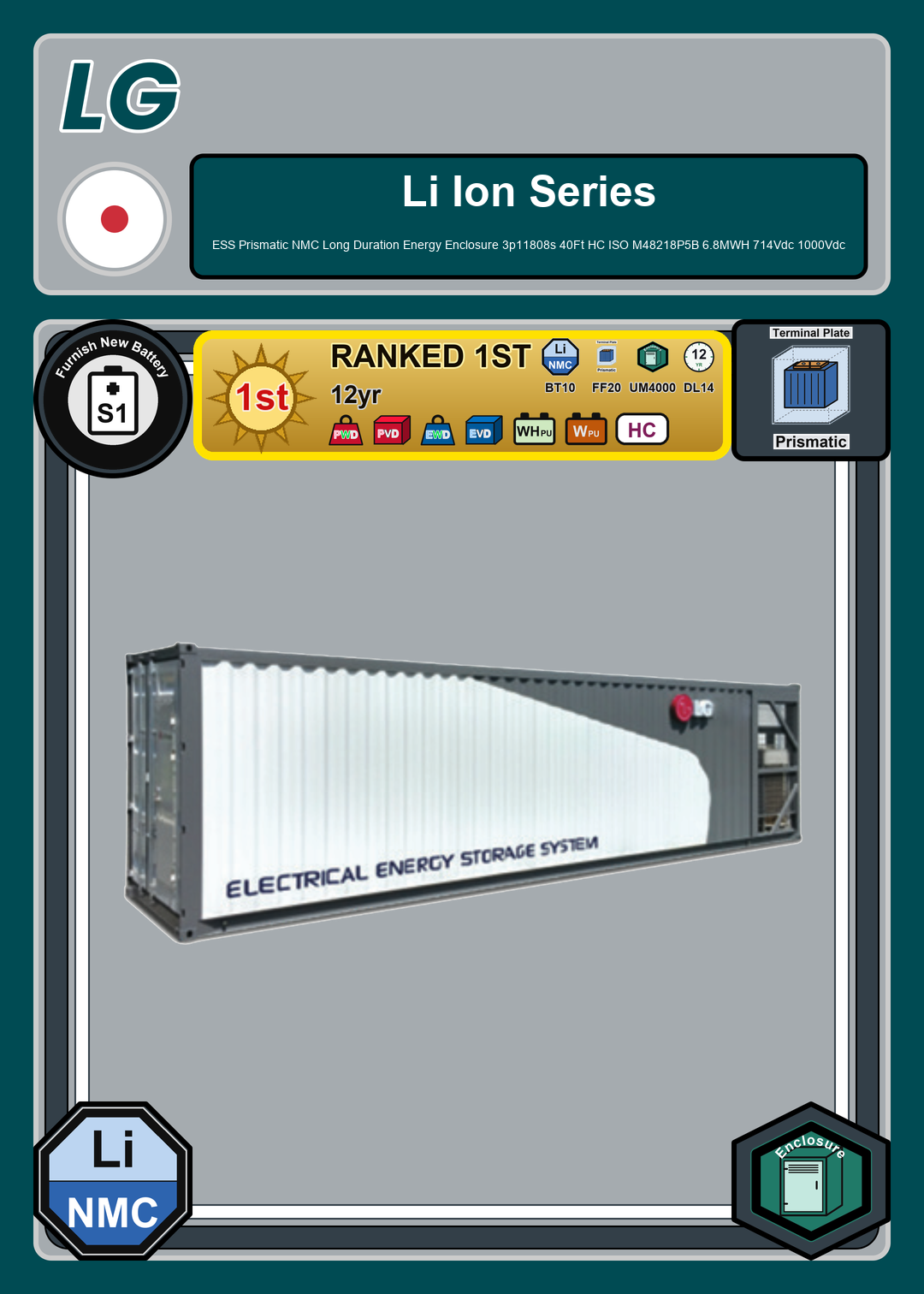

Furnish New Battery LG Battery ESS Prismatic NMC Long Duration Energy Enclosure 3p11808s 40Ft HC ISO M48218P5B 6 8MWH 714Vdc 1000Vdc
Technology: Pb_VRLA_AGM_gt.pngFurnish New Battery LG Battery ESS Prismatic NMC Long Duration Energy Enclosure 3p11808s 40Ft HC ISO M48218P5B 6 8MWH 714Vdc 1000Vdc
$480,000.00
Material Value Cost Due from Customer.
Furnish New Battery LG Battery ESS Prismatic NMC Long Duration Energy Enclosure 3p11808s 40Ft HC ISO M48218P5B 6 8MWH 714Vdc 1000Vdc

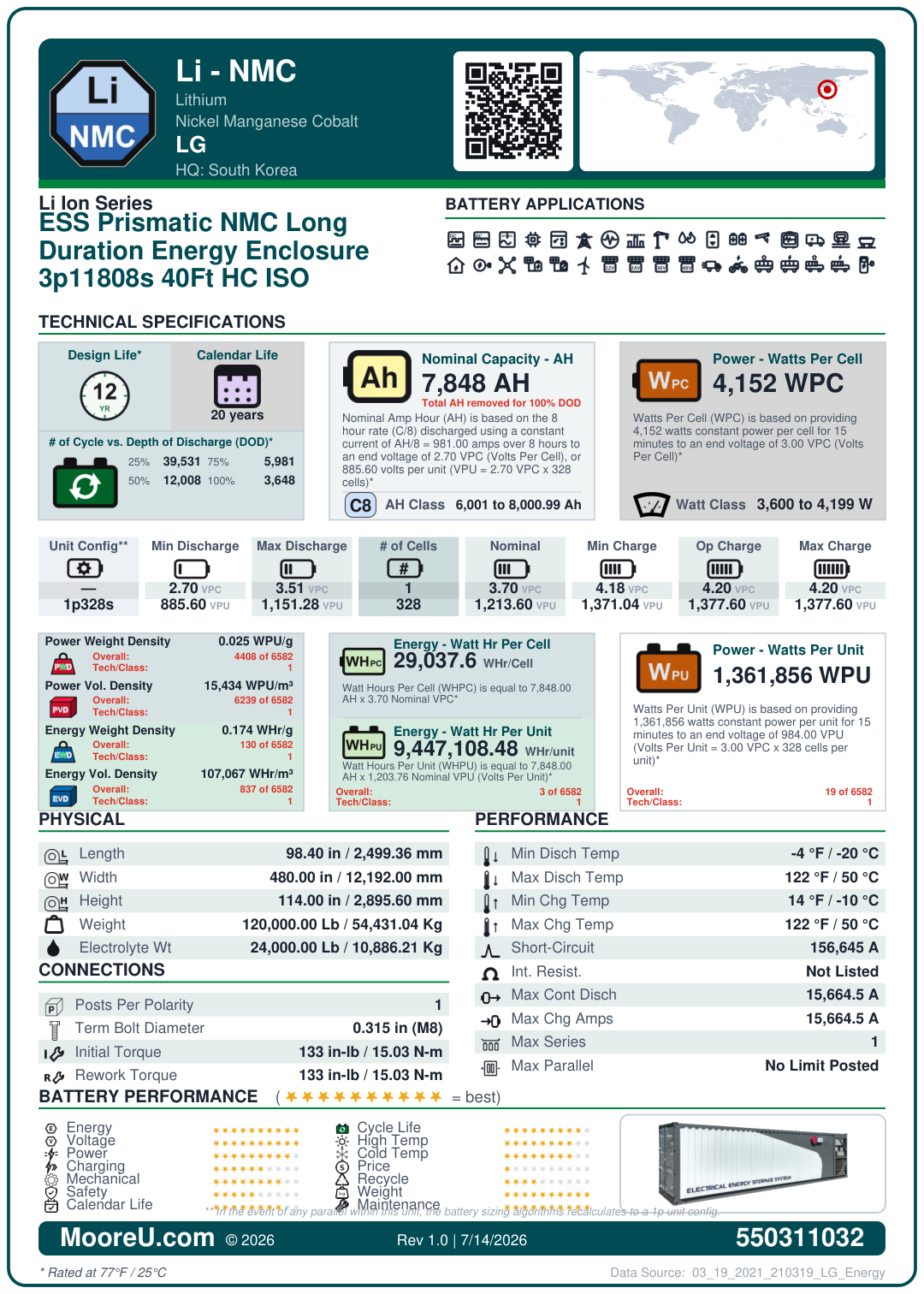

| Battery Model | LG Battery ESS Prismatic NMC Long Duration Energy Enclosure 3p11808s 40Ft HC ISO M48218P5B 6 8MWH 714Vdc 1000Vdc |
|---|---|
| Adjustment | 1 |
| AH Per String | 7848 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 328 |
| Nominal VPC | 3.67 |
| Model KWH | 9447 |
| Charge VPC | 4.2 (Min: 4.1, Max: 4.2) |
| Discharge VPC | Min: 3, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 156645 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 98.4 x 480 x 114 in |
| Weight | 120000 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 15664.5 Amps |
| Max Charge Amps | 15664.5 Amps |
| Max In Series / Parallel | 1 / 0 |
| Watts Per Cell (15min 1.67) | 4152 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 24000 lbs |
