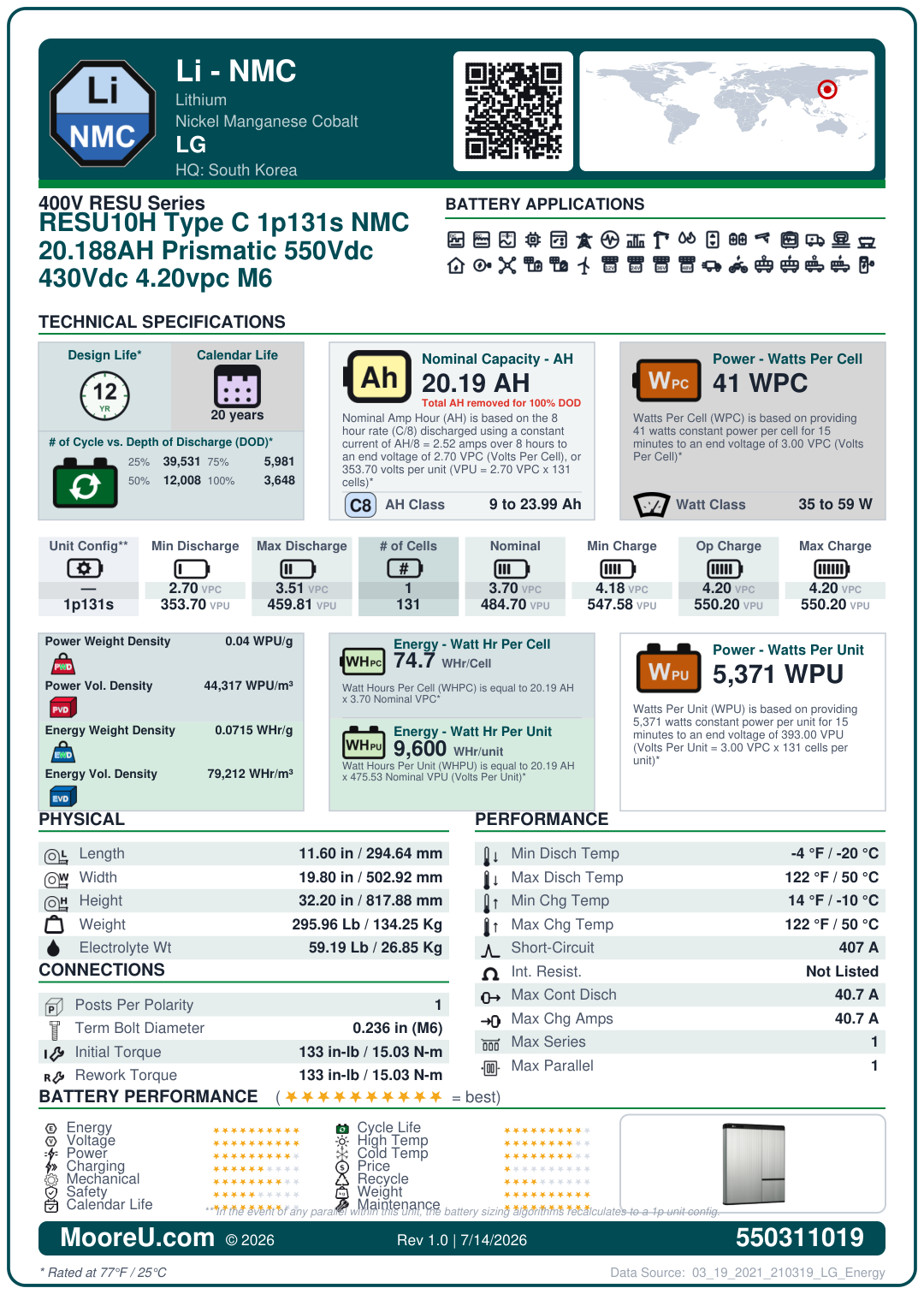

Front of card

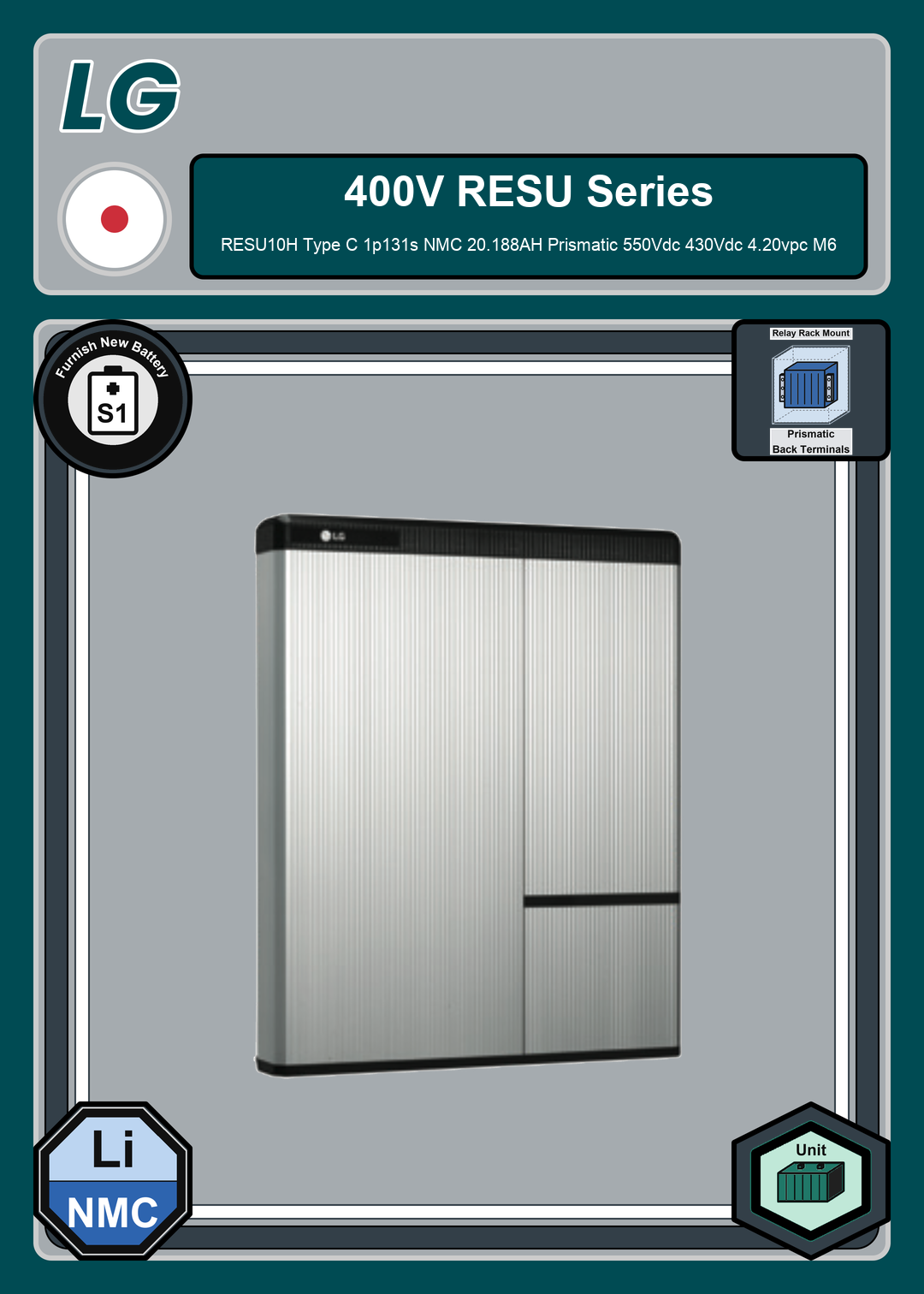

Back of card
Furnish New Battery LG Battery RESU10H Type C 1p131s NMC 20 188AH Prismatic 550Vdc 430Vdc 4 20vpc M6
Technology: Lithium_Ion_NMCFurnish New Battery LG Battery RESU10H Type C 1p131s NMC 20 188AH Prismatic 550Vdc 430Vdc 4 20vpc M6
$1,183.84
Material Value Cost Due from Customer.
Furnish New Battery LG Battery RESU10H Type C 1p131s NMC 20 188AH Prismatic 550Vdc 430Vdc 4 20vpc M6
| Battery Model | LG Battery RESU10H Type C 1p131s NMC 20 188AH Prismatic 550Vdc 430Vdc 4 20vpc M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 20.188 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 131 |
| Nominal VPC | 3.63 |
| Model KWH | 10 |
| Charge VPC | 4.2 (Min: 4.1, Max: 4.2) |
| Discharge VPC | Min: 3.28, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 407 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 11.6 x 19.8 x 32.2 in |
| Weight | 295.962 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 40.7 Amps |
| Max Charge Amps | 40.7 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 41 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 59.1924 lbs |
