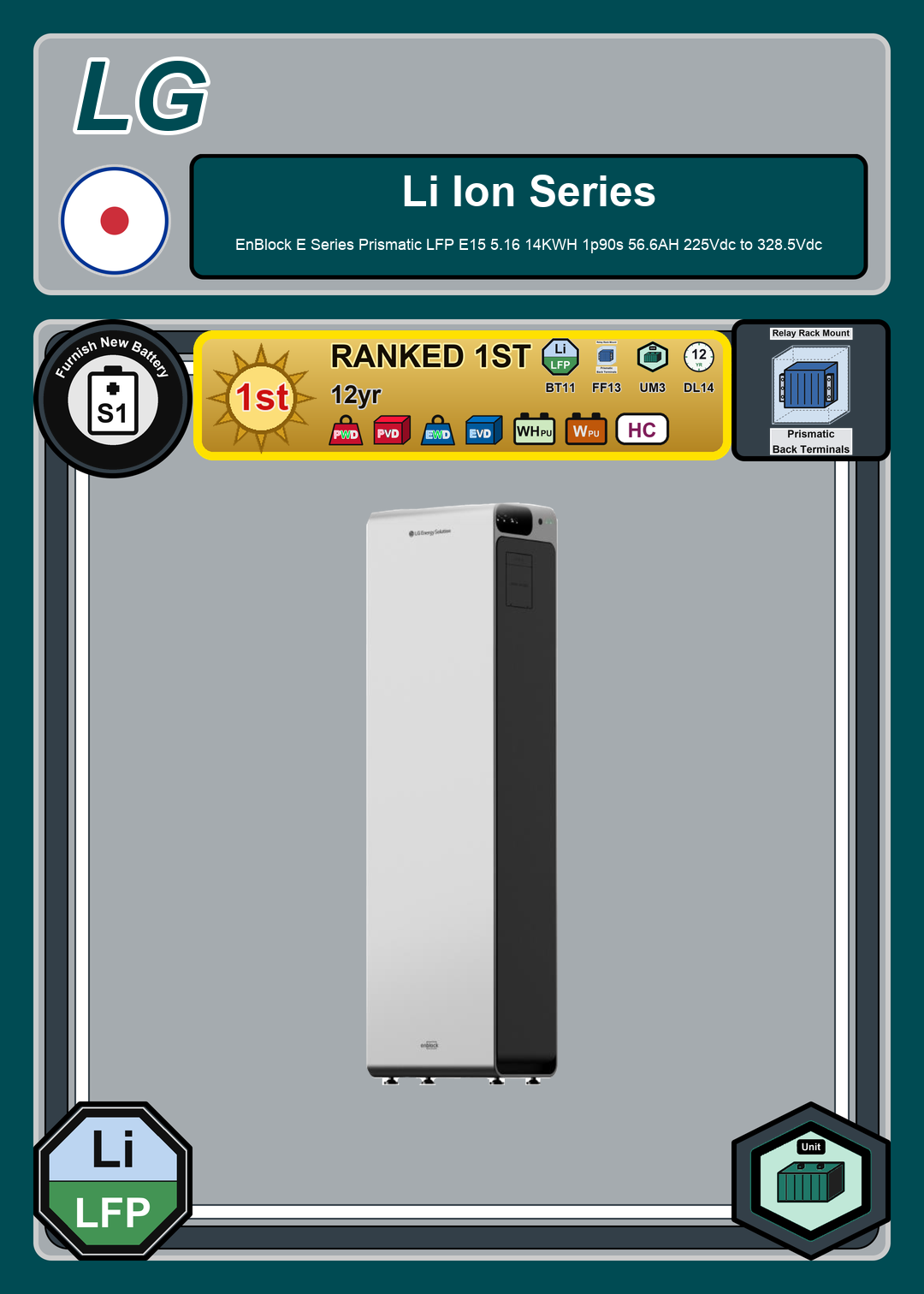

Front of card

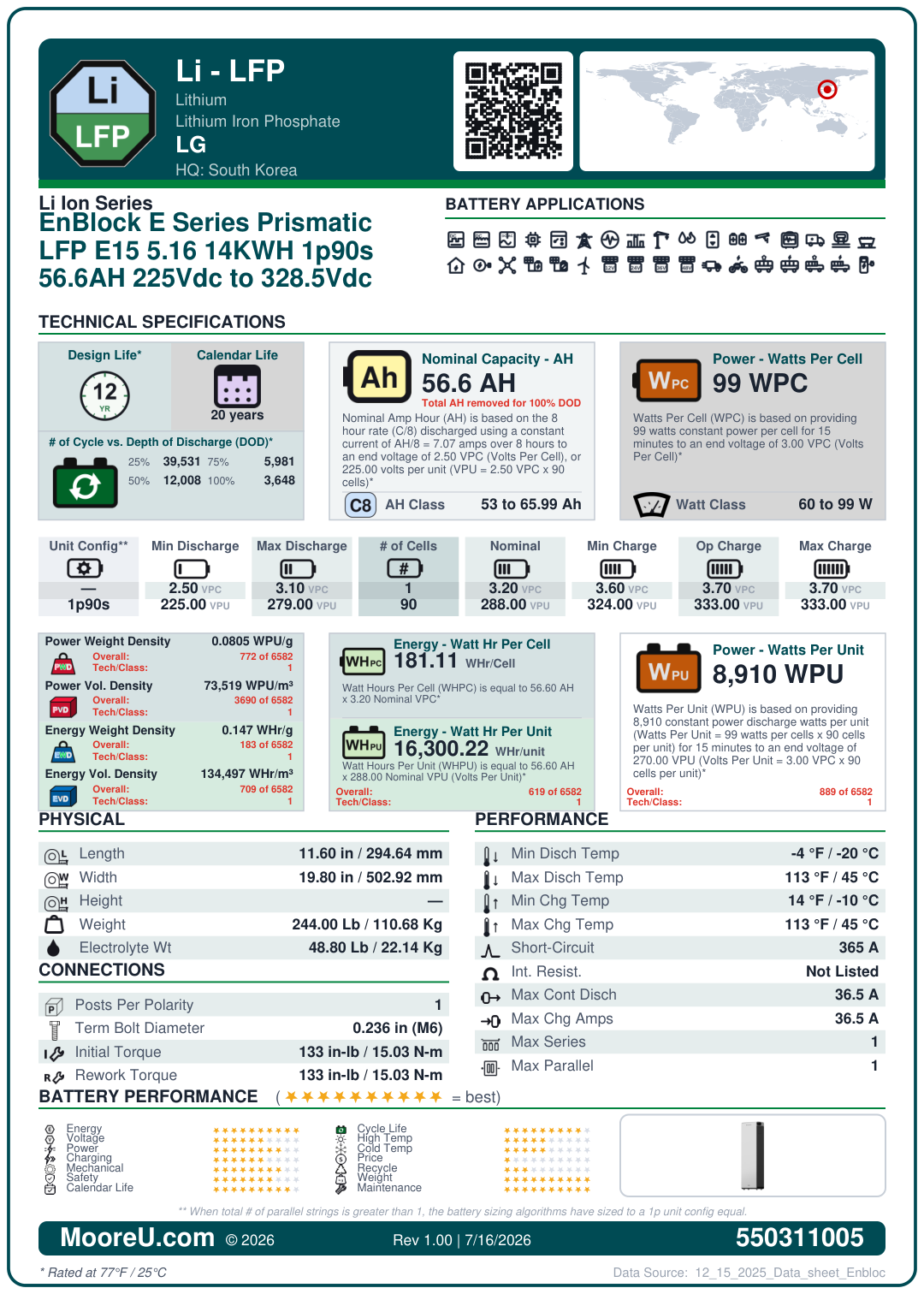

Back of card
Furnish New Battery LG Battery EnBlock E Series Prismatic LFP E15 5 16 14KWH 1p90s 56 6AH 225Vdc to 328 5Vdc
Technology: Pb_VRLA_AGM.pngFurnish New Battery LG Battery EnBlock E Series Prismatic LFP E15 5 16 14KWH 1p90s 56 6AH 225Vdc to 328 5Vdc
$1,220.00
Material Value Cost Due from Customer.
Furnish New Battery LG Battery EnBlock E Series Prismatic LFP E15 5 16 14KWH 1p90s 56 6AH 225Vdc to 328 5Vdc
| Battery Model | LG Battery EnBlock E Series Prismatic LFP E15 5 16 14KWH 1p90s 56 6AH 225Vdc to 328 5Vdc |
|---|---|
| Adjustment | 1 |
| AH Per String | 56.598 |
| AH Per String Rating | 8 hr @ 2.5 VPC |
| Cells Per Unit | 90 |
| Nominal VPC | 3.2 |
| Model KWH | 16 |
| Charge VPC | 3.65 (Min: 3.62, Max: 3.65) |
| Discharge VPC | Min: 2.5, Max: 3.15 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 45°C |
| Charge Temp Range | -10°C to 45°C |
| ISC Amps | 365 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 11.6 x 19.8 x 32.2 in |
| Weight | 244 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 36.5 Amps |
| Max Charge Amps | 36.5 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 99 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 48.8 lbs |
