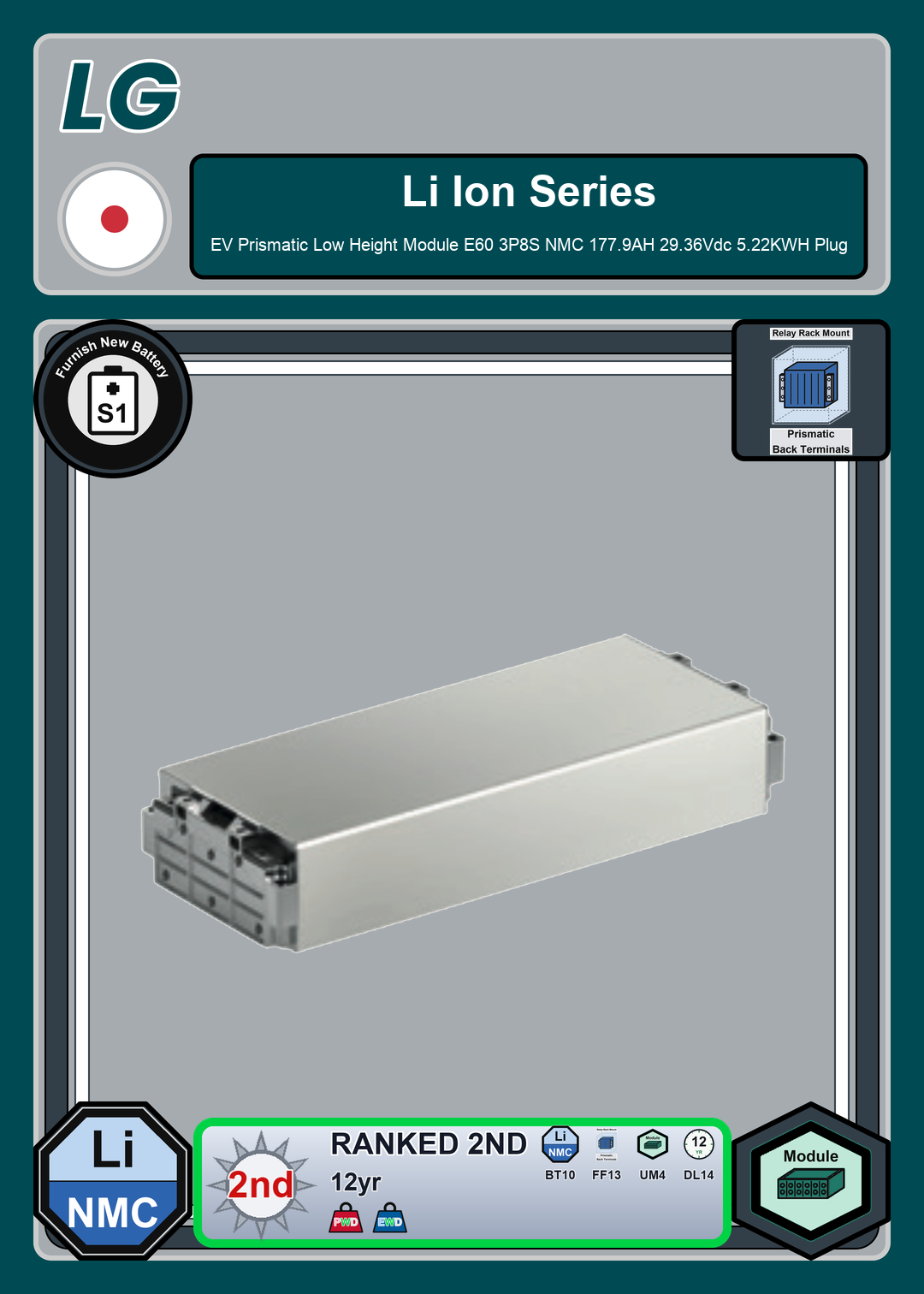

Furnish New Battery LG Battery EV Prismatic Low Height Module E60 3P8S NMC 177 9AH 29 36Vdc 5 22KWH Plug
Technology: Lithium_Ion_NMCFurnish New Battery LG Battery EV Prismatic Low Height Module E60 3P8S NMC 177 9AH 29 36Vdc 5 22KWH Plug
$202.84
Material Value Cost Due from Customer.
Furnish New Battery LG Battery EV Prismatic Low Height Module E60 3P8S NMC 177 9AH 29 36Vdc 5 22KWH Plug

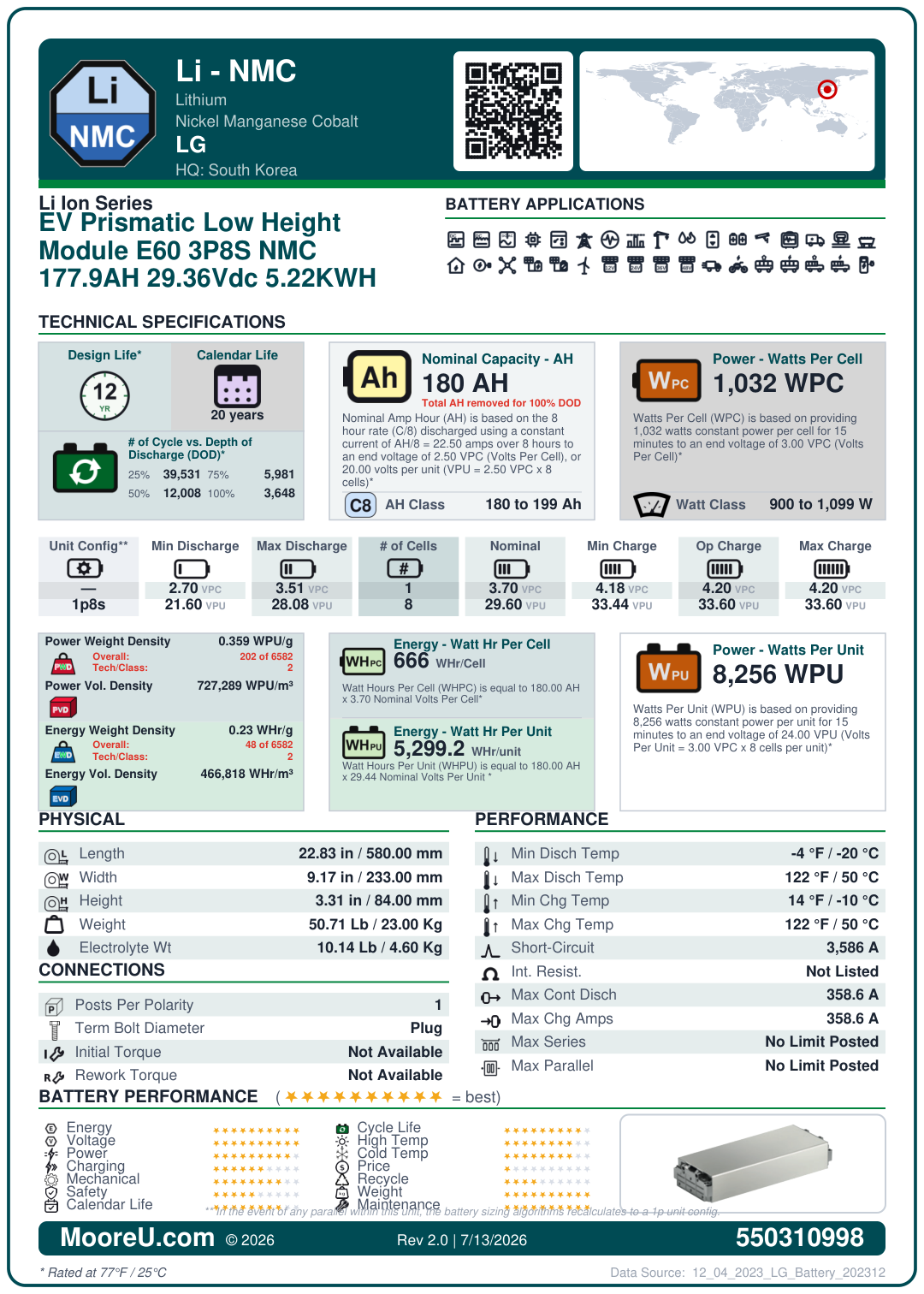

| Battery Model | LG Battery EV Prismatic Low Height Module E60 3P8S NMC 177 9AH 29 36Vdc 5 22KWH Plug |
|---|---|
| Adjustment | 1 |
| AH Per String | 180 |
| AH Per String Rating | 8 hr @ 2.5 VPC |
| Cells Per Unit | 8 |
| Nominal VPC | 3.68 |
| Model KWH | 5 |
| Charge VPC | 4.2 (Min: 4.1, Max: 4.2) |
| Discharge VPC | Min: 2.5, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 3586 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 22.8346 x 9.17323 x 3.30709 in |
| Weight | 50.7063 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Plug mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Plug |
| FOB | T |
| Max Continuous Discharge | 358.6 Amps |
| Max Charge Amps | 358.6 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1032 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 10.14126 lbs |
