Furnish New Battery LG Battery EV Prismatic Long Module E79 2P12S NMCA 156AH 44 28Vdc 6 91KWH Plug
Technology: Lithium_Ion_NMCFurnish New Battery LG Battery EV Prismatic Long Module E79 2P12S NMCA 156AH 44 28Vdc 6 91KWH Plug
$273.36
Material Value Cost Due from Customer.
Furnish New Battery LG Battery EV Prismatic Long Module E79 2P12S NMCA 156AH 44 28Vdc 6 91KWH Plug

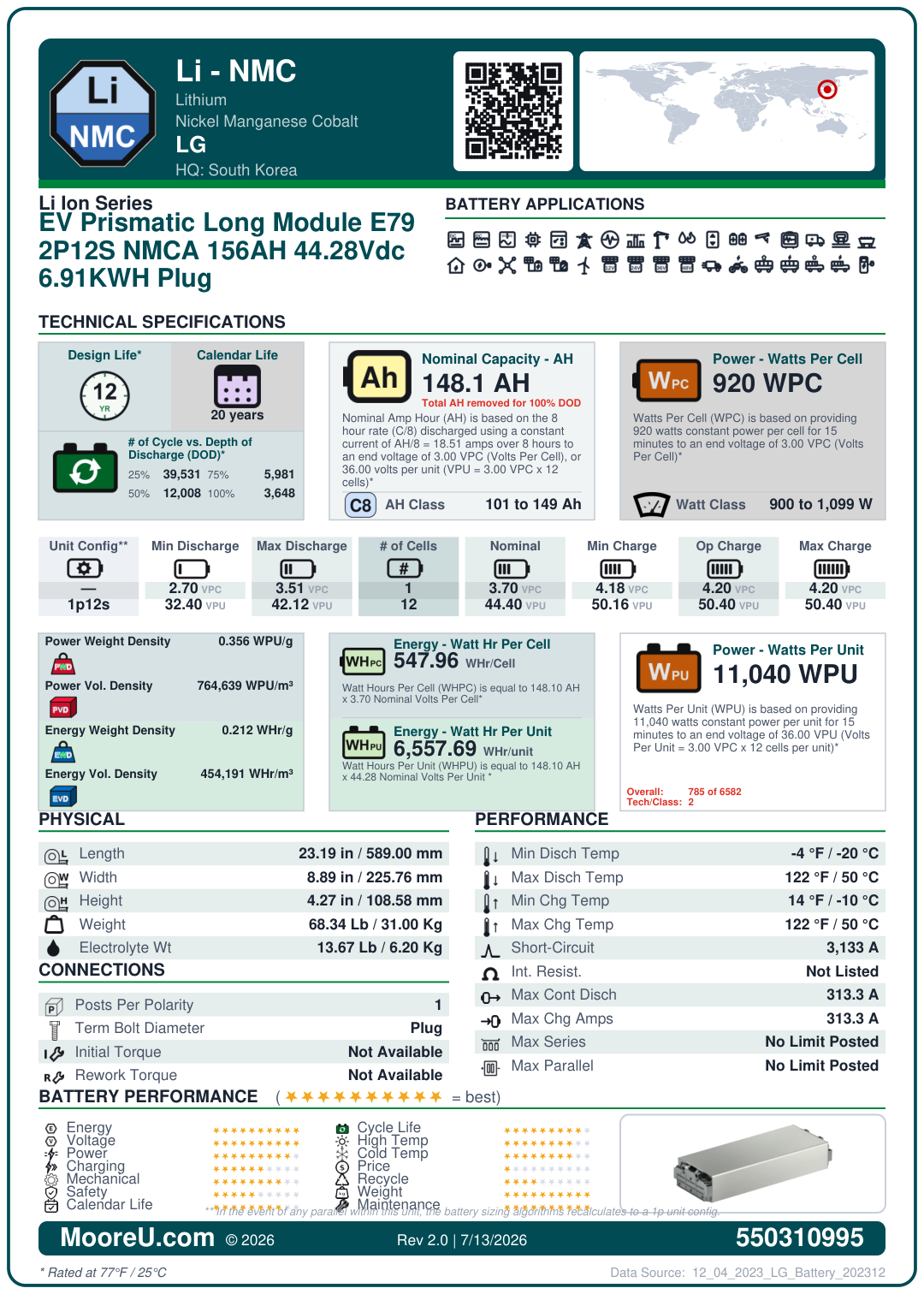

| Battery Model | LG Battery EV Prismatic Long Module E79 2P12S NMCA 156AH 44 28Vdc 6 91KWH Plug |
|---|---|
| Adjustment | 1 |
| AH Per String | 148.096 |
| AH Per String Rating | 8 hr @ 3 VPC |
| Cells Per Unit | 12 |
| Nominal VPC | 3.69 |
| Model KWH | 7 |
| Charge VPC | 4.2 (Min: 4.1, Max: 4.2) |
| Discharge VPC | Min: 3, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 3133 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 23.189 x 8.88818898 x 4.27480315 in |
| Weight | 68.3433 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Plug mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Plug |
| FOB | T |
| Max Continuous Discharge | 313.3 Amps |
| Max Charge Amps | 313.3 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 920 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 13.66866 lbs |
