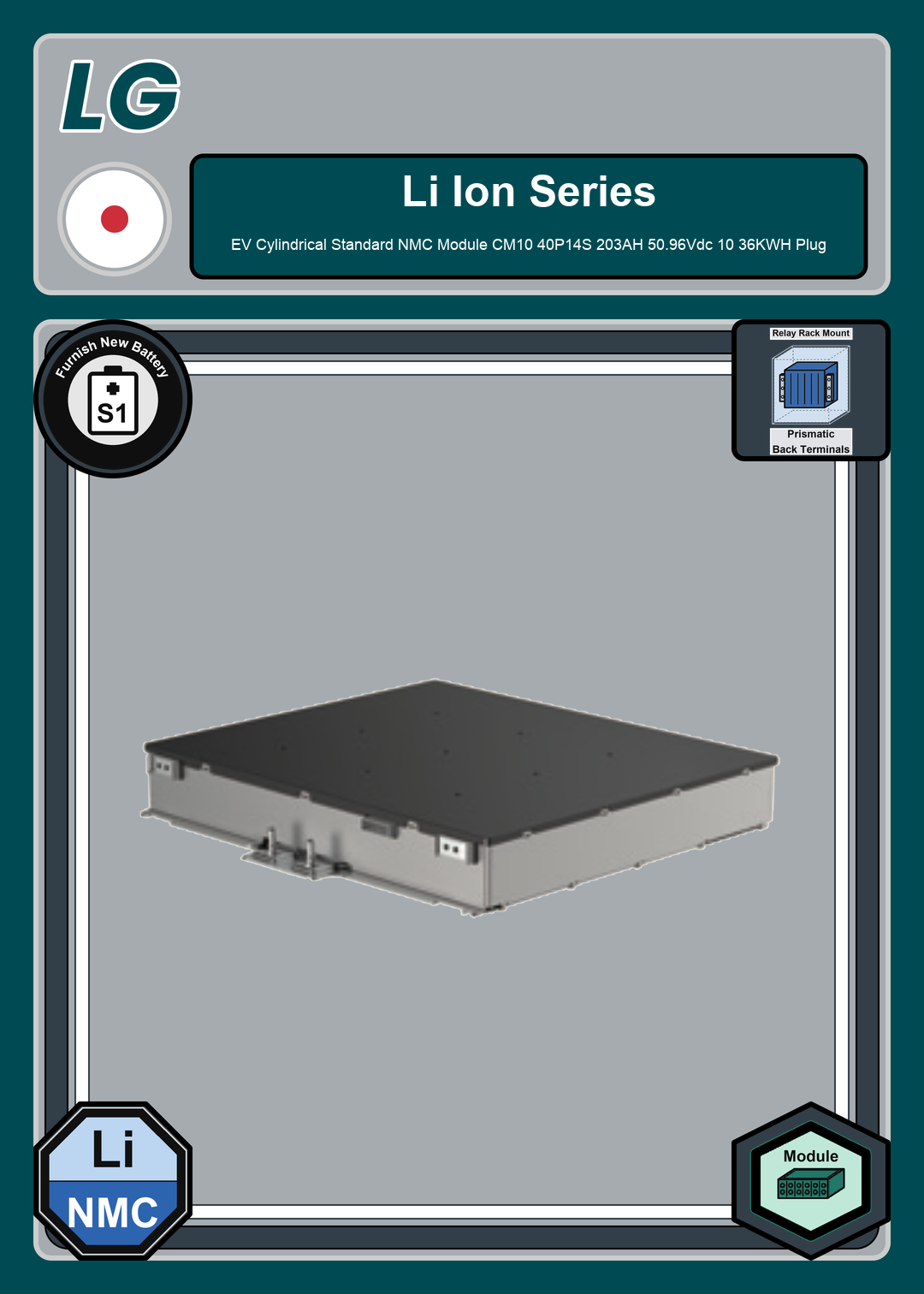

Furnish New Battery LG Battery EV Cylindrical Standard NMC Module CM10 40P14S 203AH 50 96Vdc 10 36KWH Plug
Technology: Lithium_Ion_NMCFurnish New Battery LG Battery EV Cylindrical Standard NMC Module CM10 40P14S 203AH 50 96Vdc 10 36KWH Plug
$489.44
Material Value Cost Due from Customer.
Furnish New Battery LG Battery EV Cylindrical Standard NMC Module CM10 40P14S 203AH 50 96Vdc 10 36KWH Plug

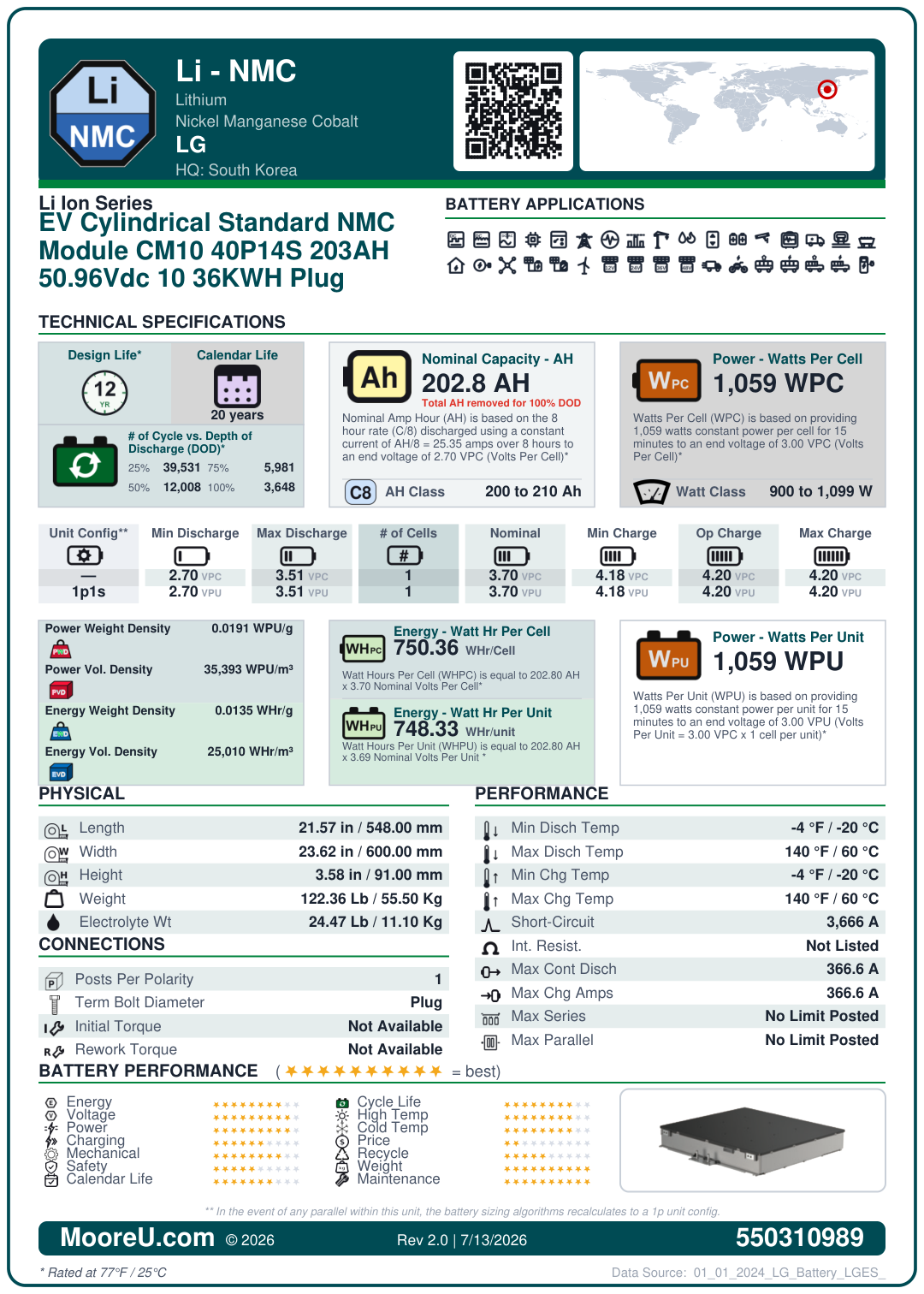

| Battery Model | LG Battery EV Cylindrical Standard NMC Module CM10 40P14S 203AH 50 96Vdc 10 36KWH Plug |
|---|---|
| Adjustment | 1 |
| AH Per String | 202.8 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.69 |
| Model KWH | 1 |
| Charge VPC | 4.1 (Min: 4.1, Max: 4.1) |
| Discharge VPC | Min: 2.96, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -20°C to 60°C |
| ISC Amps | 3666 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 21.5748 x 23.622 x 3.58268 in |
| Weight | 122.3566 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Plug mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Plug |
| FOB | T |
| Max Continuous Discharge | 366.6 Amps |
| Max Charge Amps | 366.6 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1059 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 24.47132 lbs |
