Furnish New Battery LG Battery EV Cell Prismatic LFP JF2 159 2AH 3 65vpc

Name: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_LFP_JF2_159_2AH_3_65vpc
Brand: Lithium_Ion_LFP
SKU: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_LFP_JF2_159_2AH_3_65vpc
Price: 30.85 USD
Availability: InStock

Technology: Lithium_Ion_LFP
Furnish New Battery LG Battery EV Cell Prismatic LFP JF2 159 2AH 3 65vpc

$30.85

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery LG Battery EV Cell Prismatic LFP JF2 159 2AH 3 65vpc

Download Technical Data Sheet

Download Product Safety Data Sheet

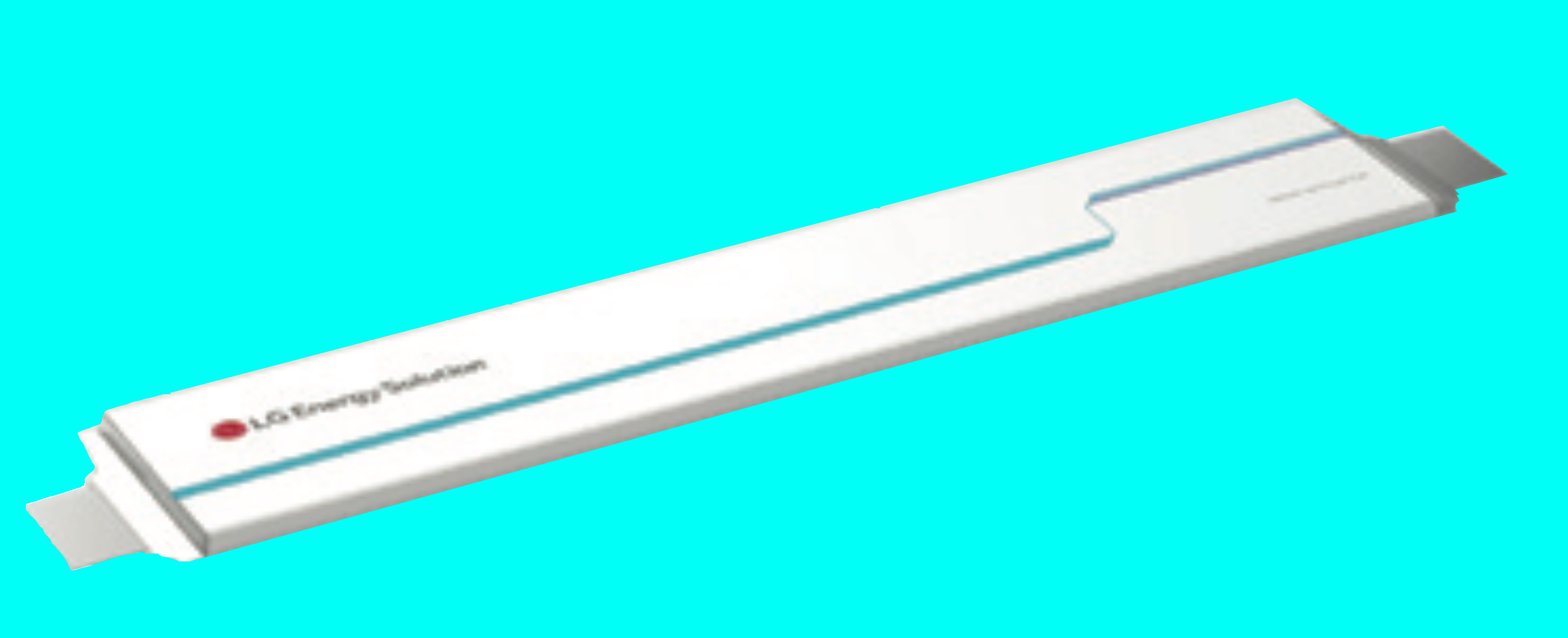

Battery Model	LG Battery EV Cell Prismatic LFP JF2 159 2AH 3 65vpc
Adjustment	1
AH Per String	159.198
AH Per String Rating	8 hr @ 2.5 VPC
Cells Per Unit	1
Nominal VPC	3
Model KWH	0
Charge VPC	3.65 (Min: 3.62, Max: 3.65)
Discharge VPC	Min: 2.5, Max: 3.15
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	0°C to 45°C
Charge Temp Range	0°C to 45°C
ISC Amps	3209
Internal Resistance	0 Ohms
Dimensions (L x W x H)	23.6614 x 4.92126 x 0.708661 in
Weight	6.17294 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	320.9 Amps
Max Charge Amps	320.9 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	831
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	1.234588 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
