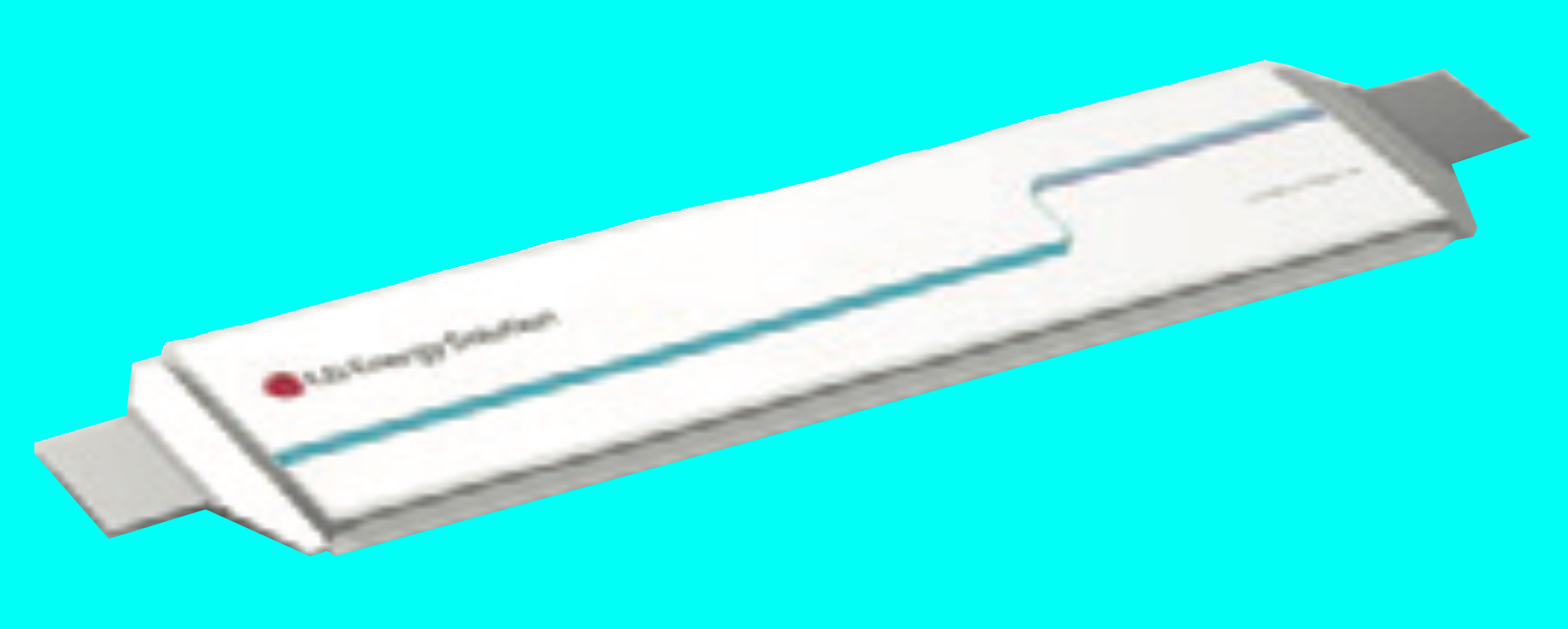

Furnish New Battery LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab

Name: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_NMCA_E101A_101_8AH_3_67Vdc_374WH_Tab
Brand: Lithium_Ion_NMC
SKU: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_NMCA_E101A_101_8AH_3_67Vdc_374WH_Tab
Price: 11.48 USD
Availability: InStock

Technology: Lithium_Ion_NMC
Furnish New Battery LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab

$11.48

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab
Adjustment	1
AH Per String	101.799
AH Per String Rating	8 hr @ 2.7 VPC
Cells Per Unit	1
Nominal VPC	3.67
Model KWH	0
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.7, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-30°C to 55°C
Charge Temp Range	-30°C to 55°C
ISC Amps	2053
Internal Resistance	0 Ohms
Dimensions (L x W x H)	22.8346 x 4.4251969 x 0.354331 in
Weight	2.8726233 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	205.3 Amps
Max Charge Amps	205.3 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	591
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	0.57452466 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Enclosure 20a 550WPC FT 16V 4 030 27 200 04 600 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20a, Max Unit Class = 550WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 4.6, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20a 550WPC FT 16V 4 030 27 200 04 600 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20a, Max Unit Class = 550WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 4.6, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20a 550WPC FT 16V 4 030 27 200 04 600 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20a, Max Unit Class = 550WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 4.6, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20a 550WPC FT 16V 4 030 27 200 04 600 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20a, Max Unit Class = 550WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 4.6, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20a 550WPC FT 16V 4 030 27 200 04 600 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20a, Max Unit Class = 550WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 4.6, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20a 550WPC FT 16V 4 030 27 200 04 600 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20a, Max Unit Class = 550WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 4.6, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
