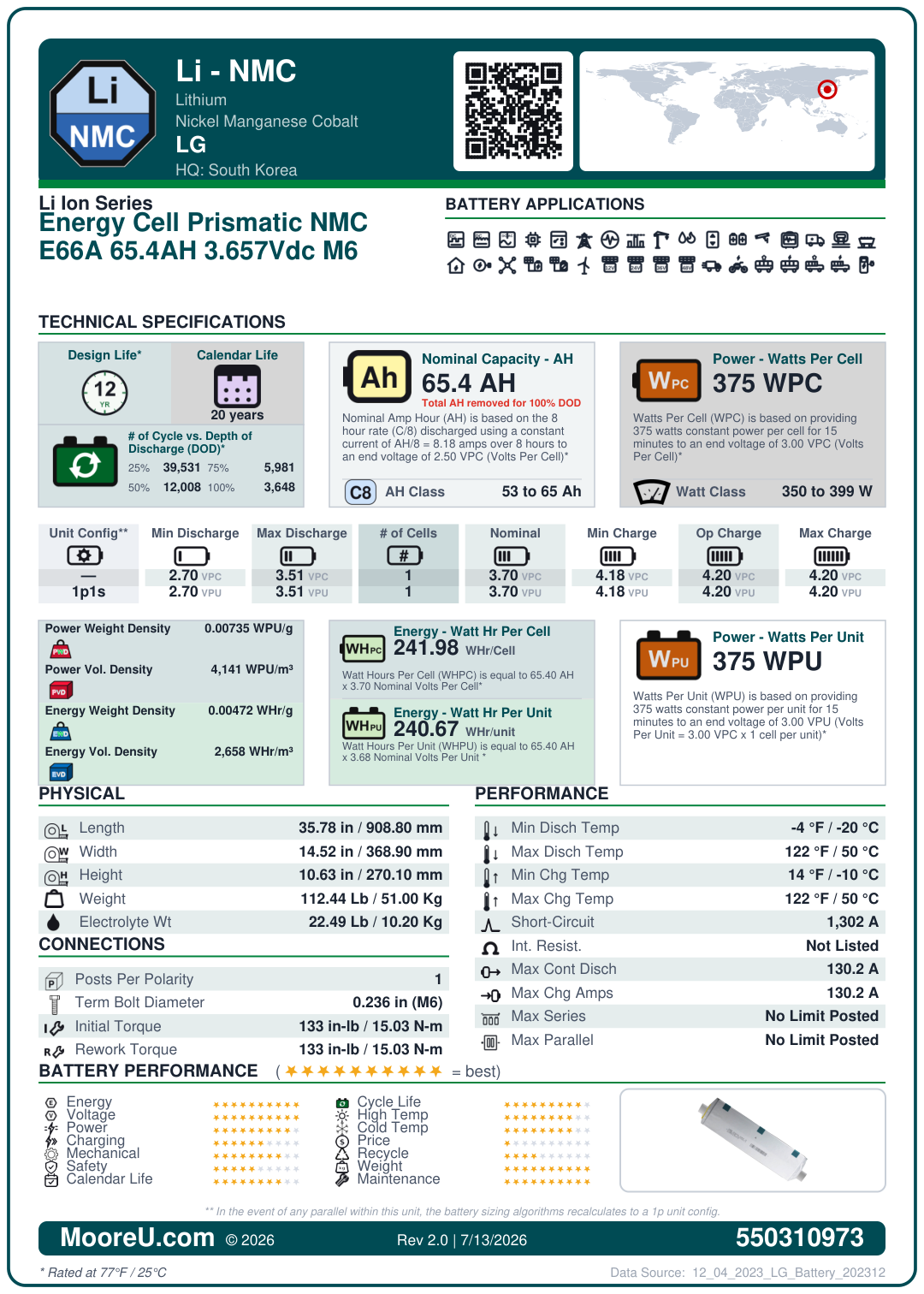

Front of card

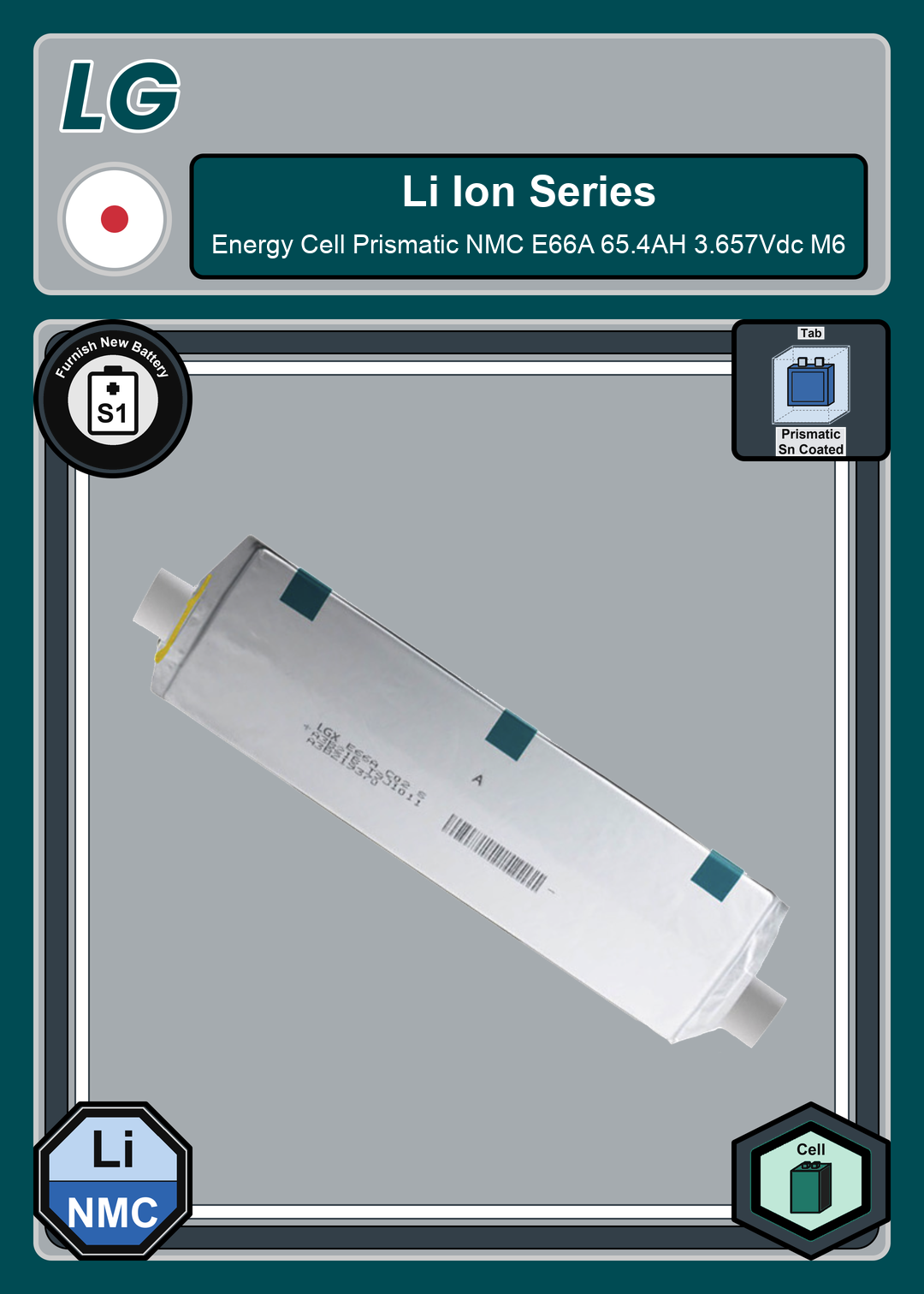

Back of card
Furnish New Battery LG Battery Energy Cell Prismatic NMC E66A 65 4AH 3 657Vdc M6
Technology: Lithium_Ion_NMCFurnish New Battery LG Battery Energy Cell Prismatic NMC E66A 65 4AH 3 657Vdc M6
$449.76
Material Value Cost Due from Customer.
Furnish New Battery LG Battery Energy Cell Prismatic NMC E66A 65 4AH 3 657Vdc M6
| Battery Model | LG Battery Energy Cell Prismatic NMC E66A 65 4AH 3 657Vdc M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 65.4 |
| AH Per String Rating | 8 hr @ 2.5 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.68 |
| Model KWH | 0 |
| Charge VPC | 4.2 (Min: 4.1, Max: 4.2) |
| Discharge VPC | Min: 2.5, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 1302 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 35.779528 x 14.523622 x 10.633858 in |
| Weight | 112.436 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 130.2 Amps |
| Max Charge Amps | 130.2 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 375 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 22.4872 lbs |
