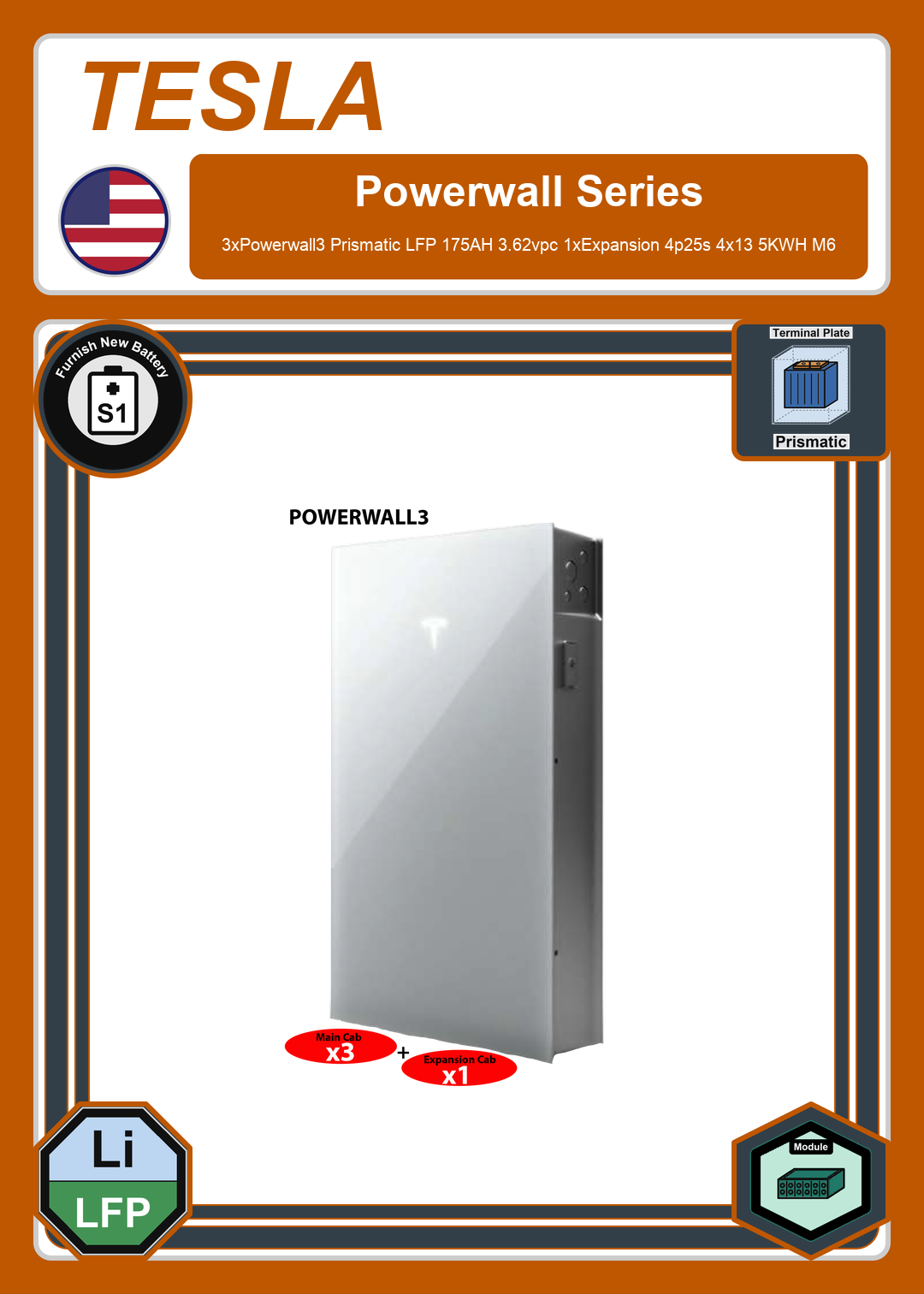

Furnish New Battery Tesla 3xPowerwall3 Prismatic LFP 175AH 3 62vpc 1xExpansion 4p25s 4x13 5KWH M6
Technology: Pb_VRLA_AGM.pngFurnish New Battery Tesla 3xPowerwall3 Prismatic LFP 175AH 3 62vpc 1xExpansion 4p25s 4x13 5KWH M6
$4,400.00
Material Value Cost Due from Customer.
Furnish New Battery Tesla 3xPowerwall3 Prismatic LFP 175AH 3 62vpc 1xExpansion 4p25s 4x13 5KWH M6

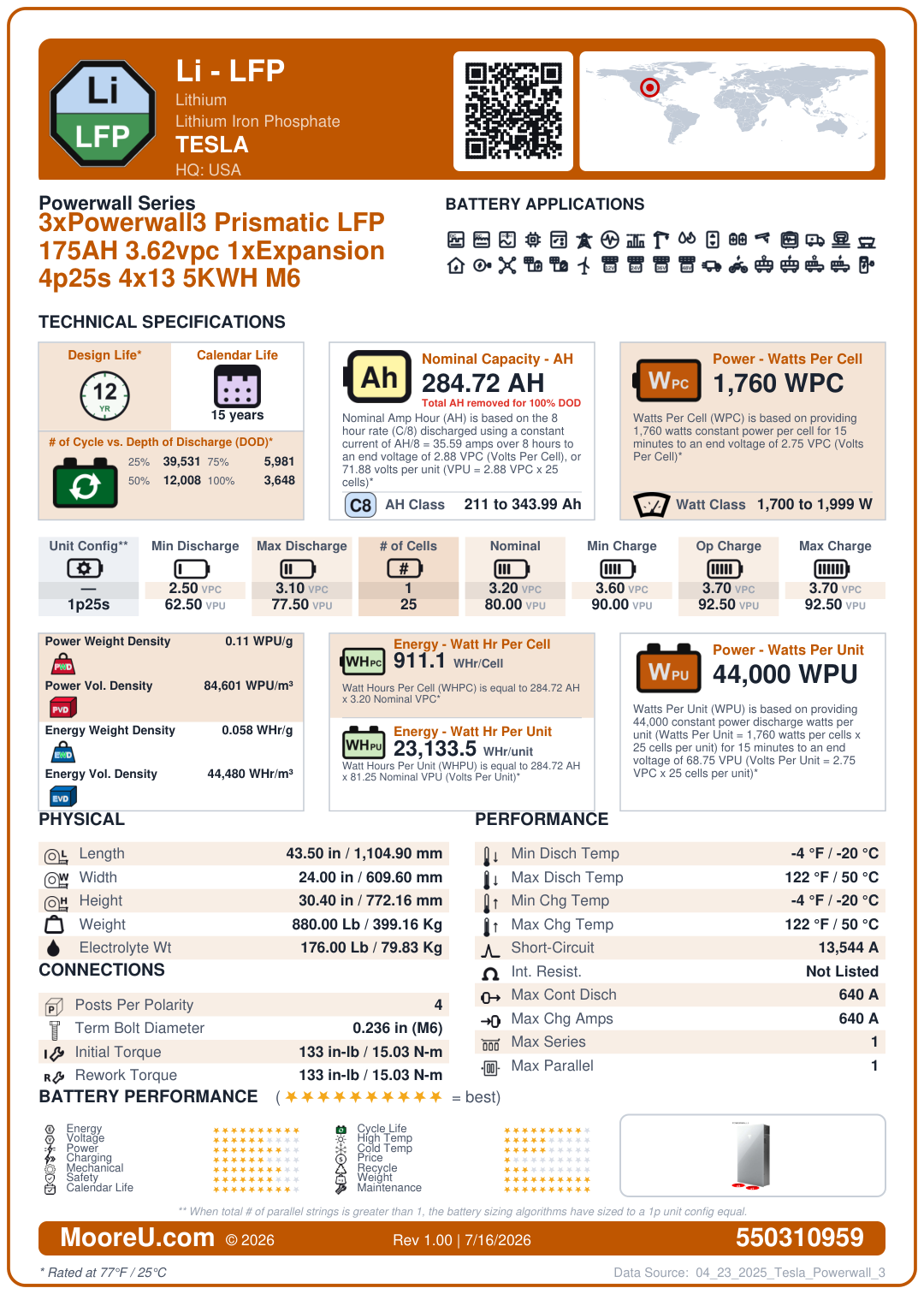

| Battery Model | Tesla 3xPowerwall3 Prismatic LFP 175AH 3 62vpc 1xExpansion 4p25s 4x13 5KWH M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 284.72 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 25 |
| Nominal VPC | 3.25 |
| Model KWH | 23 |
| Charge VPC | 3.62 (Min: 3.62, Max: 3.62) |
| Discharge VPC | Min: 2.5, Max: 3.187 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -20°C to 50°C |
| ISC Amps | 13544 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 43.5 x 24 x 30.4 in |
| Weight | 880 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 640 Amps |
| Max Charge Amps | 640 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 1760 |
| Watts Per Cell Rating | 15 min @ 2.75 VPC |
| Weight of Electrolyte | 176 lbs |
