Furnish New Battery Tesla 9xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 9p22s 9x13 5KWH M6
Technology: Lithium_Ion_NMCFurnish New Battery Tesla 9xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 9p22s 9x13 5KWH M6
$7,920.00
Material Value Cost Due from Customer.
Furnish New Battery Tesla 9xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 9p22s 9x13 5KWH M6

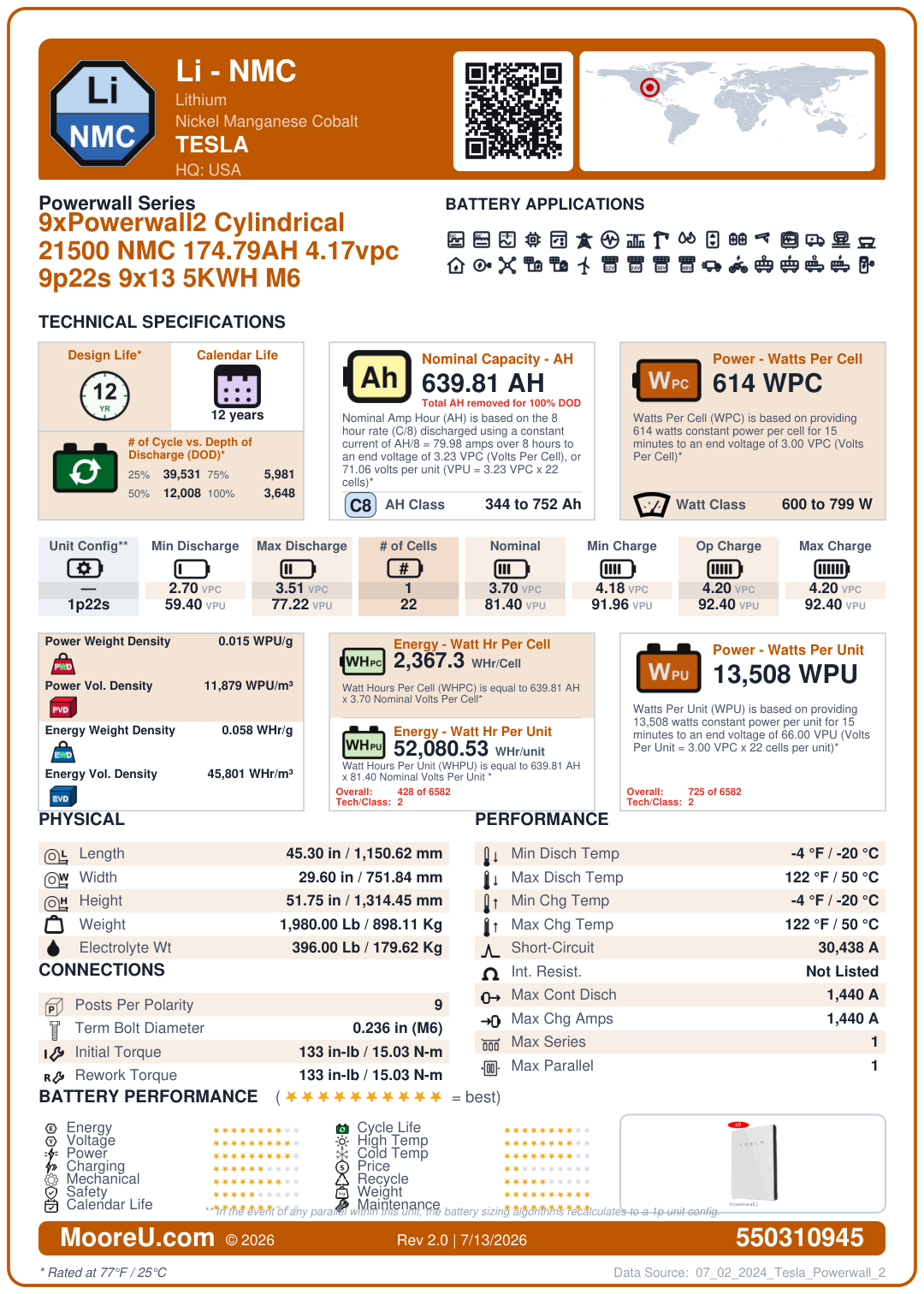

| Battery Model | Tesla 9xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 9p22s 9x13 5KWH M6 |
|---|---|
| Adjustment | 9 |
| AH Per String | 639.81 |
| AH Per String Rating | 8 hr @ 3.23 VPC |
| Cells Per Unit | 22 |
| Nominal VPC | 3.7 |
| Model KWH | 52 |
| Charge VPC | 4.17 (Min: 4.17, Max: 4.17) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -20°C to 50°C |
| ISC Amps | 30438 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 45.3 x 29.6 x 51.75 in |
| Weight | 1980 lbs |
| Number of Posts | 9 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 1440 Amps |
| Max Charge Amps | 1440 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 614 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 396 lbs |
