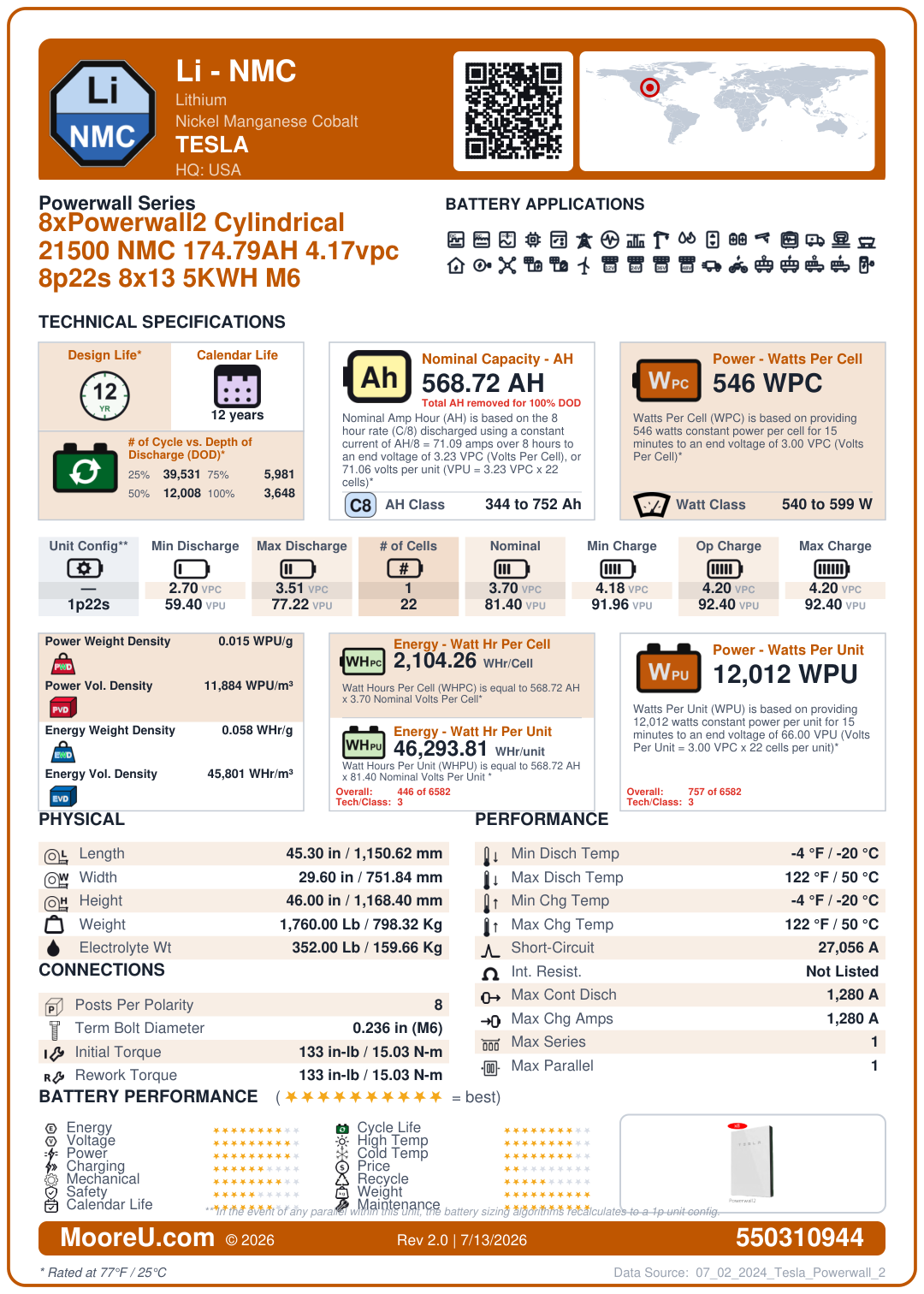

Front of card
Back of card
Furnish New Battery Tesla 8xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 8p22s 8x13 5KWH M6
Technology: Lithium_Ion_NMCFurnish New Battery Tesla 8xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 8p22s 8x13 5KWH M6
$7,040.00
Material Value Cost Due from Customer.
Furnish New Battery Tesla 8xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 8p22s 8x13 5KWH M6
| Battery Model | Tesla 8xPowerwall2 Cylindrical 21500 NMC 174 79AH 4 17vpc 8p22s 8x13 5KWH M6 |
|---|---|
| Adjustment | 8 |
| AH Per String | 568.72 |
| AH Per String Rating | 8 hr @ 3.23 VPC |
| Cells Per Unit | 22 |
| Nominal VPC | 3.7 |
| Model KWH | 46 |
| Charge VPC | 4.17 (Min: 4.17, Max: 4.17) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -20°C to 50°C |
| ISC Amps | 27056 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 45.3 x 29.6 x 46 in |
| Weight | 1760 lbs |
| Number of Posts | 8 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 1280 Amps |
| Max Charge Amps | 1280 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 546 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 352 lbs |
