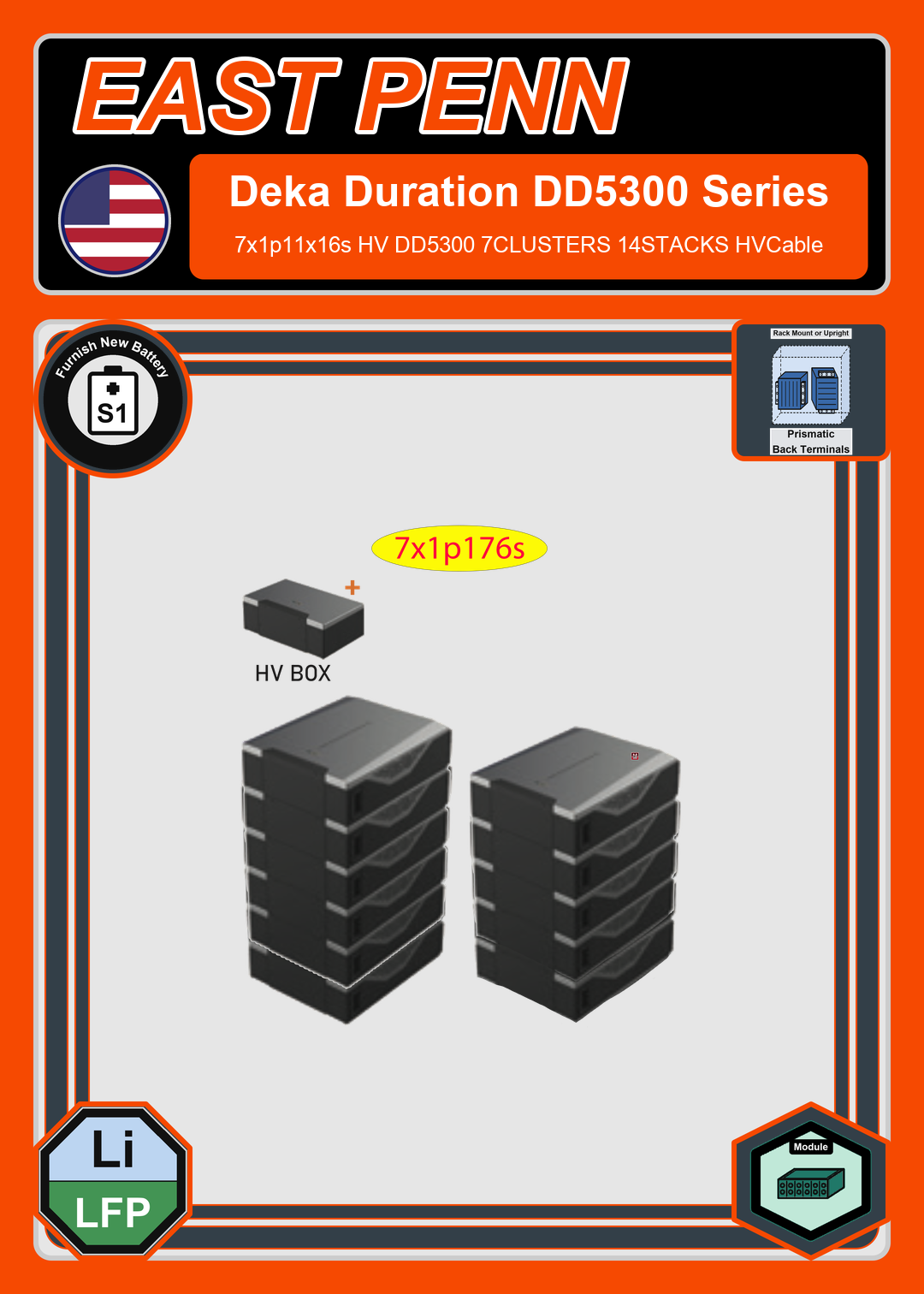

Front of card
Back of card
Furnish New Battery East Penn Battery Deka Duration 7x1p11x16s HV DD5300 7CLUSTERS 14STACKS HVCable
Technology: Pb_VRLA_AGM.pngFurnish New Battery East Penn Battery Deka Duration 7x1p11x16s HV DD5300 7CLUSTERS 14STACKS HVCable
$48,625.50
Material Value Cost Due from Customer.
Furnish New Battery East Penn Battery Deka Duration 7x1p11x16s HV DD5300 7CLUSTERS 14STACKS HVCable
| Battery Model | East Penn Battery Deka Duration 7x1p11x16s HV DD5300 7CLUSTERS 14STACKS HVCable |
|---|---|
| Adjustment | 1 |
| AH Per String | 1042.82976 |
| AH Per String Rating | 8 hr @ 3.14 VPC |
| Cells Per Unit | 176 |
| Nominal VPC | 3.25 |
| Model KWH | 596 |
| Charge VPC | 3.65 (Min: 3.65, Max: 3.65) |
| Discharge VPC | Min: 3.125, Max: 3.15 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -10°C to 55°C |
| ISC Amps | 68600 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 18.5 x 326.9 x 25.68 in |
| Weight | 9725.1 lbs |
| Number of Posts | 1232 |
| Terminal Bolt Diameter | 0 in (Cabl mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | HVCable |
| FOB | T |
| Max Continuous Discharge | 686 Amps |
| Max Charge Amps | 686 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 2191 |
| Watts Per Cell Rating | 15 min @ 3.13 VPC |
| Weight of Electrolyte | 1945.02 lbs |
