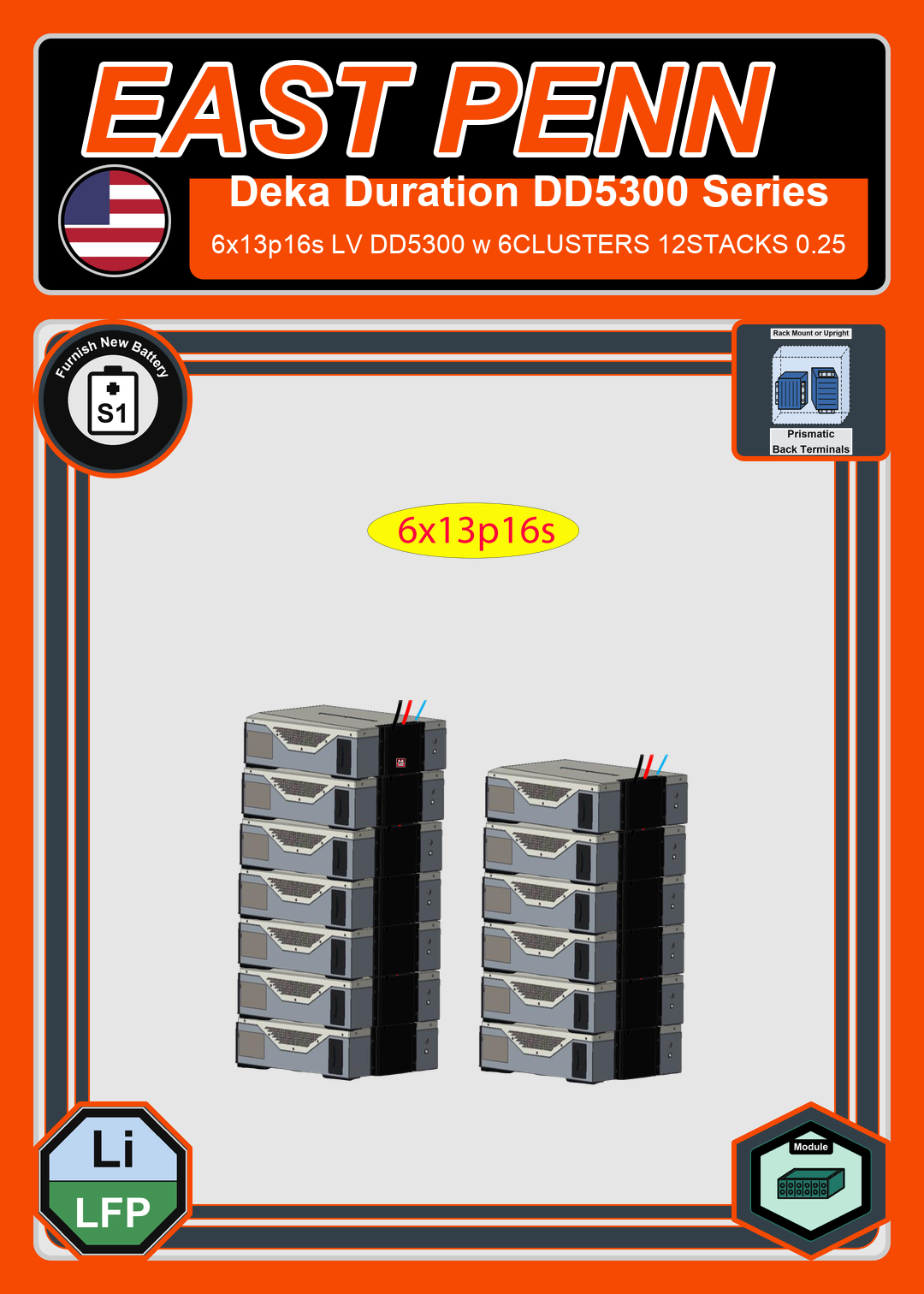

Furnish New Battery East Penn Battery Deka Duration 6x13p16s LV DD5300 w 6CLUSTERS 12STACKS 0.25
Technology: Pb_VRLA_AGM.pngFurnish New Battery East Penn Battery Deka Duration 6x13p16s LV DD5300 w 6CLUSTERS 12STACKS 0.25
$49,257.00
Material Value Cost Due from Customer.
Furnish New Battery East Penn Battery Deka Duration 6x13p16s LV DD5300 w 6CLUSTERS 12STACKS 0.25

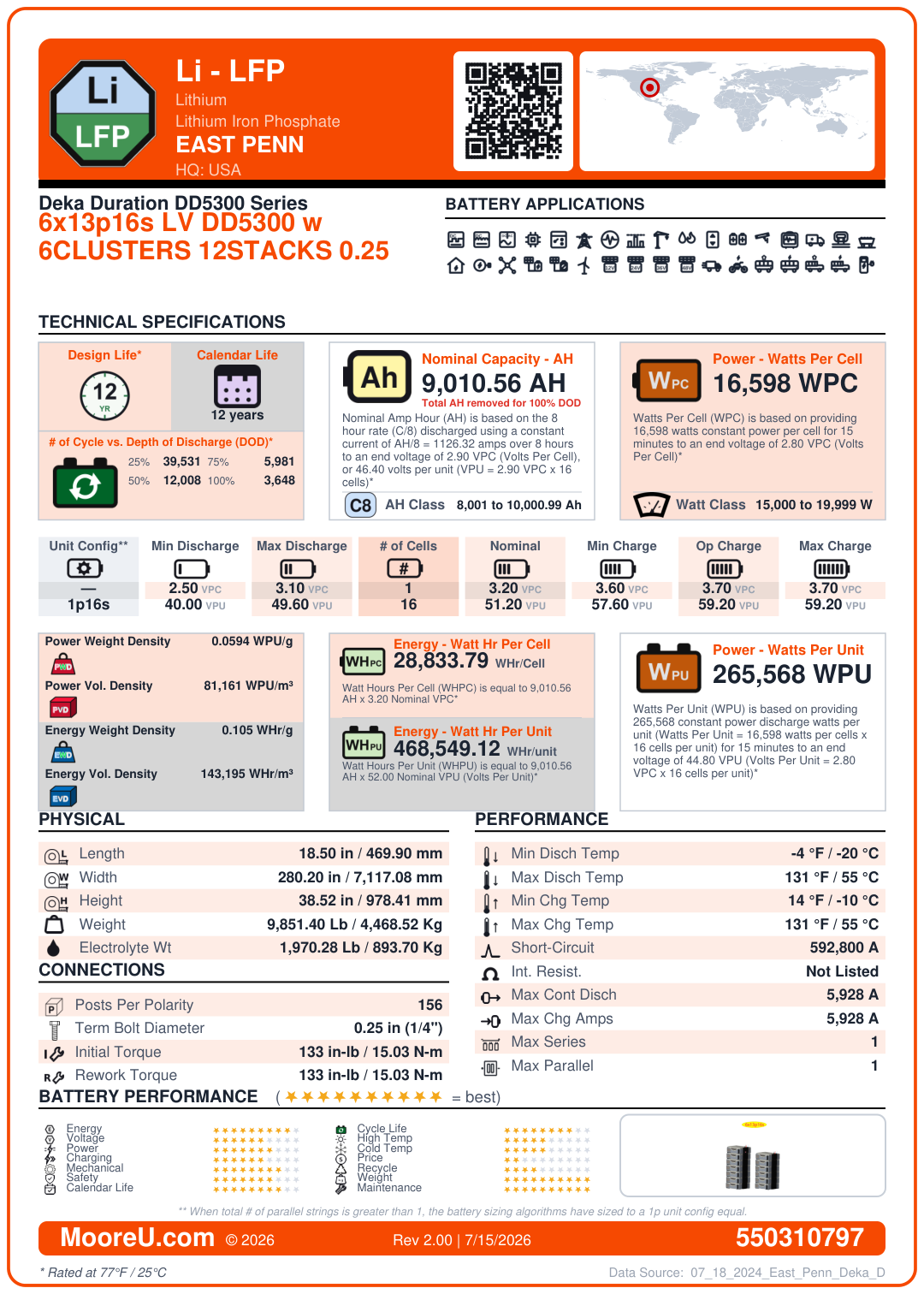

| Battery Model | East Penn Battery Deka Duration 6x13p16s LV DD5300 w 6CLUSTERS 12STACKS 0.25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 9010.56 |
| AH Per String Rating | 8 hr @ 2.9 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.25 |
| Model KWH | 469 |
| Charge VPC | 3.65 (Min: 3.65, Max: 3.65) |
| Discharge VPC | Min: 2.7, Max: 3.15 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -10°C to 55°C |
| ISC Amps | 592800 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 18.5 x 280.2 x 38.52 in |
| Weight | 9851.4 lbs |
| Number of Posts | 156 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 5928 Amps |
| Max Charge Amps | 5928 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 16598 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 1970.28 lbs |
