Furnish New Battery East Penn Battery Deka Duration 6x7p16s LV DD5300 wo 6CLUSTERS 6STACKS 0.25
Technology: Pb_VRLA_AGM.pngFurnish New Battery East Penn Battery Deka Duration 6x7p16s LV DD5300 wo 6CLUSTERS 6STACKS 0.25
$26,523.00
Material Value Cost Due from Customer.
Furnish New Battery East Penn Battery Deka Duration 6x7p16s LV DD5300 wo 6CLUSTERS 6STACKS 0.25

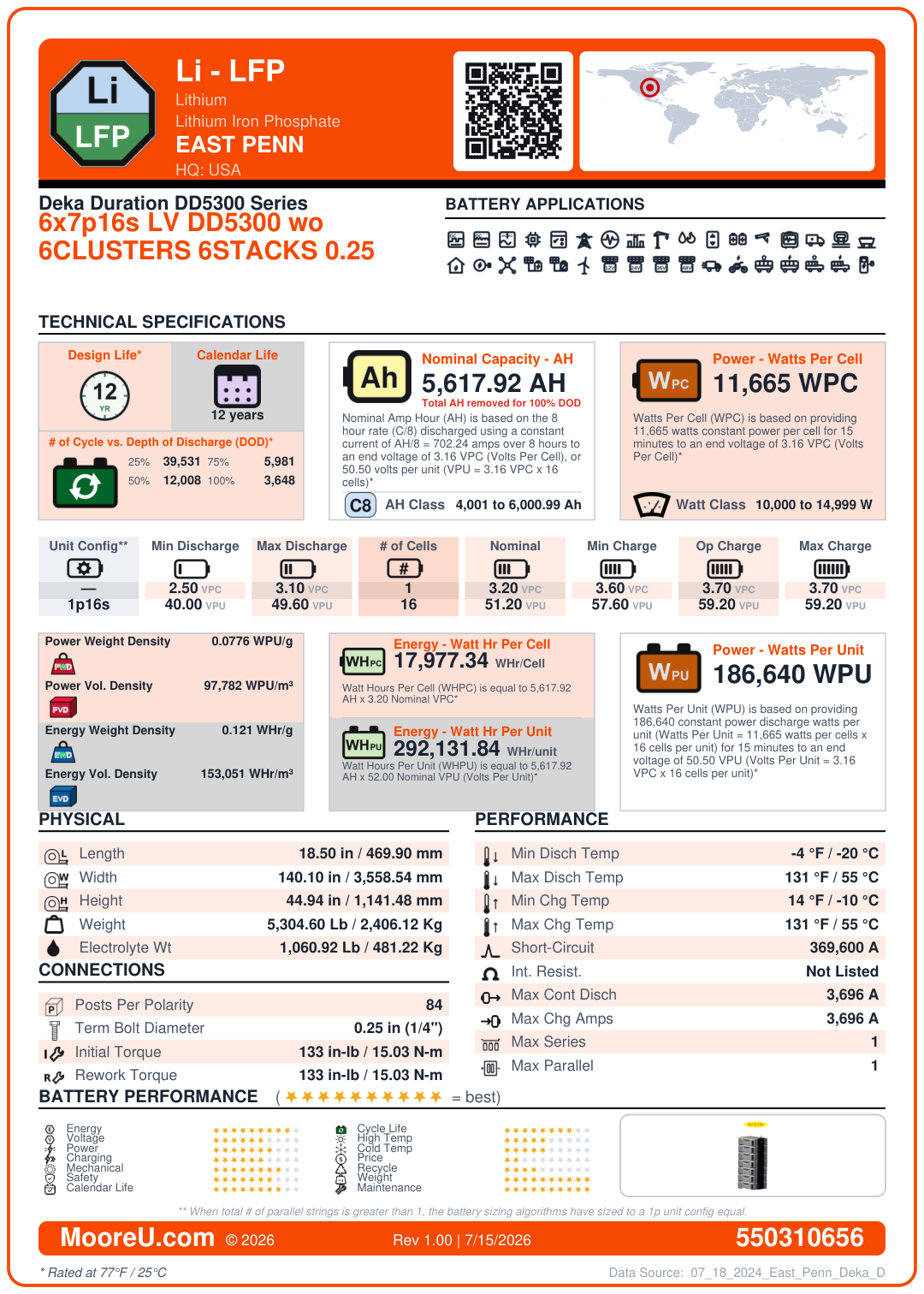

| Battery Model | East Penn Battery Deka Duration 6x7p16s LV DD5300 wo 6CLUSTERS 6STACKS 0.25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 5617.92 |
| AH Per String Rating | 8 hr @ 3.1564 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.25 |
| Model KWH | 292 |
| Charge VPC | 3.5 (Min: 3.5, Max: 3.5) |
| Discharge VPC | Min: 3.156, Max: 3.1567 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -10°C to 55°C |
| ISC Amps | 369600 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 18.5 x 140.1 x 44.94 in |
| Weight | 5304.6 lbs |
| Number of Posts | 84 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 3696 Amps |
| Max Charge Amps | 3696 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 11665 |
| Watts Per Cell Rating | 15 min @ 3.1562 VPC |
| Weight of Electrolyte | 1060.92 lbs |
