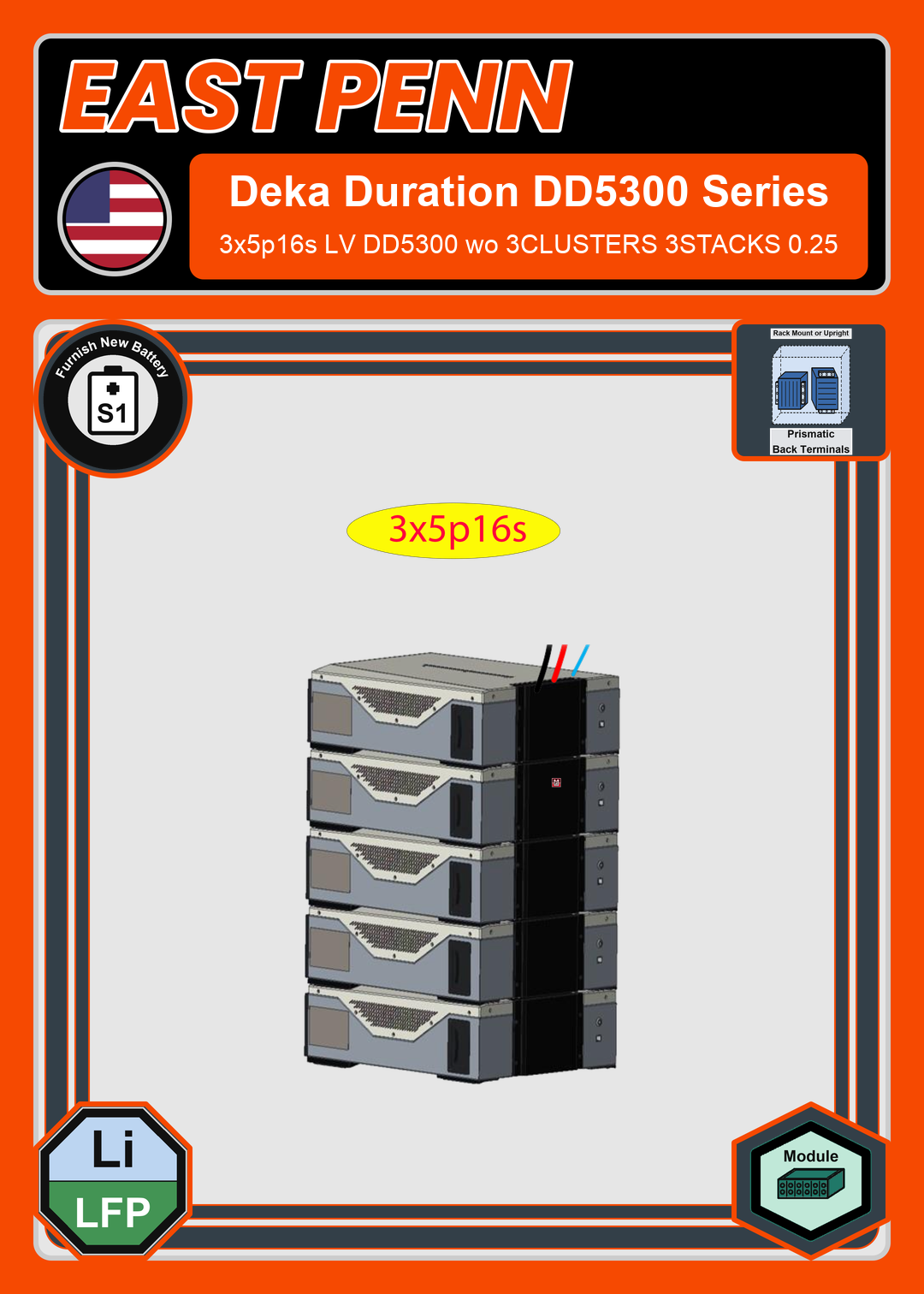

Furnish New Battery East Penn Battery Deka Duration 3x5p16s LV DD5300 wo 3CLUSTERS 3STACKS 0.25
Technology: Lithium_Ion_LFPFurnish New Battery East Penn Battery Deka Duration 3x5p16s LV DD5300 wo 3CLUSTERS 3STACKS 0.25
$9,472.50
Material Value Cost Due from Customer.
Furnish New Battery East Penn Battery Deka Duration 3x5p16s LV DD5300 wo 3CLUSTERS 3STACKS 0.25
| Battery Model | East Penn Battery Deka Duration 3x5p16s LV DD5300 wo 3CLUSTERS 3STACKS 0.25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 2097.6 |
| AH Per String Rating | 8 hr @ 3.1564 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.25 |
| Model KWH | 109 |
| Charge VPC | 3.5 (Min: 3.5, Max: 3.5) |
| Discharge VPC | Min: 3.156, Max: 3.1567 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -10°C to 55°C |
| ISC Amps | 138000 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 18.5 x 70.05 x 32.1 in |
| Weight | 1894.5 lbs |
| Number of Posts | 30 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 1380 Amps |
| Max Charge Amps | 1380 Amps |
| Max In Series / Parallel | 1 / 1 |
| Watts Per Cell (15min 1.67) | 4356 |
| Watts Per Cell Rating | 15 min @ 3.1562 VPC |
| Weight of Electrolyte | 378.9 lbs |
