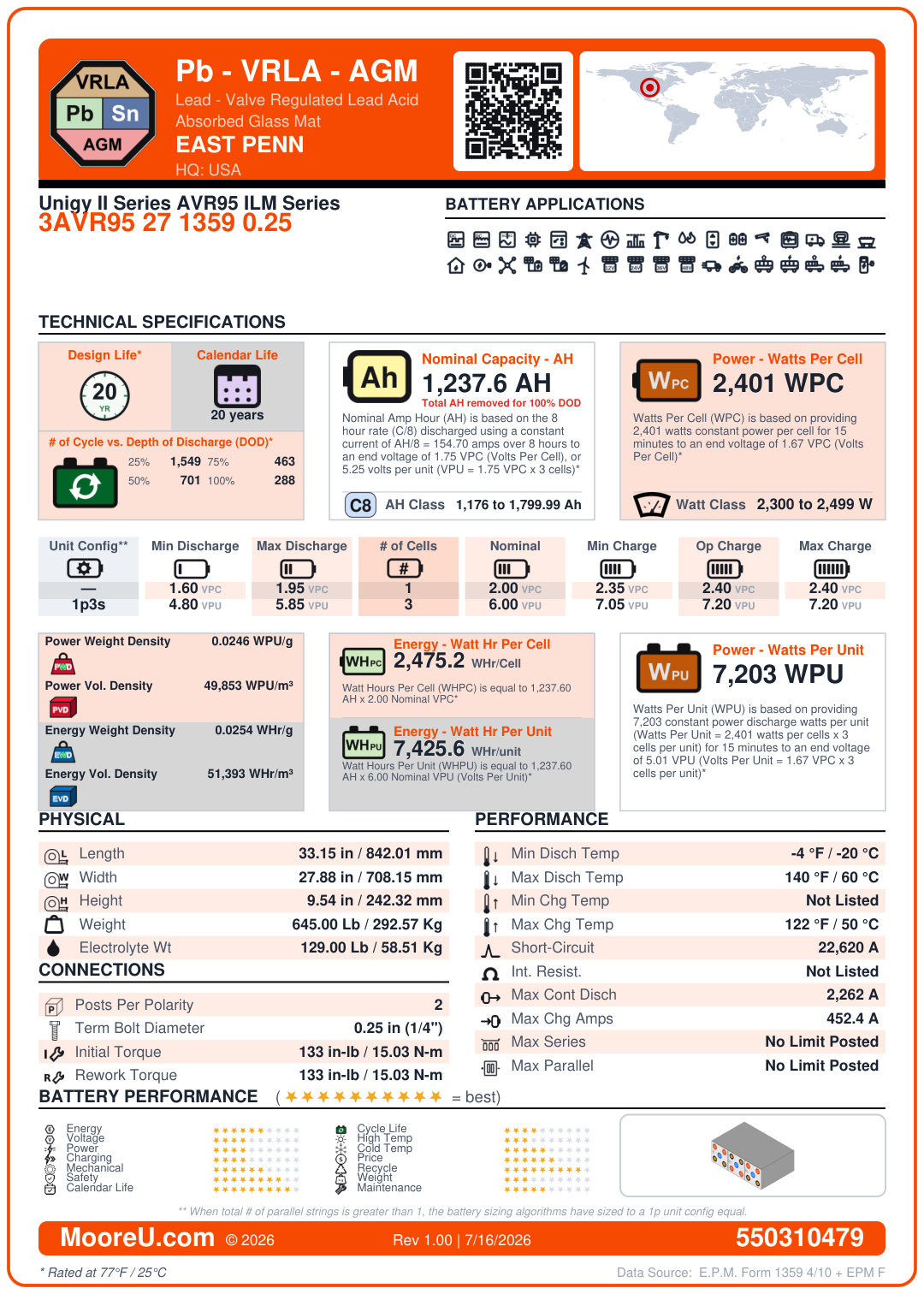

Back of card
Furnish New Battery East Penn Unigy II ILM Series 3AVR95 27 1359 0 25
Technology: Pb_VLA_Flooded_gt.pngFurnish New Battery East Penn Unigy II ILM Series 3AVR95 27 1359 0 25
$3,870.00
Material Value Cost Due from Customer.
Furnish New Battery East Penn Unigy II ILM Series 3AVR95 27 1359 0 25
| Battery Model | East Penn Unigy II ILM Series 3AVR95 27 1359 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 1237.6 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 7 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 22620 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 33.15 x 27.88 x 9.54 in |
| Weight | 645 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 2262 Amps |
| Max Charge Amps | 452.4 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2401 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 129 lbs |
