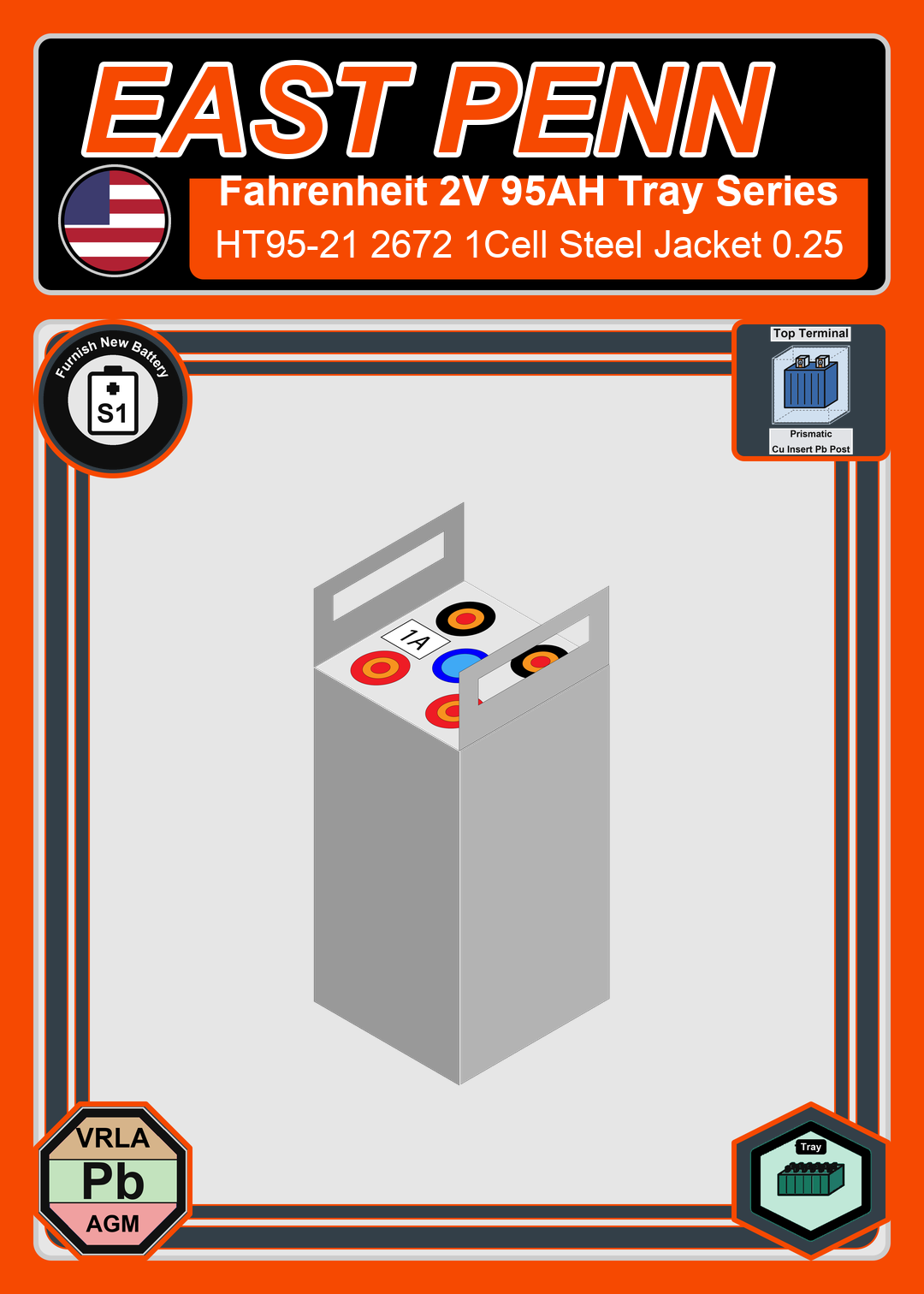

Front of card

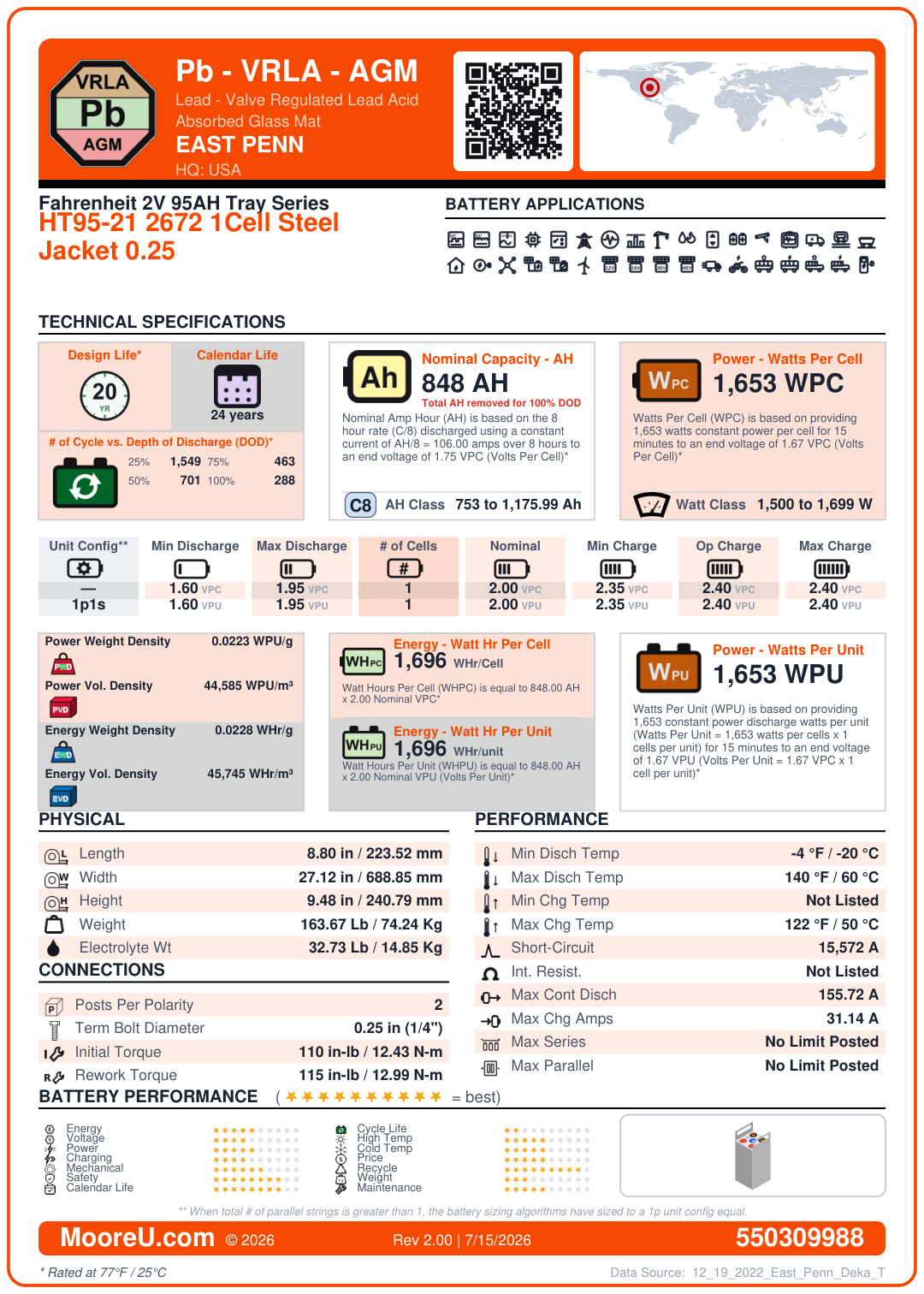

Back of card
Furnish New Battery East Penn Deka Fahrenheit HT95 21 2672 1Cell Steel Jacket 0 25
Technology: Pb_VLA_Flooded_gt.pngFurnish New Battery East Penn Deka Fahrenheit HT95 21 2672 1Cell Steel Jacket 0 25
$982.02
Material Value Cost Due from Customer.
Furnish New Battery East Penn Deka Fahrenheit HT95 21 2672 1Cell Steel Jacket 0 25
| Battery Model | East Penn Deka Fahrenheit HT95 21 2672 1Cell Steel Jacket 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 848 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 15572 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 8.8 x 27.12 x 9.48 in |
| Weight | 163.6666667 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 155.72 Amps |
| Max Charge Amps | 31.144 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1653 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 32.73333333 lbs |
