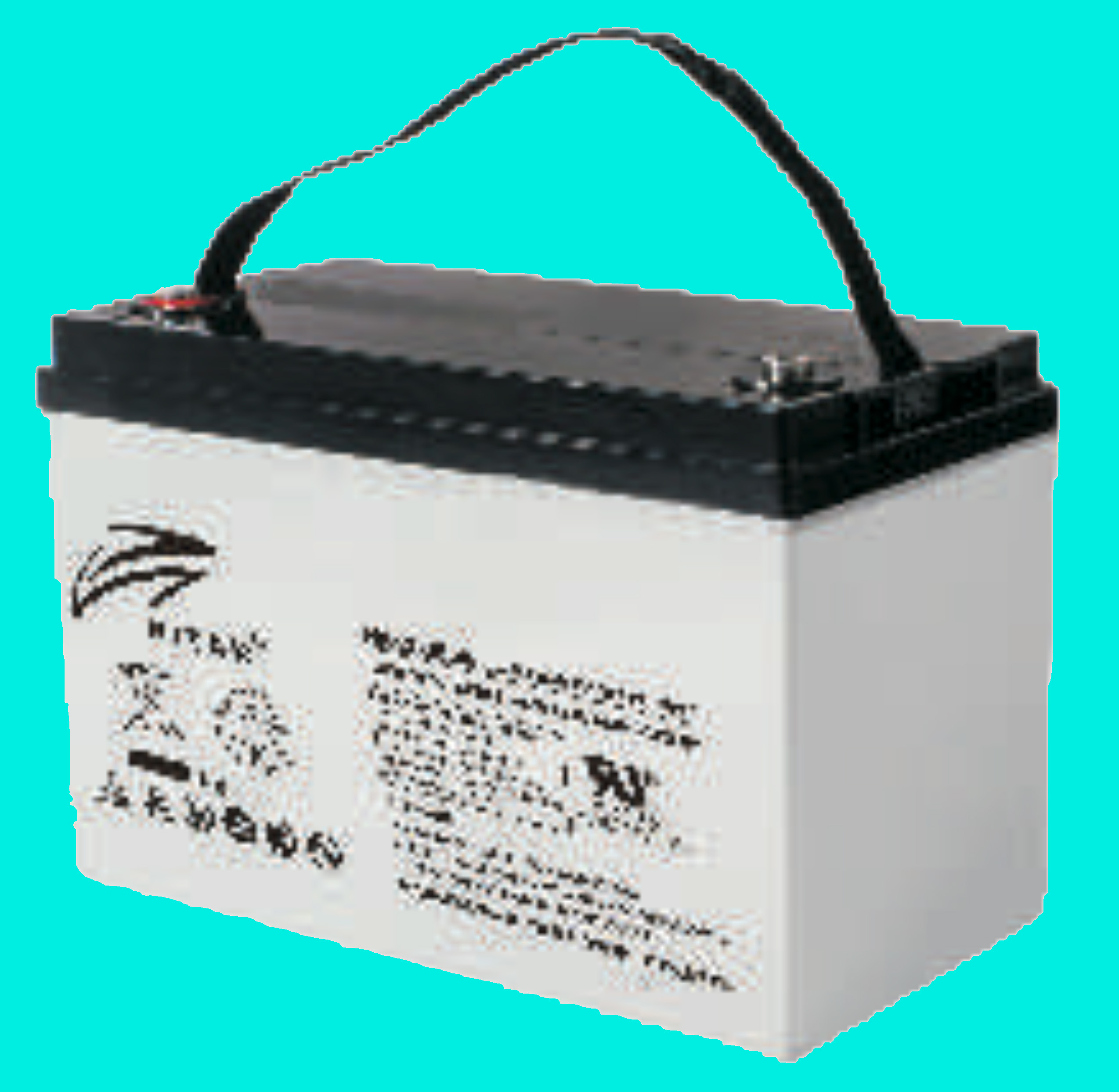

Furnish New Battery Ritar HR Series HR12 420W V23A V0 F12 M8

Name: Furnish_New_Battery_Ritar_HR_Series_HR12_420W_V23A_V0_F12_M8
Brand: Lead_Acid_Units_120lbs and less
SKU: Furnish_New_Battery_Ritar_HR_Series_HR12_420W_V23A_V0_F12_M8
Price: 43.7 USD
Availability: InStock

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery Ritar HR Series HR12 420W V23A V0 F12 M8

$43.70

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery Ritar HR Series HR12 420W V23A V0 F12 M8

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar HR Series HR12 420W V23A V0 F12 M8
Adjustment	1
AH Per String	79.11
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	3777
Internal Resistance	0.0048 Ohms
Dimensions (L x W x H)	12.992133 x 6.8503974 x 8.5433117 in
Weight	8.7401622 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	380.7 Amps
Max Charge Amps	25.24787233 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	420
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	1.74803244 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
