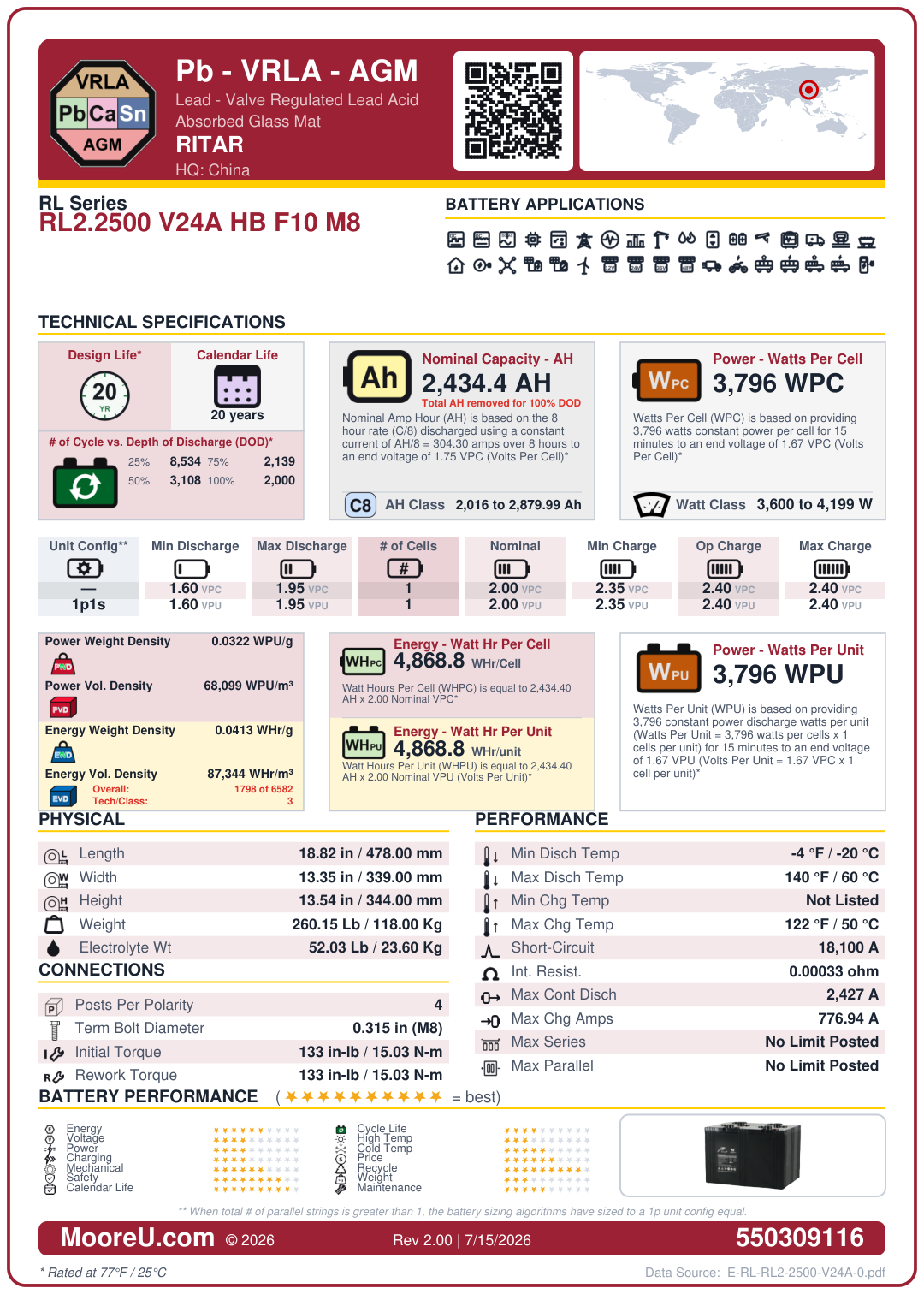

Back of card
Furnish New Battery Ritar RL Series RL2 2500 V24A HB F10 M8
Technology: Pb_VLA_Flooded_gt.pngFurnish New Battery Ritar RL Series RL2 2500 V24A HB F10 M8
$1,560.90
Material Value Cost Due from Customer.
Furnish New Battery Ritar RL Series RL2 2500 V24A HB F10 M8
| Battery Model | Ritar RL Series RL2 2500 V24A HB F10 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 2434.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 18100 |
| Internal Resistance | 0.00033 Ohms |
| Dimensions (L x W x H) | 18.8189078 x 13.3464639 x 13.5433144 in |
| Weight | 260.14516 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | HB |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 2427 Amps |
| Max Charge Amps | 776.9361698 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 3796 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 52.029032 lbs |
