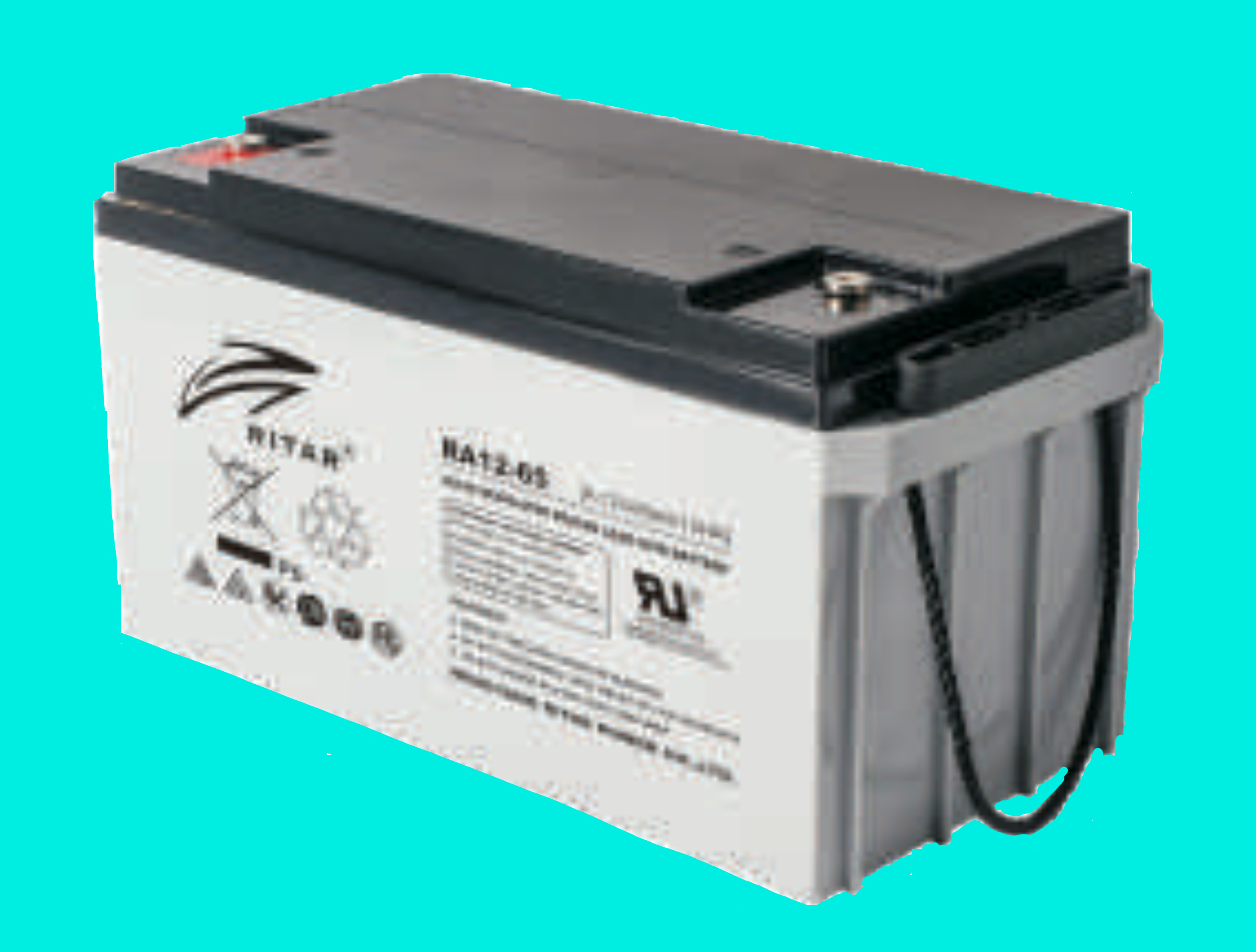

Furnish New Battery Ritar RA N Series RA12 65N V24A HB F5 M8

Name: Furnish_New_Battery_Ritar_RA_N_Series_RA12_65N_V24A_HB_F5_M8
Brand: Lead_Acid_Units_120lbs and less
SKU: Furnish_New_Battery_Ritar_RA_N_Series_RA12_65N_V24A_HB_F5_M8
Price: 192.9 USD
Availability: InStock

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery Ritar RA N Series RA12 65N V24A HB F5 M8

$192.90

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery Ritar RA N Series RA12 65N V24A HB F5 M8

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar RA N Series RA12 65N V24A HB F5 M8
Adjustment	1
AH Per String	59.76
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	1500
Internal Resistance	0.0085 Ohms
Dimensions (L x W x H)	13.8582752 x 6.6535469 x 7.2440984 in
Weight	38.58085 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	HB
Terminal	M8
FOB	T
Max Continuous Discharge	193.6 Amps
Max Charge Amps	19.07234042 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	186
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	7.71617 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
