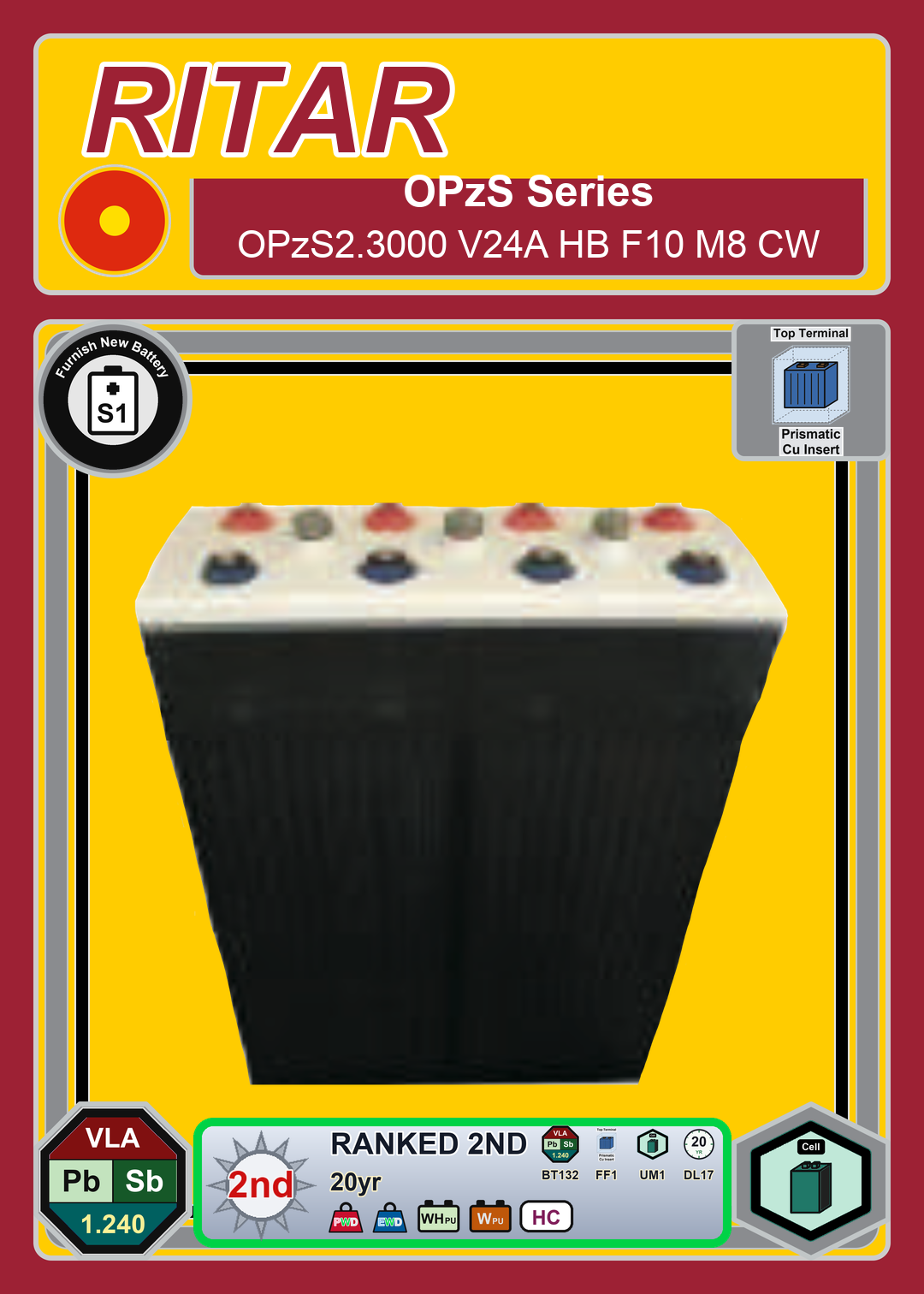

Front of card

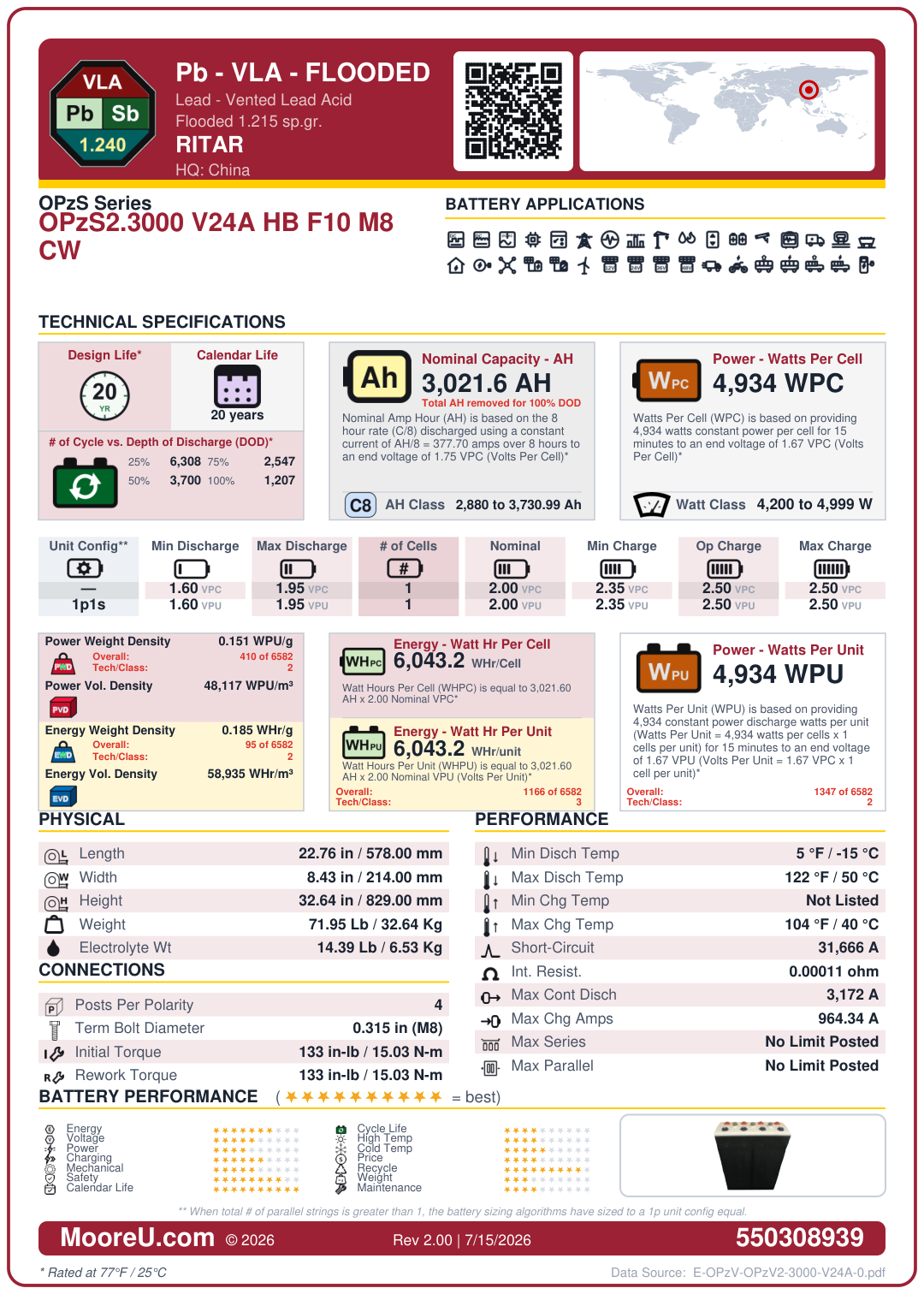

Back of card
Furnish New Battery Ritar OPzS Series OPzS2 3000 V24A HB F10 M8 CW
Technology: Pb_VLA_Flooded_gt.pngFurnish New Battery Ritar OPzS Series OPzS2 3000 V24A HB F10 M8 CW
$431.70
Material Value Cost Due from Customer.
Furnish New Battery Ritar OPzS Series OPzS2 3000 V24A HB F10 M8 CW
| Battery Model | Ritar OPzS Series OPzS2 3000 V24A HB F10 M8 CW |
|---|---|
| Adjustment | 1 |
| AH Per String | 3021.6 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 6 |
| Charge VPC | 2.4 (Min: 2.25, Max: 2.47) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | 0°C to 40°C |
| ISC Amps | 31666 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 22.7559178 x 8.4252014 x 32.6378129 in |
| Weight | 71.95397508 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | HB |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 3172 Amps |
| Max Charge Amps | 964.340425 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 4934 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 14.39079502 lbs |
