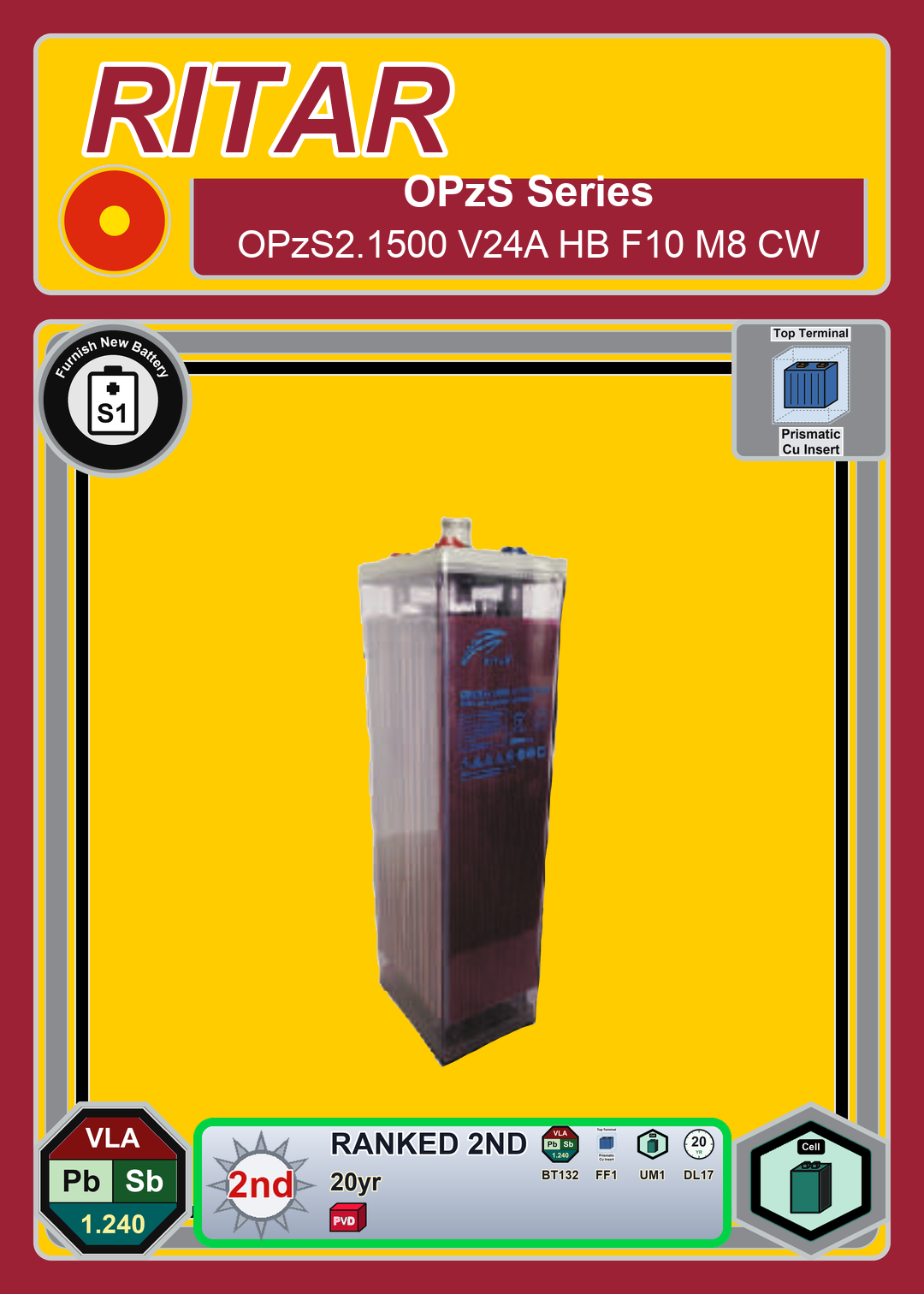

Furnish New Battery Ritar OPzS Series OPzS2 1500 V24A HB F10 M8 CW
Technology: Pb_VLA_Flooded_gt.pngFurnish New Battery Ritar OPzS Series OPzS2 1500 V24A HB F10 M8 CW
$1,501.32
Material Value Cost Due from Customer.
Furnish New Battery Ritar OPzS Series OPzS2 1500 V24A HB F10 M8 CW

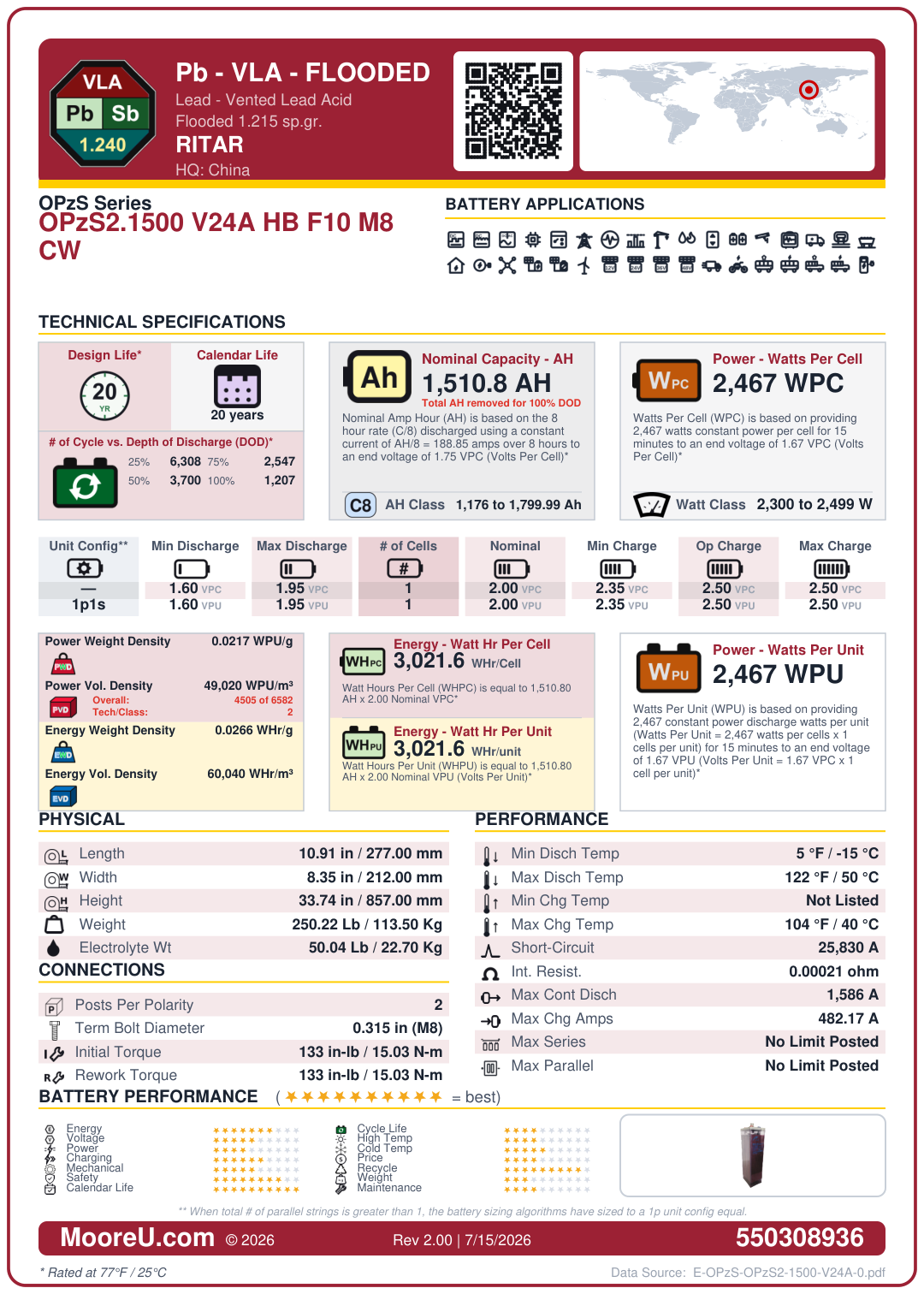

| Battery Model | Ritar OPzS Series OPzS2 1500 V24A HB F10 M8 CW |
|---|---|
| Adjustment | 1 |
| AH Per String | 1510.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 3 |
| Charge VPC | 2.4 (Min: 2.25, Max: 2.47) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | 0°C to 40°C |
| ISC Amps | 25830 |
| Internal Resistance | 0.00021 Ohms |
| Dimensions (L x W x H) | 10.9055177 x 8.3464612 x 33.7401757 in |
| Weight | 250.22437 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | HB |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 1586 Amps |
| Max Charge Amps | 482.1702125 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2467 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 50.044874 lbs |
