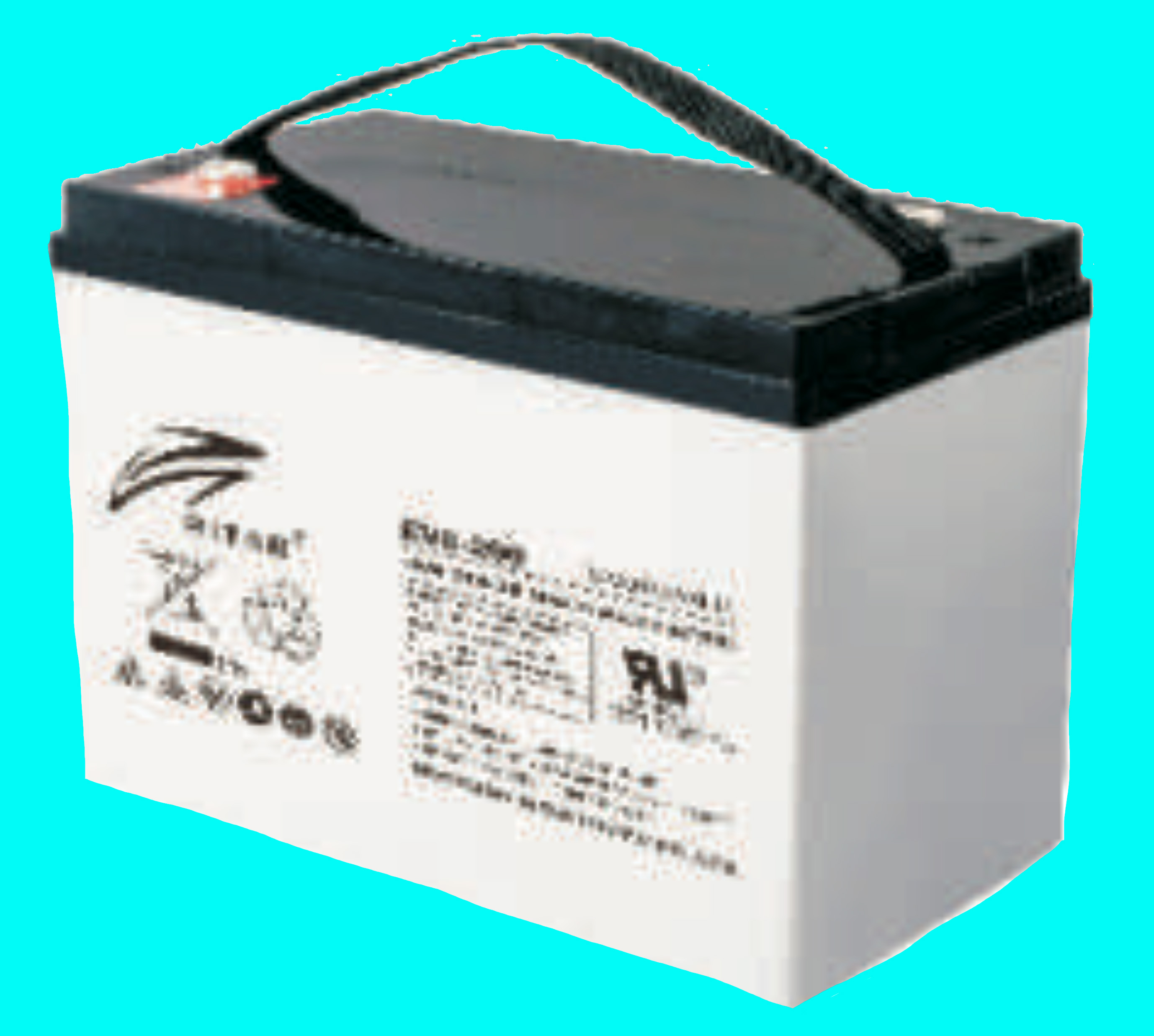

Furnish New Battery Ritar EV Series EV6 200 V22A HB F14 M8
Technology: Lead_Acid_Units_120lbs and lessFurnish New Battery Ritar EV Series EV6 200 V22A HB F14 M8
$330.70
Material Value Cost Due from Customer.
Furnish New Battery Ritar EV Series EV6 200 V22A HB F14 M8
| Battery Model | Ritar EV Series EV6 200 V22A HB F14 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 190.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.27, Max: 2.47) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 4569 |
| Internal Resistance | 0.003 Ohms |
| Dimensions (L x W x H) | 12.7559124 x 7.06693295 x 9.1732333 in |
| Weight | 66.1386 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | HB |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 458.9 Amps |
| Max Charge Amps | 60.76595741 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 600 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 13.22772 lbs |
