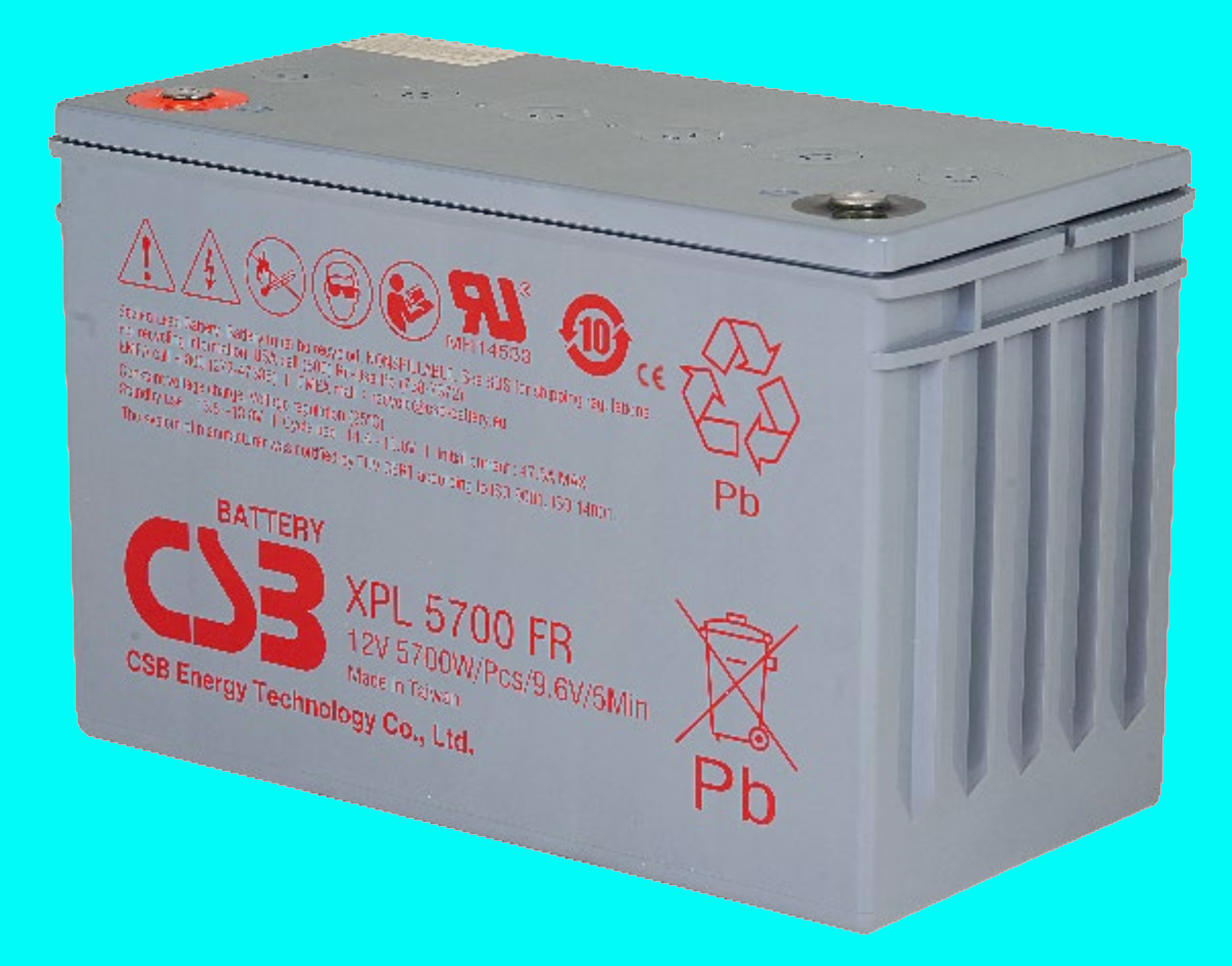

Furnish New Battery CSB XPL Series XPL5700 M6

Name: Furnish_New_Battery_CSB_XPL_Series_XPL5700_M6
Brand: Lead_Acid_Units_120lbs and less
SKU: Furnish_New_Battery_CSB_XPL_Series_XPL5700_M6
Price: 406.65 USD
Availability: InStock

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery CSB XPL Series XPL5700 M6

$406.65

Material Value Cost Due from Customer.

Description
Reference Documents
Battery Model
Specifications
Racks

Furnish New Battery CSB XPL Series XPL5700 M6

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CSB XPL Series XPL5700 M6
Adjustment	1
AH Per String	87.15
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.85
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 50°C
Charge Temp Range	-15°C to 40°C
ISC Amps	3685
Internal Resistance	0.00222 Ohms
Dimensions (L x W x H)	13.60236219 x 6.771653536 x 8.625984243 in
Weight	81.33 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	1200 Amps
Max Charge Amps	47.5 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	503
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	16.266 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 180 02a 06 653 10 236 08 582 078 02i 20 511 10 314 08 858 024 17 620 61 000 0335 04 2 0 440 3RP Light Gray 185 22 4 288 623 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 78, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	15.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 192 02a 06 653 10 236 08 582 081 02i 20 511 10 314 08 858 024 17 620 61 000 0380 05 2 0 440 3RP Light Gray 197 22 4 307 687 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 81, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	16.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 204 02a 06 653 10 236 08 582 087 02i 20 511 10 314 08 858 027 17 620 61 000 0395 05 2 0 440 3RP Light Gray 209 22 4 326 721 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 87, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27	17.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 216 02a 06 653 10 236 08 582 093 02i 20 511 10 314 08 858 030 17 620 61 000 0410 05 2 0 440 3RP Light Gray 221 22 4 344 754 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 93, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	18.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 228 02a 06 653 10 236 08 582 099 02i 20 511 10 314 08 858 030 17 620 61 000 0425 05 2 0 440 3RP Light Gray 233 22 4 363 788 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 99, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	19.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 240 02a 06 653 10 236 08 582 105 02i 20 511 10 314 08 858 033 17 620 61 000 0440 05 2 0 440 3RP Light Gray 245 22 4 382 822 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 105, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 3	20.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 084 02a 06 653 10 236 08 582 022 02i 20 511 10 314 08 858 006 24 370 13 690 0104 03 2 0 440 3RP Light Gray 89 29 4 180 284 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 84, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 22, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 6 ,	7.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 096 02a 06 653 10 236 08 582 026 02i 20 511 10 314 08 858 008 24 370 13 690 0113 03 2 0 440 3RP Light Gray 101 29 4 204 317 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 96, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 26, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8 ,	8.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 108 02a 06 653 10 236 08 582 030 02i 20 511 10 314 08 858 008 24 370 13 690 0126 03 2 0 440 3RP Light Gray 113 29 4 228 354 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 108, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	9.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 120 02a 06 653 10 236 08 582 034 02i 20 511 10 314 08 858 010 24 370 13 690 0135 03 2 0 440 3RP Light Gray 125 29 4 253 388 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 120, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 34, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	10.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 132 02a 06 653 10 236 08 582 036 02i 20 511 10 314 08 858 012 24 370 13 690 0147 03 2 0 440 3RP Light Gray 137 29 4 277 424 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 132, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 36, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	11.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 144 02a 06 653 10 236 08 582 040 02i 20 511 10 314 08 858 012 24 370 13 690 0169 04 2 0 440 3RP Light Gray 149 29 4 301 470 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 144, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 40, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	12.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 156 02a 06 653 10 236 08 582 044 02i 20 511 10 314 08 858 014 24 370 13 690 0178 04 2 0 440 3RP Light Gray 161 29 4 326 504 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 156, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 44, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	13.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 168 02a 06 653 10 236 08 582 048 02i 20 511 10 314 08 858 014 24 370 13 690 0189 04 2 0 440 3RP Light Gray 173 29 4 350 539 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 168, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 48, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	14.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 180 02a 06 653 10 236 08 582 052 02i 20 511 10 314 08 858 016 24 370 13 690 0201 04 2 0 440 3RP Light Gray 185 29 4 374 575 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 180, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 52, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	15.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 192 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 016 24 370 13 690 0223 05 2 0 440 3RP Light Gray 197 29 4 399 622 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	16.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 204 02a 06 653 10 236 08 582 058 02i 20 511 10 314 08 858 018 24 370 13 690 0233 05 2 0 440 3RP Light Gray 209 29 4 423 656 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 58, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	17.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 216 02a 06 653 10 236 08 582 062 02i 20 511 10 314 08 858 020 24 370 13 690 0243 05 2 0 440 3RP Light Gray 221 29 4 447 690 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 62, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	18.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 228 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 020 24 370 13 690 0264 06 2 0 440 3RP Light Gray 233 29 4 472 736 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	19.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 240 02a 06 653 10 236 08 582 070 02i 20 511 10 314 08 858 022 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 70, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 22	20.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 084 02a 06 653 10 236 08 582 033 02i 20 511 10 314 08 858 009 37 620 18 690 0154 03 2 0 440 3RP Light Gray 89 42 4 261 415 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 84, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 ,	7.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 096 02a 06 653 10 236 08 582 039 02i 20 511 10 314 08 858 012 37 620 18 690 0168 03 2 0 440 3RP Light Gray 101 42 4 297 465 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 96, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 39, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	8.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 108 02a 06 653 10 236 08 582 045 02i 20 511 10 314 08 858 012 37 620 18 690 0185 03 2 0 440 3RP Light Gray 113 42 4 332 517 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 108, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 45, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	9.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 120 02a 06 653 10 236 08 582 051 02i 20 511 10 314 08 858 015 37 620 18 690 0198 03 2 0 440 3RP Light Gray 125 42 4 367 565 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 120, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 51, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15	10.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 132 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 018 37 620 18 690 0213 03 2 0 440 3RP Light Gray 137 42 4 402 615 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 132, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	11.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 144 02a 06 653 10 236 08 582 060 02i 20 511 10 314 08 858 018 37 620 18 690 0243 04 2 0 440 3RP Light Gray 149 42 4 438 681 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 144, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 60, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	12.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 156 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 021 37 620 18 690 0264 04 2 0 440 3RP Light Gray 161 42 4 473 737 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 156, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	13.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 168 02a 06 653 10 236 08 582 072 02i 20 511 10 314 08 858 021 37 620 18 690 0277 04 2 0 440 3RP Light Gray 173 42 4 508 785 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 168, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 72, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	14.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 180 02a 06 653 10 236 08 582 078 02i 20 511 10 314 08 858 024 37 620 18 690 0292 04 2 0 440 3RP Light Gray 185 42 4 544 836 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 180, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 78, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	15.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 192 02a 06 653 10 236 08 582 081 02i 20 511 10 314 08 858 024 37 620 18 690 0307 04 2 0 440 3RP Light Gray 197 42 4 579 886 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 192, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 81, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	16.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 204 02a 06 653 10 236 08 582 087 02i 20 511 10 314 08 858 027 37 620 18 690 0337 05 2 0 440 3RP Light Gray 209 42 4 614 951 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 204, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 87, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27	17.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 216 02a 06 653 10 236 08 582 093 02i 20 511 10 314 08 858 030 37 620 18 690 0352 05 2 0 440 3RP Light Gray 221 42 4 649 1001 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 216, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 93, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	18.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 228 02a 06 653 10 236 08 582 099 02i 20 511 10 314 08 858 030 37 620 18 690 0367 05 2 0 440 3RP Light Gray 233 42 4 685 1052 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 228, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 99, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	19.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 240 02a 06 653 10 236 08 582 105 02i 20 511 10 314 08 858 033 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 240, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 105, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 3	20.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 084 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 018 31 620 43 500 0270 03 2 0 560 3RP Light Gray 89 36 4 224 494 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 84, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit	7.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 096 02a 06 653 10 236 08 582 078 02i 20 511 10 314 08 858 024 31 620 43 500 0291 03 2 0 560 3RP Light Gray 101 36 4 255 546 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 96, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 78, Model Max = 02i = OPzV12-200, Max Model Max Unit	8.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 108 02a 06 653 10 236 08 582 090 02i 20 511 10 314 08 858 024 31 620 43 500 0353 04 2 0 560 3RP Light Gray 113 36 4 285 638 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 108, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 90, Model Max = 02i = OPzV12-200, Max Model Max Uni	9.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 120 02a 06 653 10 236 08 582 102 02i 20 511 10 314 08 858 030 31 620 43 500 0375 04 2 0 560 3RP Light Gray 125 36 4 315 690 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 120, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 102, Model Max = 02i = OPzV12-200, Max Model Max Un	10.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 132 02a 06 653 10 236 08 582 108 02i 20 511 10 314 08 858 036 31 620 43 500 0397 04 2 0 560 3RP Light Gray 137 36 4 346 743 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 132, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 108, Model Max = 02i = OPzV12-200, Max Model Max Un	11.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 144 02a 06 653 10 236 08 582 120 02i 20 511 10 314 08 858 036 31 620 43 500 0418 04 2 0 560 3RP Light Gray 149 36 4 376 794 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 144, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 120, Model Max = 02i = OPzV12-200, Max Model Max Un	12.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 156 02a 06 653 10 236 08 582 132 02i 20 511 10 314 08 858 042 31 620 43 500 0481 05 2 0 560 3RP Light Gray 161 36 4 406 887 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 156, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 132, Model Max = 02i = OPzV12-200, Max Model Max Un	13.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 168 02a 06 653 10 236 08 582 144 02i 20 511 10 314 08 858 042 31 620 43 500 0502 05 2 0 560 3RP Light Gray 173 36 4 437 939 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 168, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 144, Model Max = 02i = OPzV12-200, Max Model Max Un	14.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 180 02a 06 653 10 236 08 582 156 02i 20 511 10 314 08 858 048 31 620 43 500 0524 05 2 0 560 3RP Light Gray 185 36 4 467 991 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 180, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 156, Model Max = 02i = OPzV12-200, Max Model Max Un	15.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 192 02a 06 653 10 236 08 582 162 02i 20 511 10 314 08 858 048 31 620 43 500 0546 05 2 0 560 3RP Light Gray 197 36 4 497 1043 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 192, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 162, Model Max = 02i = OPzV12-200, Max Model Max Un	16.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 204 02a 06 653 10 236 08 582 174 02i 20 511 10 314 08 858 054 31 620 43 500 0608 06 2 0 560 3RP Light Gray 209 36 4 528 1136 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 204, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 174, Model Max = 02i = OPzV12-200, Max Model Max Un	17.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 216 02a 06 653 10 236 08 582 186 02i 20 511 10 314 08 858 060 31 620 43 500 0630 06 2 0 560 3RP Light Gray 221 36 4 558 1188 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 216, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 186, Model Max = 02i = OPzV12-200, Max Model Max Un	18.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 228 02a 06 653 10 236 08 582 198 02i 20 511 10 314 08 858 060 31 620 43 500 0652 06 2 0 560 3RP Light Gray 233 36 4 588 1240 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 228, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 198, Model Max = 02i = OPzV12-200, Max Model Max Un	19.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 240 02a 06 653 10 236 08 582 210 02i 20 511 10 314 08 858 066 31 620 43 500 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 240, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 210, Model Max = 02i = OPzV12-200, Max Model Max Un	20.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 084 02d 20 944 08 149 08 622 009 02i 20 510 10 310 08 860 009 22 330 59 000 0293 03 2 0 560 3RP Light Gray 89 27 4 167 460 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 9, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 , Rack W =	7.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 096 02d 20 944 08 149 08 622 012 02i 20 510 10 310 08 860 012 22 330 59 000 0302 03 2 0 560 3RP Light Gray 101 27 4 190 492 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack W	8.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 108 02d 20 944 08 149 08 622 012 02i 20 510 10 310 08 860 012 22 330 59 000 0311 03 2 0 560 3RP Light Gray 113 27 4 213 524 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack	9.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 120 02d 20 944 08 149 08 622 015 02i 20 510 10 310 08 860 015 22 330 59 000 0390 04 2 0 560 3RP Light Gray 125 27 4 235 625 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15 , Rack	10.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 132 02d 20 944 08 149 08 622 015 02i 20 510 10 310 08 860 018 22 330 59 000 0399 04 2 0 560 3RP Light Gray 137 27 4 258 657 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	11.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 144 02d 20 944 08 149 08 622 018 02i 20 510 10 310 08 860 018 22 330 59 000 0409 04 2 0 560 3RP Light Gray 149 27 4 280 689 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 18, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	12.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 156 02d 20 944 08 149 08 622 021 02i 20 510 10 310 08 860 021 22 330 59 000 0487 05 2 0 560 3RP Light Gray 161 27 4 303 790 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	13.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 168 02d 20 944 08 149 08 622 021 02i 20 510 10 310 08 860 021 22 330 59 000 0496 05 2 0 560 3RP Light Gray 173 27 4 326 822 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	14.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 180 02d 20 944 08 149 08 622 024 02i 20 510 10 310 08 860 024 22 330 59 000 0506 05 2 0 560 3RP Light Gray 185 27 4 348 854 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	15.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 192 02d 20 944 08 149 08 622 024 02i 20 510 10 310 08 860 024 22 330 59 000 0550 06 2 0 560 3RP Light Gray 197 27 4 371 921 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	16.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 204 02d 20 944 08 149 08 622 027 02i 20 510 10 310 08 860 027 22 330 59 000 0580 06 2 0 560 3RP Light Gray 209 27 4 394 974 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27 , Rack	17.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 216 02d 20 944 08 149 08 622 027 02i 20 510 10 310 08 860 030 22 330 59 000 0600 07 2 0 560 3RP Light Gray 221 27 4 416 1016 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	18.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 228 02d 20 944 08 149 08 622 030 02i 20 510 10 310 08 860 030 22 330 59 000 0650 07 2 0 560 3RP Light Gray 233 27 4 439 1089 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	19.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 240 02d 20 944 08 149 08 622 033 02i 20 510 10 310 08 860 033 22 330 59 000 0700 08 2 0 560 3RP Light Gray 245 27 4 462 1162 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 33 , Rack	20.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 084 02d 06 653 10 236 08 582 009 02i 06 653 10 236 08 307 009 22 330 59 000 0293 03 2 0 560 3RP Light Gray 89 27 4 167 460 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 9, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 , Rack W =	7.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 096 02d 06 653 10 236 08 582 012 02i 06 653 10 236 08 307 012 22 330 59 000 0302 03 2 0 560 3RP Light Gray 101 27 4 190 492 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack W	8.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 108 02d 06 653 10 236 08 582 012 02i 06 653 10 236 08 307 012 22 330 59 000 0311 03 2 0 560 3RP Light Gray 113 27 4 213 524 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack	9.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 120 02d 06 653 10 236 08 582 015 02i 06 653 10 236 08 307 015 22 330 59 000 0390 04 2 0 560 3RP Light Gray 125 27 4 235 625 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15 , Rack	10.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 132 02d 06 653 10 236 08 582 015 02i 06 653 10 236 08 307 018 22 330 59 000 0399 04 2 0 560 3RP Light Gray 137 27 4 258 657 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	11.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 144 02d 06 653 10 236 08 582 018 02i 06 653 10 236 08 307 018 22 330 59 000 0409 04 2 0 560 3RP Light Gray 149 27 4 280 689 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 18, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	12.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 156 02d 06 653 10 236 08 582 021 02i 06 653 10 236 08 307 021 22 330 59 000 0487 05 2 0 560 3RP Light Gray 161 27 4 303 790 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	13.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 168 02d 06 653 10 236 08 582 021 02i 06 653 10 236 08 307 021 22 330 59 000 0496 05 2 0 560 3RP Light Gray 173 27 4 326 822 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	14.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 180 02d 06 653 10 236 08 582 024 02i 06 653 10 236 08 307 024 22 330 59 000 0506 05 2 0 560 3RP Light Gray 185 27 4 348 854 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	15.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 192 02d 06 653 10 236 08 582 024 02i 06 653 10 236 08 307 024 22 330 59 000 0550 06 2 0 560 3RP Light Gray 197 27 4 371 921 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	16.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 204 02d 06 653 10 236 08 582 027 02i 06 653 10 236 08 307 027 22 330 59 000 0580 06 2 0 560 3RP Light Gray 209 27 4 394 974 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27 , Rack	17.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 216 02d 06 653 10 236 08 582 027 02i 06 653 10 236 08 307 030 22 330 59 000 0600 07 2 0 560 3RP Light Gray 221 27 4 416 1016 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	18.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 228 02d 06 653 10 236 08 582 030 02i 06 653 10 236 08 307 030 22 330 59 000 0650 07 2 0 560 3RP Light Gray 233 27 4 439 1089 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	19.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 240 02d 06 653 10 236 08 582 033 02i 06 653 10 236 08 307 033 22 330 59 000 0700 08 2 0 560 3RP Light Gray 245 27 4 462 1162 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 33 , Rack	20.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 168 02a 06 653 10 236 08 582 024 02i 20 511 10 314 08 858 007 12 000 11 190 0112 04 2 0 440 3RP Light Gray 173 17 4 202 314 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 168, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 7	14.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 180 02a 06 653 10 236 08 582 026 02i 20 511 10 314 08 858 008 12 000 11 190 0119 04 2 0 440 3RP Light Gray 185 17 4 217 336 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 180, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 26, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	15.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 192 02a 06 653 10 236 08 582 027 02i 20 511 10 314 08 858 008 12 000 11 190 0125 05 2 0 440 3RP Light Gray 197 17 4 231 356 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 192, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	16.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 204 02a 06 653 10 236 08 582 029 02i 20 511 10 314 08 858 009 12 000 11 190 0135 05 2 0 440 3RP Light Gray 209 17 4 245 380 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 204, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 29, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9	17.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 216 02a 06 653 10 236 08 582 031 02i 20 511 10 314 08 858 010 12 000 11 190 0145 05 2 0 440 3RP Light Gray 221 17 4 259 404 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 216, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 31, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	18.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 228 02a 06 653 10 236 08 582 033 02i 20 511 10 314 08 858 010 12 000 11 190 0155 05 2 0 440 3RP Light Gray 233 17 4 273 428 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 228, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	19.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 240 02a 06 653 10 236 08 582 035 02i 20 511 10 314 08 858 011 12 000 11 190 0165 05 2 0 440 3RP Light Gray 245 17 4 287 452 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 240, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 35, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 11	20.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 084 02a 06 653 10 236 08 582 022 02i 20 511 10 314 08 858 006 17 620 32 690 0128 03 2 0 560 3RP Light Gray 89 22 4 138 266 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 84, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 22, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 6 ,	7.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 096 02a 06 653 10 236 08 582 026 02i 20 511 10 314 08 858 008 17 620 32 690 0137 03 2 0 560 3RP Light Gray 101 22 4 157 294 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 96, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 26, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8 ,	8.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 108 02a 06 653 10 236 08 582 030 02i 20 511 10 314 08 858 008 17 620 32 690 0148 03 2 0 560 3RP Light Gray 113 22 4 176 324 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 108, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	9.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 120 02a 06 653 10 236 08 582 034 02i 20 511 10 314 08 858 010 17 620 32 690 0159 03 2 0 560 3RP Light Gray 125 22 4 195 354 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 120, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 34, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	10.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 132 02a 06 653 10 236 08 582 036 02i 20 511 10 314 08 858 012 17 620 32 690 0161 03 2 0 560 3RP Light Gray 137 22 4 213 374 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 132, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 36, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	11.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 144 02a 06 653 10 236 08 582 040 02i 20 511 10 314 08 858 012 17 620 32 690 0199 04 2 0 560 3RP Light Gray 149 22 4 232 431 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 144, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 40, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	12.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 156 02a 06 653 10 236 08 582 044 02i 20 511 10 314 08 858 014 17 620 32 690 0209 04 2 0 560 3RP Light Gray 161 22 4 251 460 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 156, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 44, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	13.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 168 02a 06 653 10 236 08 582 048 02i 20 511 10 314 08 858 014 17 620 32 690 0217 04 2 0 560 3RP Light Gray 173 22 4 270 487 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 168, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 48, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	14.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 180 02a 06 653 10 236 08 582 052 02i 20 511 10 314 08 858 016 17 620 32 690 0228 04 2 0 560 3RP Light Gray 185 22 4 288 516 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 180, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 52, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	15.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 192 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 016 17 620 32 690 0260 05 2 0 560 3RP Light Gray 197 22 4 307 567 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	16.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 204 02a 06 653 10 236 08 582 058 02i 20 511 10 314 08 858 018 17 620 32 690 0270 05 2 0 560 3RP Light Gray 209 22 4 326 596 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 58, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	17.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 216 02a 06 653 10 236 08 582 062 02i 20 511 10 314 08 858 020 17 620 32 690 0278 05 2 0 560 3RP Light Gray 221 22 4 344 622 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 62, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	18.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 228 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 020 17 620 32 690 0290 05 2 0 560 3RP Light Gray 233 22 4 363 653 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	19.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 240 02a 06 653 10 236 08 582 070 02i 20 511 10 314 08 858 022 17 620 32 690 0299 05 2 0 560 3RP Light Gray 245 22 4 382 681 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 70, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 22	20.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 084 02a 06 653 10 236 08 582 033 02i 20 511 10 314 08 858 009 17 620 61 000 0185 03 2 0 440 3RP Light Gray 89 22 4 138 323 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 ,	7.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 096 02a 06 653 10 236 08 582 039 02i 20 511 10 314 08 858 012 17 620 61 000 0204 03 2 0 440 3RP Light Gray 101 22 4 157 361 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 39, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	8.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 108 02a 06 653 10 236 08 582 045 02i 20 511 10 314 08 858 012 17 620 61 000 0214 03 2 0 440 3RP Light Gray 113 22 4 176 390 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 45, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	9.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 120 02a 06 653 10 236 08 582 051 02i 20 511 10 314 08 858 015 17 620 61 000 0229 03 2 0 440 3RP Light Gray 125 22 4 195 424 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 51, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15	10.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 132 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 018 17 620 61 000 0244 03 2 0 440 3RP Light Gray 137 22 4 213 457 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	11.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 144 02a 06 653 10 236 08 582 060 02i 20 511 10 314 08 858 018 17 620 61 000 0289 04 2 0 440 3RP Light Gray 149 22 4 232 521 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 60, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	12.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 156 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 021 17 620 61 000 0305 04 2 0 440 3RP Light Gray 161 22 4 251 556 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	13.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 168 02a 06 653 10 236 08 582 072 02i 20 511 10 314 08 858 021 17 620 61 000 0320 04 2 0 440 3RP Light Gray 173 22 4 270 590 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 72, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	14.000 x 17.620 x 8.86 in	2 batteries
