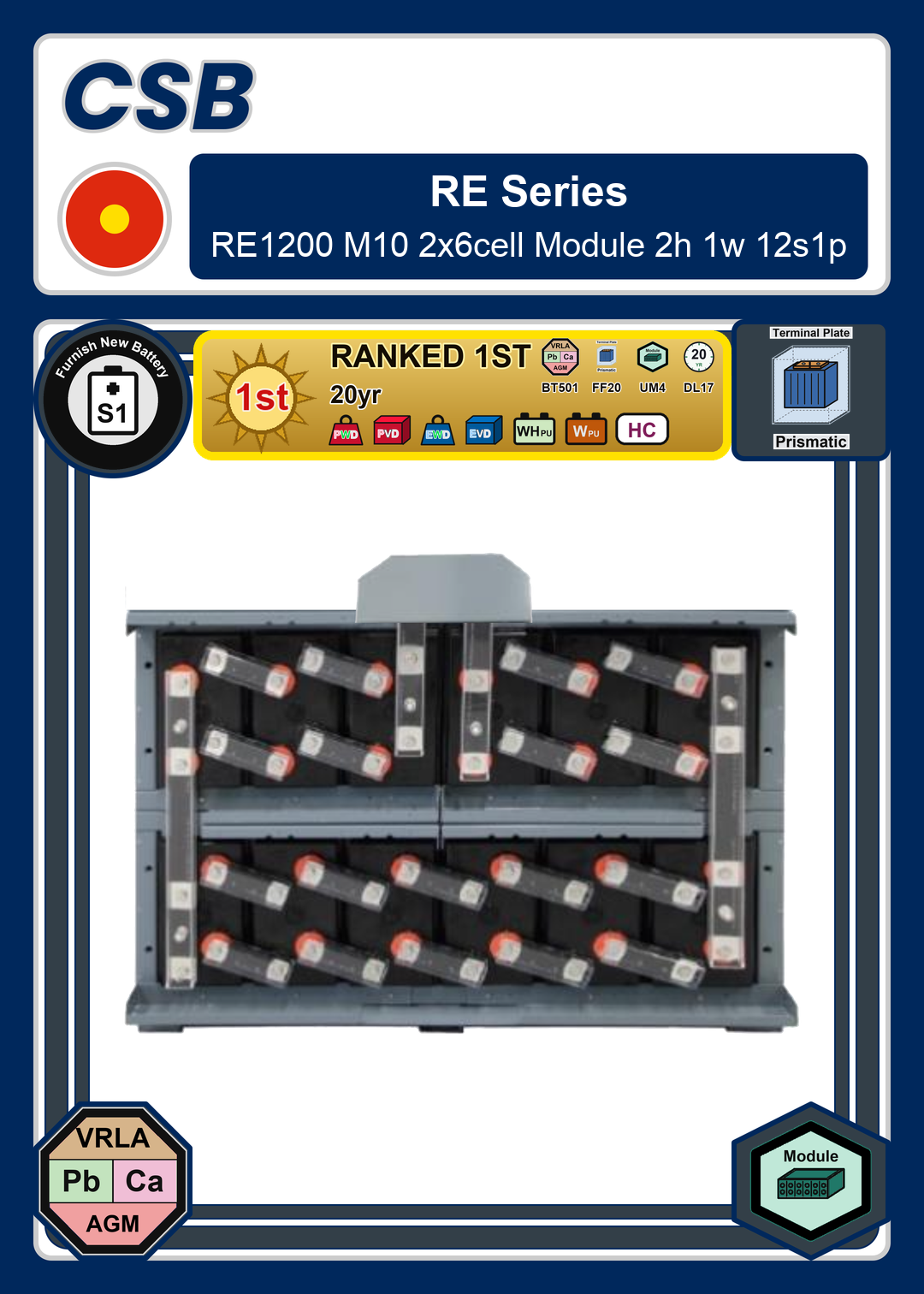

Furnish New Battery CSB RE Series RE1200 M10 2x6cell Module 2h 1w 12s1p
Technology: Pb_VLA_Flooded_gt.pngFurnish New Battery CSB RE Series RE1200 M10 2x6cell Module 2h 1w 12s1p
$16,539.60
Material Value Cost Due from Customer.
Furnish New Battery CSB RE Series RE1200 M10 2x6cell Module 2h 1w 12s1p

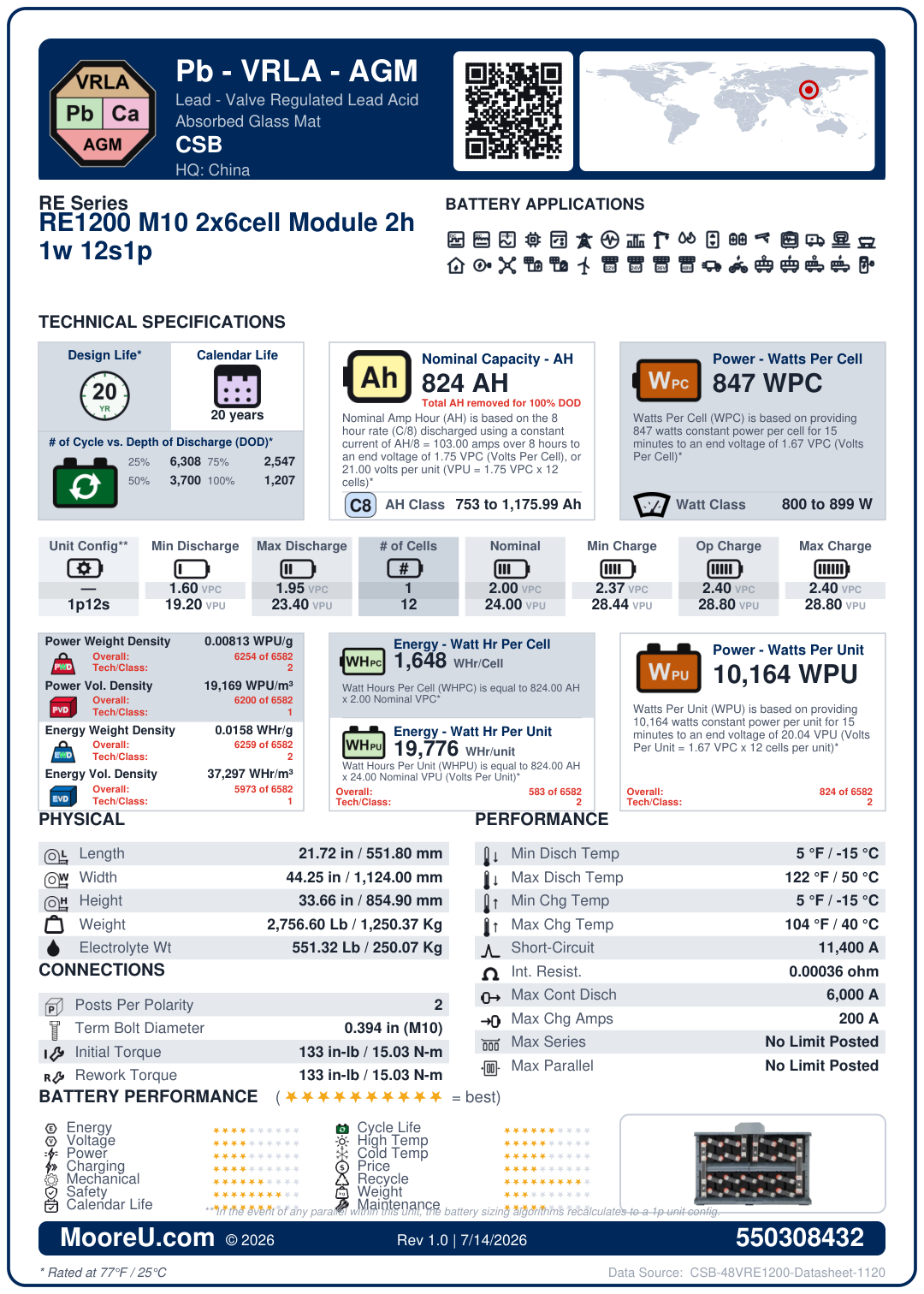

| Battery Model | CSB RE Series RE1200 M10 2x6cell Module 2h 1w 12s1p |
|---|---|
| Adjustment | 1 |
| AH Per String | 824 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 12 |
| Nominal VPC | 2 |
| Model KWH | 20 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | -15°C to 40°C |
| ISC Amps | 11400 |
| Internal Resistance | 0.00036 Ohms |
| Dimensions (L x W x H) | 21.72440943 x 44.25196846 x 33.65748028 in |
| Weight | 2756.6 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.3937 in (M10 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 6000 Amps |
| Max Charge Amps | 200 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 847 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 551.32 lbs |
