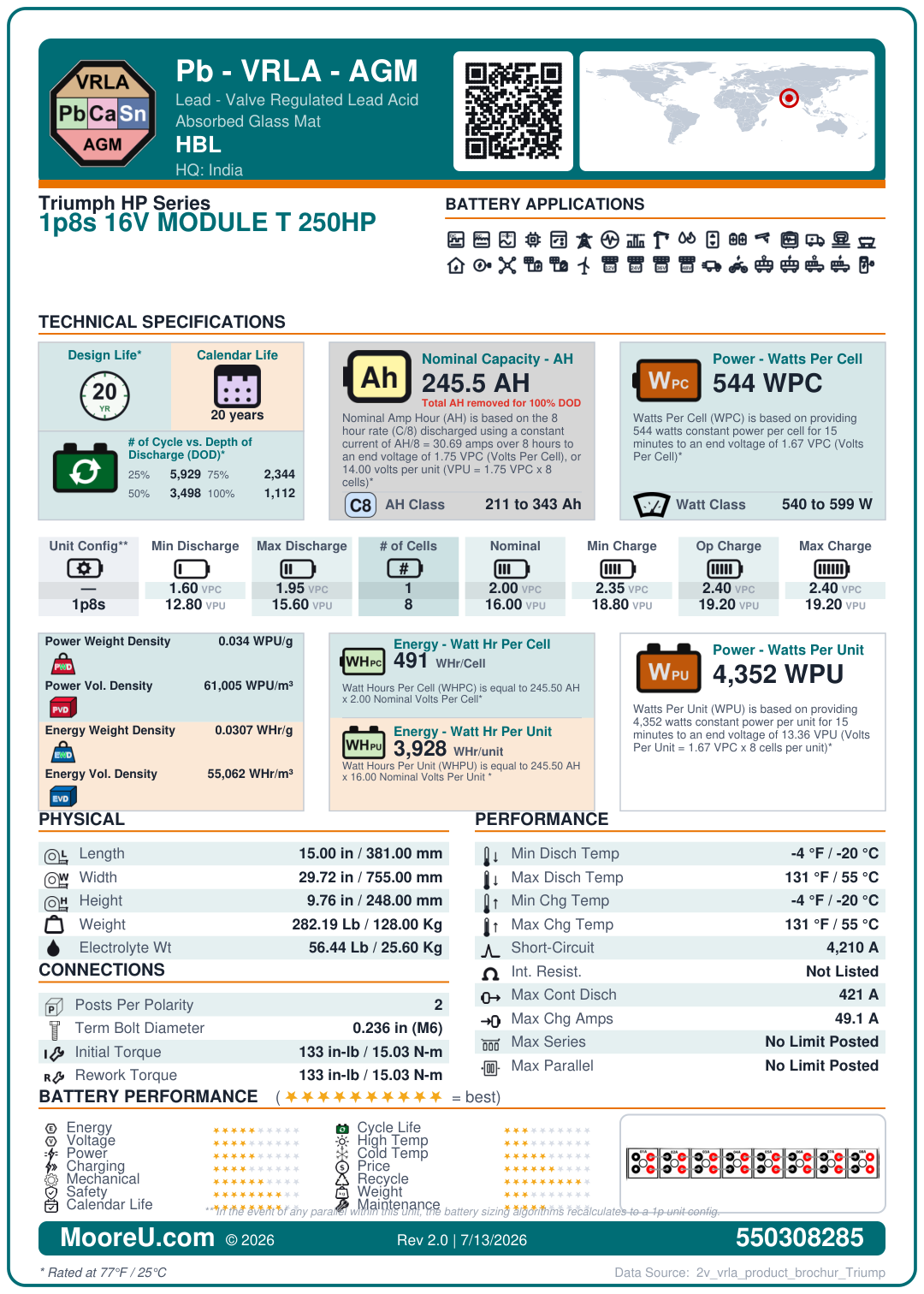

Front of card

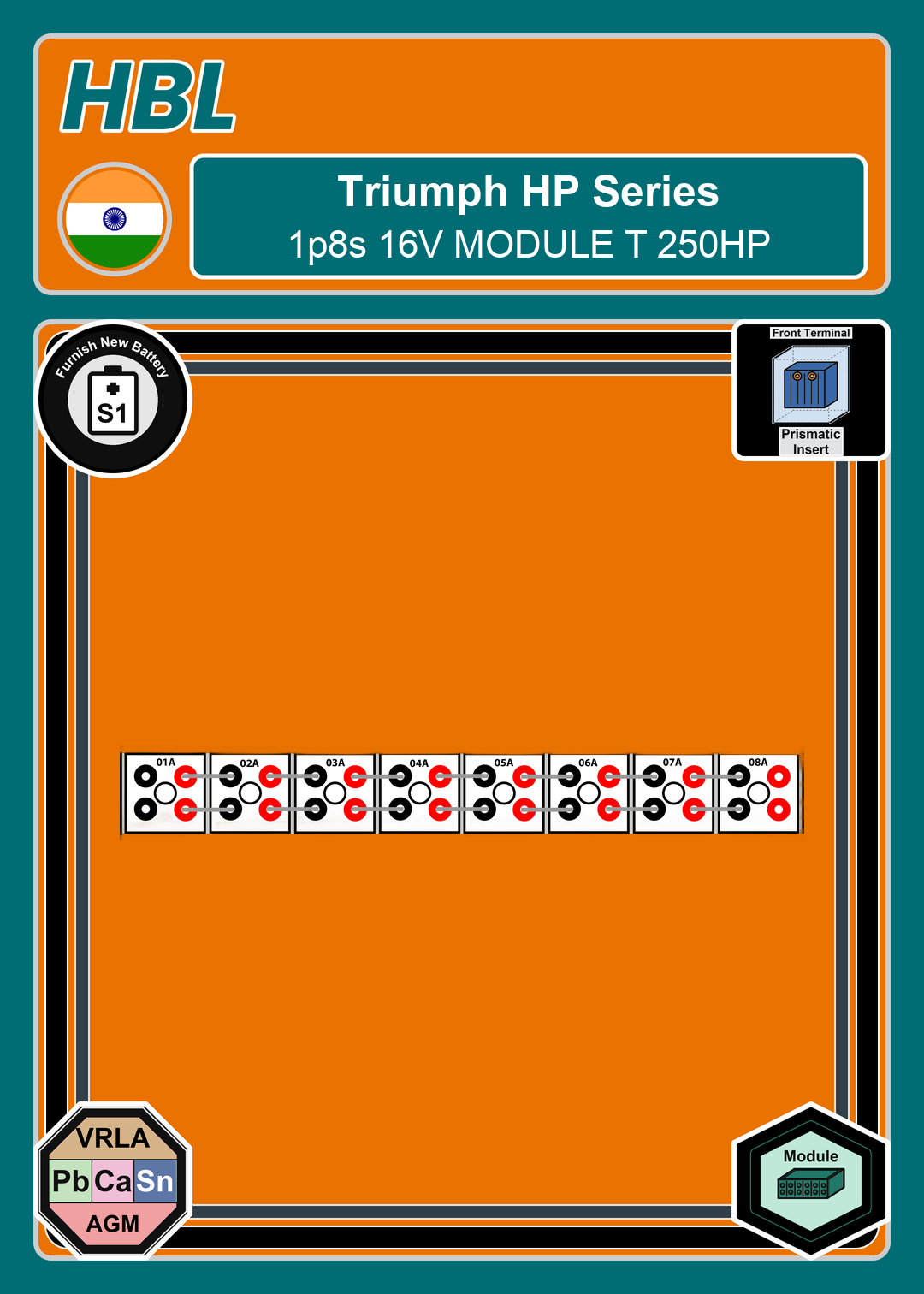

Back of card
Furnish New Battery HBL Triumph HP Series 1p8s 16V MODULE T 250HP
Technology: Lead_Acid_Over120lbsFurnish New Battery HBL Triumph HP Series 1p8s 16V MODULE T 250HP
$1,693.14
Material Value Cost Due from Customer.
Furnish New Battery HBL Triumph HP Series 1p8s 16V MODULE T 250HP
| Battery Model | HBL Triumph HP Series 1p8s 16V MODULE T 250HP |
|---|---|
| Adjustment | 1 |
| AH Per String | 245.5 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 8 |
| Nominal VPC | 2 |
| Model KWH | 4 |
| Charge VPC | 2.35 (Min: 2.23, Max: 2.35) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 4210 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 15 x 29.7244 x 9.7637 in |
| Weight | 282.191 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 421 Amps |
| Max Charge Amps | 49.1 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 544 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 56.4382 lbs |
