Furnish New Battery HBL Triumph HP Series 4p1s 2V Single Cell No Module 4Cells T 1500HP T 5800HP
Technology: Lead_Acid_Over120lbsFurnish New Battery HBL Triumph HP Series 4p1s 2V Single Cell No Module 4Cells T 1500HP T 5800HP
$4,695.84
Material Value Cost Due from Customer.
Furnish New Battery HBL Triumph HP Series 4p1s 2V Single Cell No Module 4Cells T 1500HP T 5800HP

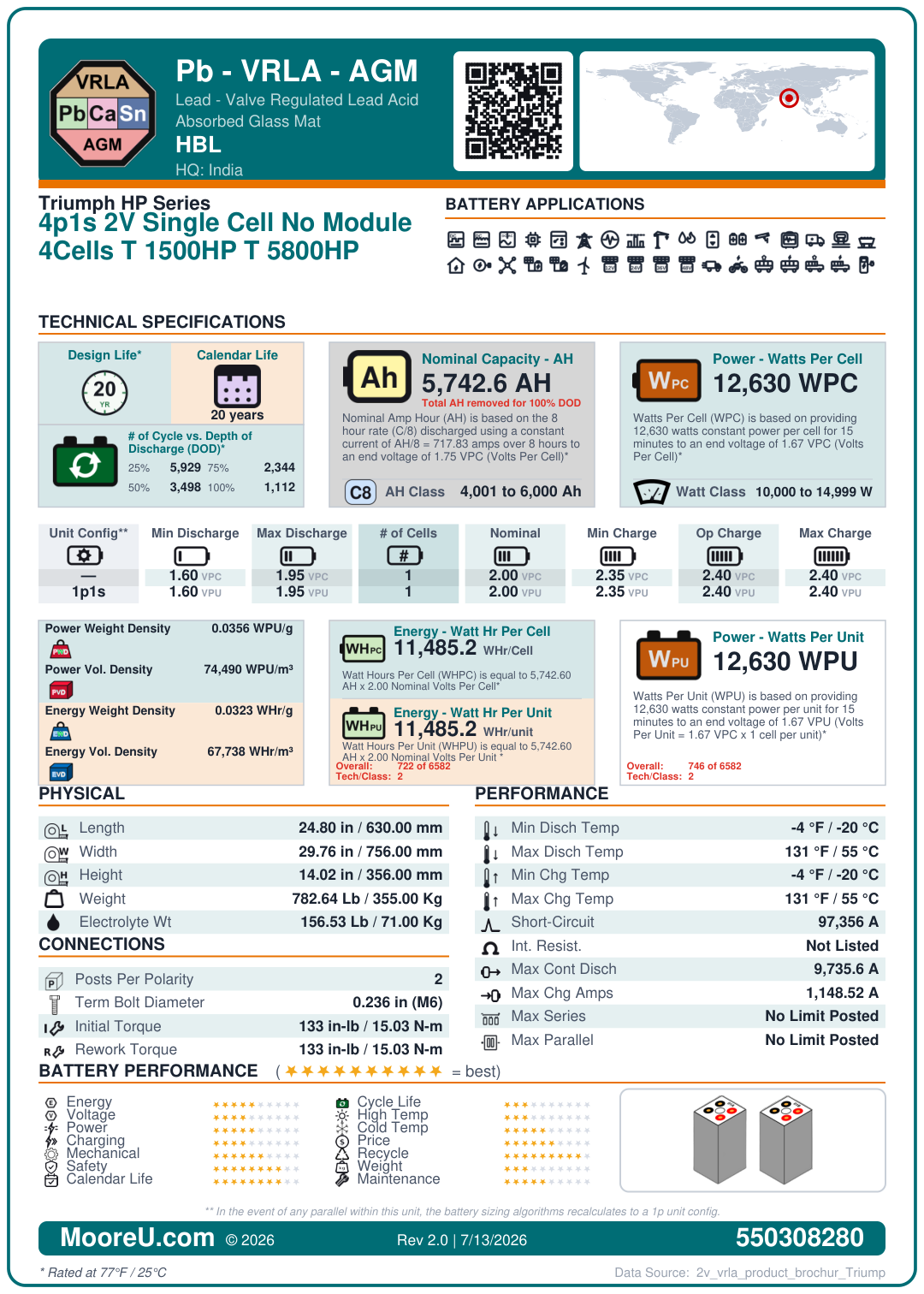

| Battery Model | HBL Triumph HP Series 4p1s 2V Single Cell No Module 4Cells T 1500HP T 5800HP |
|---|---|
| Adjustment | 1 |
| AH Per String | 5742.6 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 11 |
| Charge VPC | 2.35 (Min: 2.23, Max: 2.35) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 97356 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 24.803 x 29.7636 x 14.0157 in |
| Weight | 782.64 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 9735.6 Amps |
| Max Charge Amps | 1148.52 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 12630 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 156.528 lbs |
