Front of card
Back of card

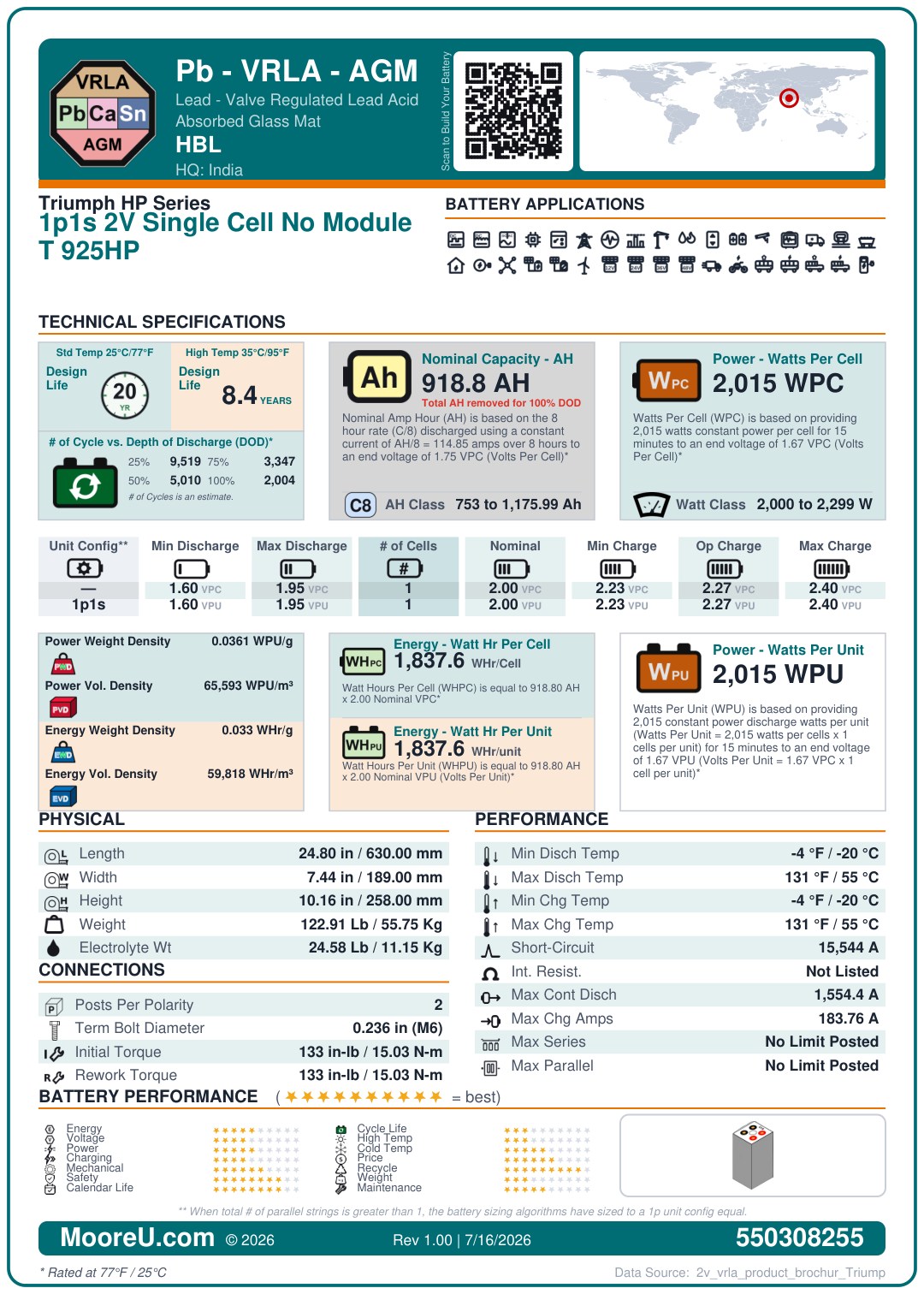

Furnish New Battery HBL Triumph HP Series 1p1s 2V Single Cell No Module T 925HP
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery HBL Triumph HP Series 1p1s 2V Single Cell No Module T 925HP
$614.55
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery HBL Triumph HP Series 1p1s 2V Single Cell No Module T 925HP
| Battery Model | HBL Triumph HP Series 1p1s 2V Single Cell No Module T 925HP |
|---|---|
| Adjustment | 1 |
| AH Per String | 918.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.35 (Min: 2.23, Max: 2.35) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 15544 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 24.803 x 7.4409 x 10.1574803 in |
| Weight | 122.907565 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 1554.4 Amps |
| Max Charge Amps | 183.76 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2015 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 24.581513 lbs |
