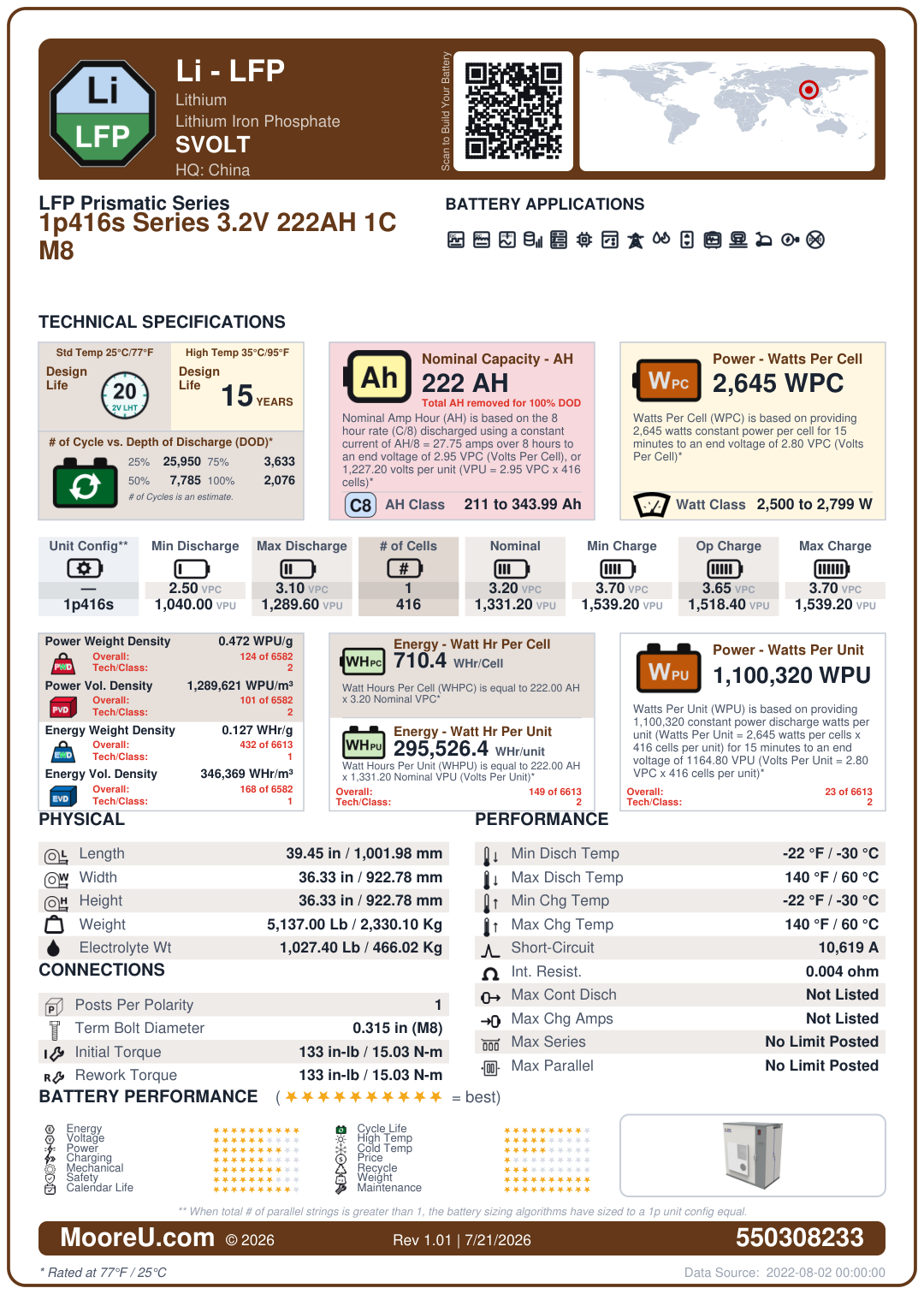

Furnish New Battery SVOLT LFP Prismatic 1p416s Series 3 2V 222AH 1C M8
Technology: Li_LFP.pngFurnish New Battery SVOLT LFP Prismatic 1p416s Series 3 2V 222AH 1C M8
$168.75
Build my Battery
Recycle My Battery
Furnish New Battery SVOLT LFP Prismatic 1p416s Series 3 2V 222AH 1C M8
| Battery Model | SVOLT LFP Prismatic 1p416s Series 3 2V 222AH 1C M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 222 |
| AH Per String Rating | 8 hr @ 2.95 VPC |
| Cells Per Unit | 416 |
| Nominal VPC | 3.2 |
| Model KWH | 296 |
| Charge VPC | 3.65 (Min: 3.65, Max: 3.65) |
| Discharge VPC | Min: 2.8, Max: 3.1 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -30°C to 60°C |
| Charge Temp Range | -30°C to 60°C |
| ISC Amps | 10619 |
| Internal Resistance | 0.004 Ohms |
| Dimensions (L x W x H) | 39.448 x 36.33 x 36.33 in |
| Weight | 5137 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 0 Amps |
| Max Charge Amps | 0 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2645 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 1027.4 lbs |
