Furnish New Battery Relion LFP Cylindrical Series 51 2V 300AH RB48V300 M8
Technology: Li_LFP.pngFurnish New Battery Relion LFP Cylindrical Series 51 2V 300AH RB48V300 M8
$326.12
Build my Battery
Recycle My Battery

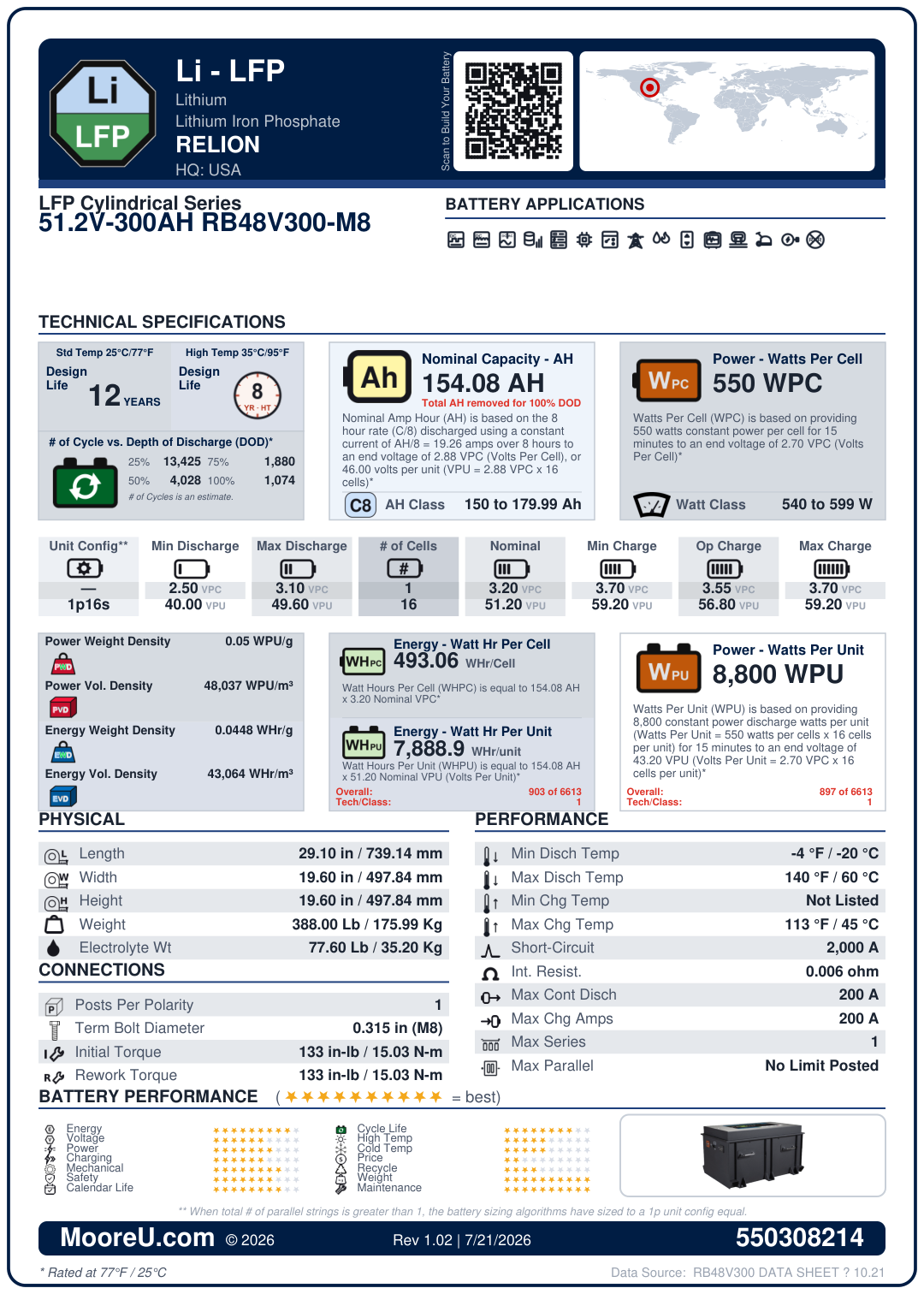

Furnish New Battery Relion LFP Cylindrical Series 51 2V 300AH RB48V300 M8
| Battery Model | Relion LFP Cylindrical Series 51 2V 300AH RB48V300 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 154.08 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.2 |
| Model KWH | 8 |
| Charge VPC | 3.85 (Min: 3.85, Max: 3.925) |
| Discharge VPC | Min: 2.7, Max: 3.05 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 45°C |
| ISC Amps | 2000 |
| Internal Resistance | 0.006 Ohms |
| Dimensions (L x W x H) | 29.1 x 19.6 x 19.6 in |
| Weight | 388 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 200 Amps |
| Max Charge Amps | 200 Amps |
| Max In Series / Parallel | 1 / 0 |
| Watts Per Cell (15min 1.67) | 550 |
| Watts Per Cell Rating | 15 min @ 2.7 VPC |
| Weight of Electrolyte | 77.6 lbs |
