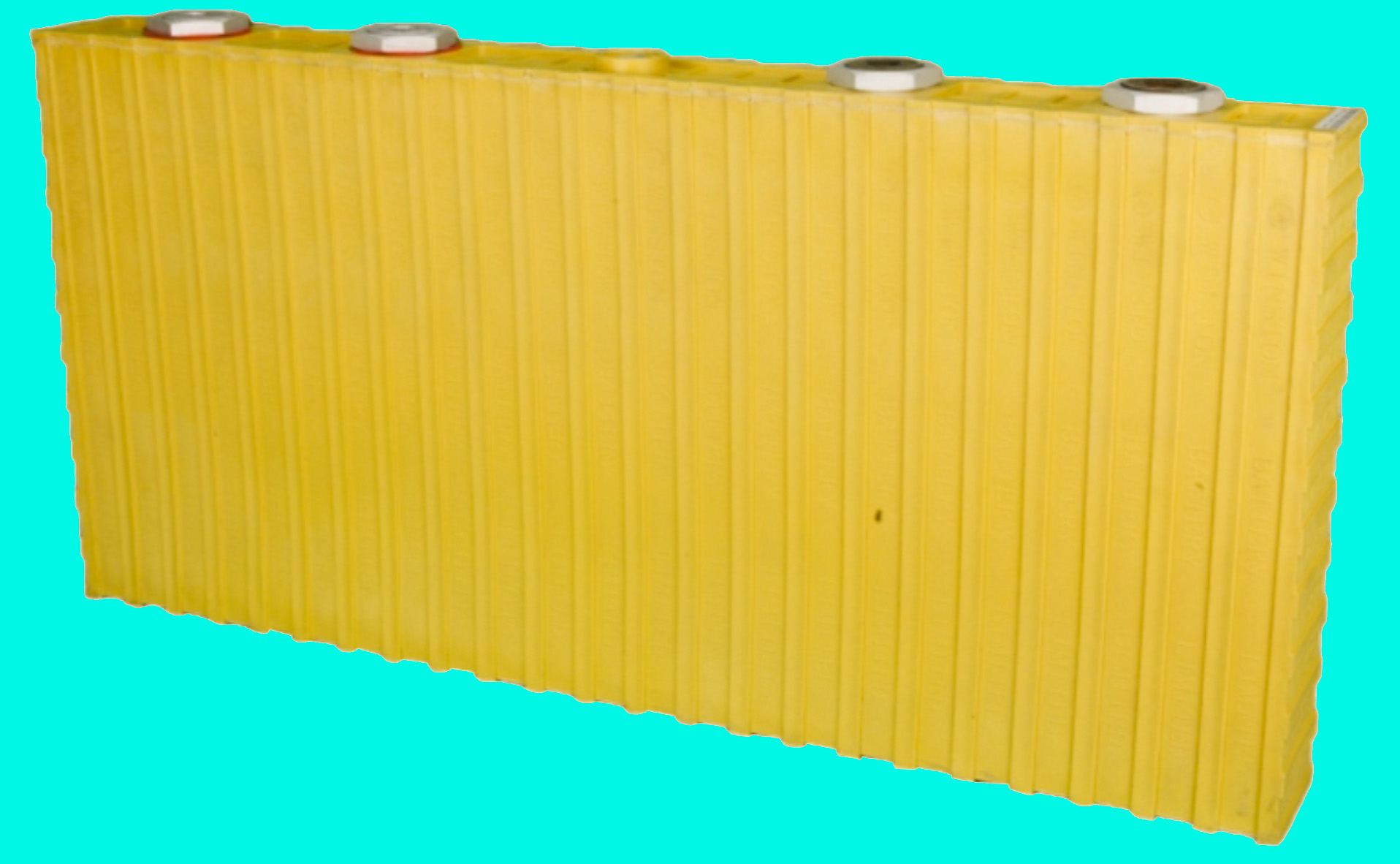

Furnish New Battery Thundersky Winston LFP Prismatic Series 700AH 3 2V M8
Technology: Lithium_Ion_LFPFurnish New Battery Thundersky Winston LFP Prismatic Series 700AH 3 2V M8
$2,987.71
Furnish New Battery Thundersky Winston LFP Prismatic Series 700AH 3 2V M8
| Battery Model | Thundersky Winston LFP Prismatic Series 700AH 3 2V M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 700 |
| AH Per String Rating | 8 hr @ 2.9 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.2 |
| Model KWH | 2 |
| Charge VPC | 3.625 (Min: 3.625, Max: 3.625) |
| Discharge VPC | Min: 2.7, Max: 3.1 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -45°C to 80°C |
| Charge Temp Range | -45°C to 80°C |
| ISC Amps | 21000 |
| Internal Resistance | 0.0003 Ohms |
| Dimensions (L x W x H) | 24.685 x 2.637 x 2.637 in |
| Weight | 46.966 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 2100 Amps |
| Max Charge Amps | 350 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 5880 |
| Watts Per Cell Rating | 15 min @ 2.7 VPC |
| Weight of Electrolyte | 9.3932 lbs |
