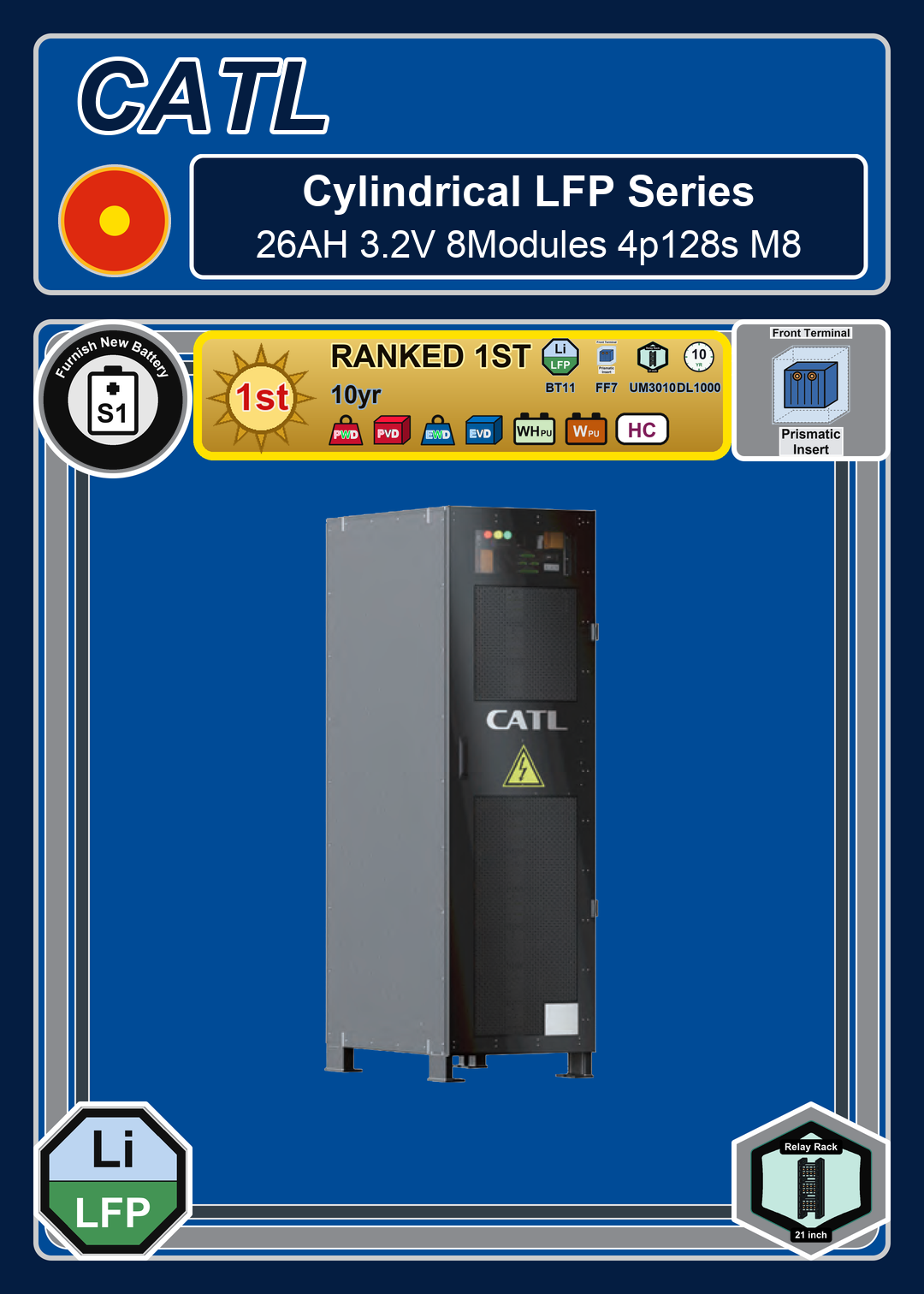

Furnish New Battery CATL Cylindrical LFP Series 26AH 3 2V 8Modules 4p128s M8
Technology: Li_LFP.pngFurnish New Battery CATL Cylindrical LFP Series 26AH 3 2V 8Modules 4p128s M8
$29,020.80
Build my Battery
Recycle My Battery
Furnish New Battery CATL Cylindrical LFP Series 26AH 3 2V 8Modules 4p128s M8

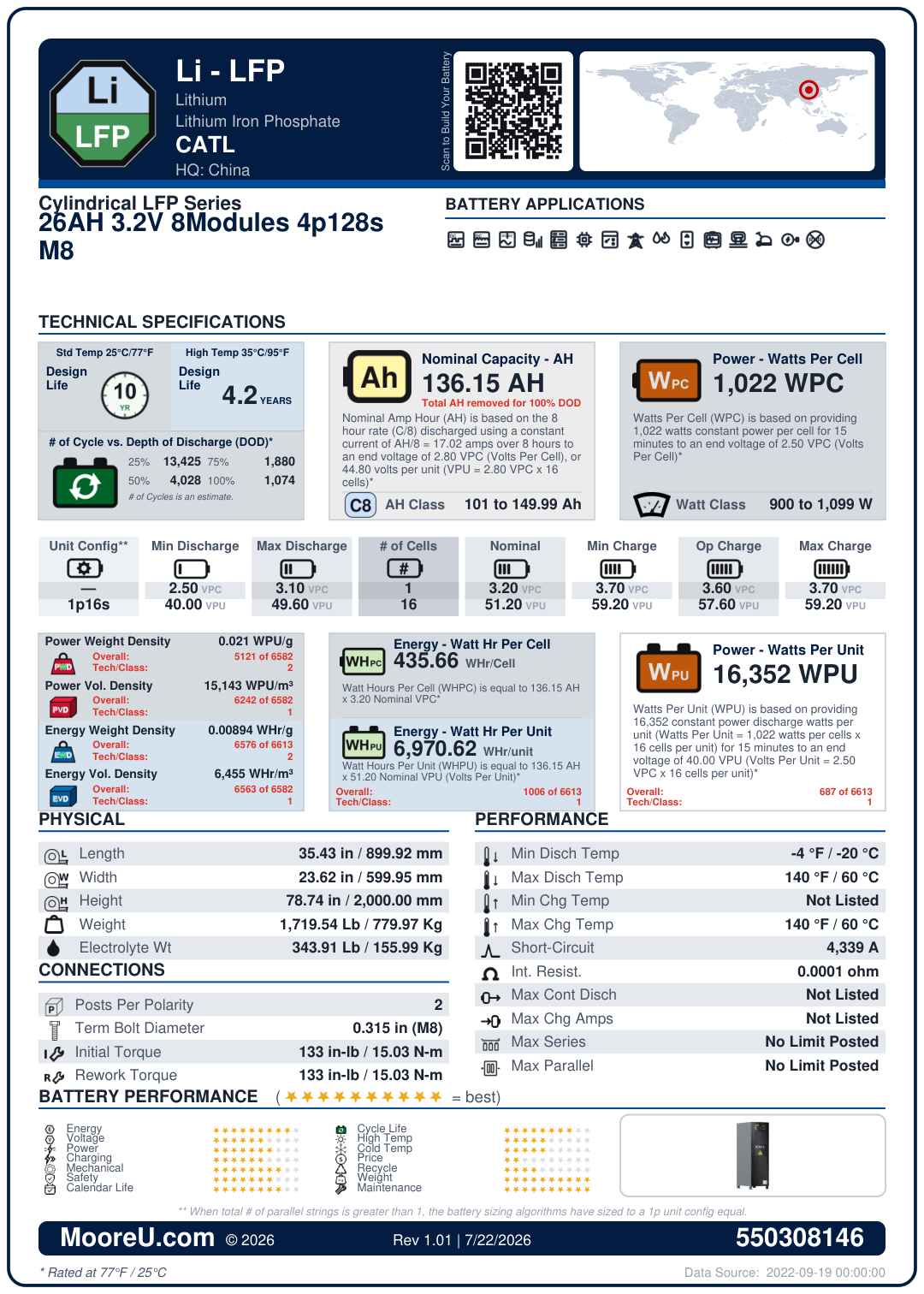

| Battery Model | CATL Cylindrical LFP Series 26AH 3 2V 8Modules 4p128s M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 136.145 |
| AH Per String Rating | 8 hr @ 2.8 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.2 |
| Model KWH | 7 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.5, Max: 3.1 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 60°C |
| ISC Amps | 4339 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 35.43 x 23.62 x 78.74 in |
| Weight | 1719.536 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 0 Amps |
| Max Charge Amps | 0 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1022 |
| Watts Per Cell Rating | 15 min @ 2.5 VPC |
| Weight of Electrolyte | 343.9072 lbs |
