Furnish New Battery CATL Cylindrical LFP Series 20AH 3 2V Module 4p16s Plug
Technology: Li_LFP.pngFurnish New Battery CATL Cylindrical LFP Series 20AH 3 2V Module 4p16s Plug
$8,045.31
Build my Battery
Recycle My Battery

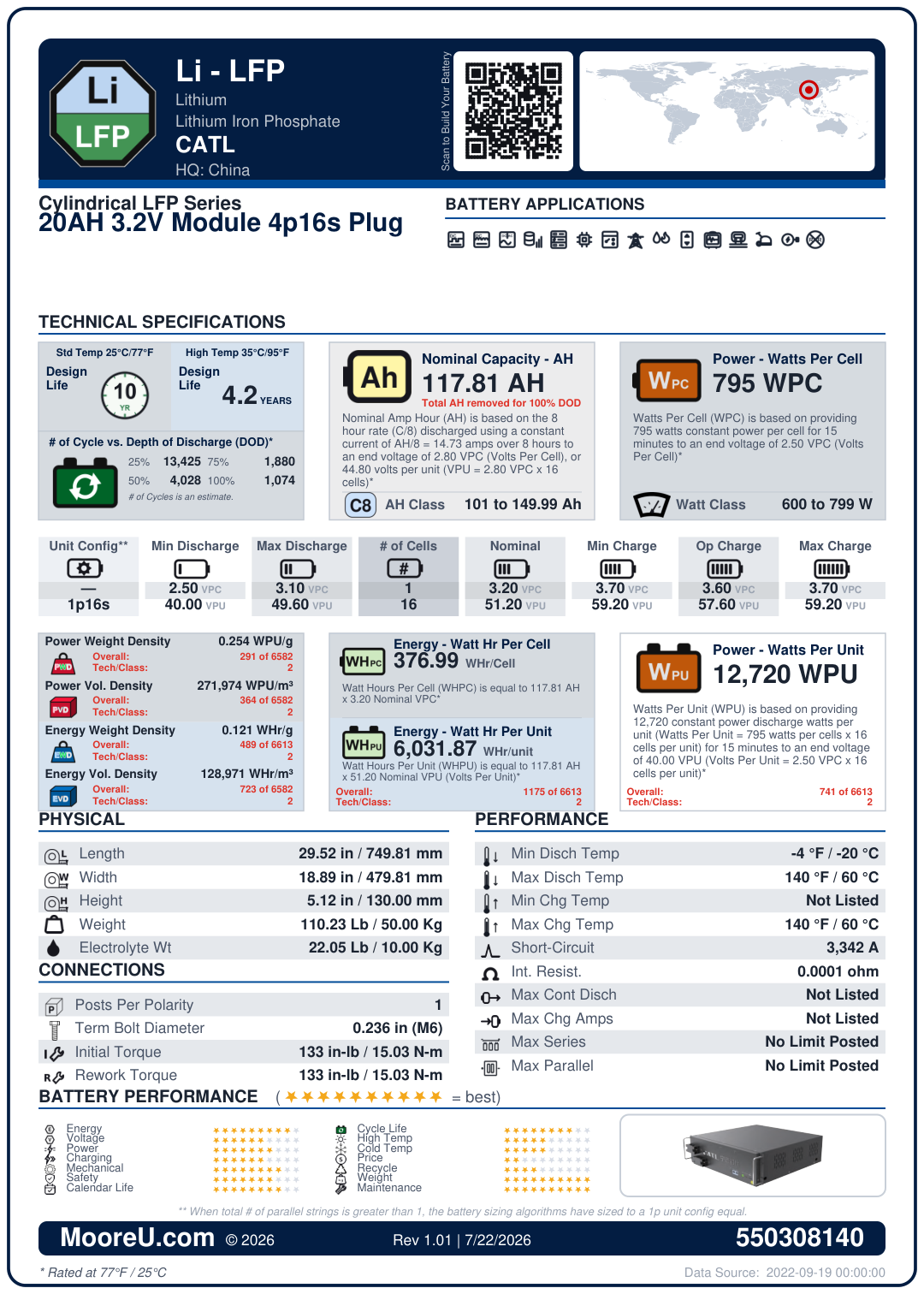

Furnish New Battery CATL Cylindrical LFP Series 20AH 3 2V Module 4p16s Plug
| Battery Model | CATL Cylindrical LFP Series 20AH 3 2V Module 4p16s Plug |
|---|---|
| Adjustment | 1 |
| AH Per String | 117.81 |
| AH Per String Rating | 8 hr @ 2.8 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.2 |
| Model KWH | 6 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.5, Max: 3.1 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 60°C |
| ISC Amps | 3342 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 29.52 x 18.89 x 5.11811 in |
| Weight | 110.231 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 0 Amps |
| Max Charge Amps | 0 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 795 |
| Watts Per Cell Rating | 15 min @ 2.5 VPC |
| Weight of Electrolyte | 22.0462 lbs |
