Furnish New Battery ZincFive BC2 Cabinet HV Series 38s1p ZF 38A6SU022KB1 LF000 M8
Technology: Ni_Zn_Co.pngFurnish New Battery ZincFive BC2 Cabinet HV Series 38s1p ZF 38A6SU022KB1 LF000 M8
$682.46
Build my Battery
Recycle My Battery

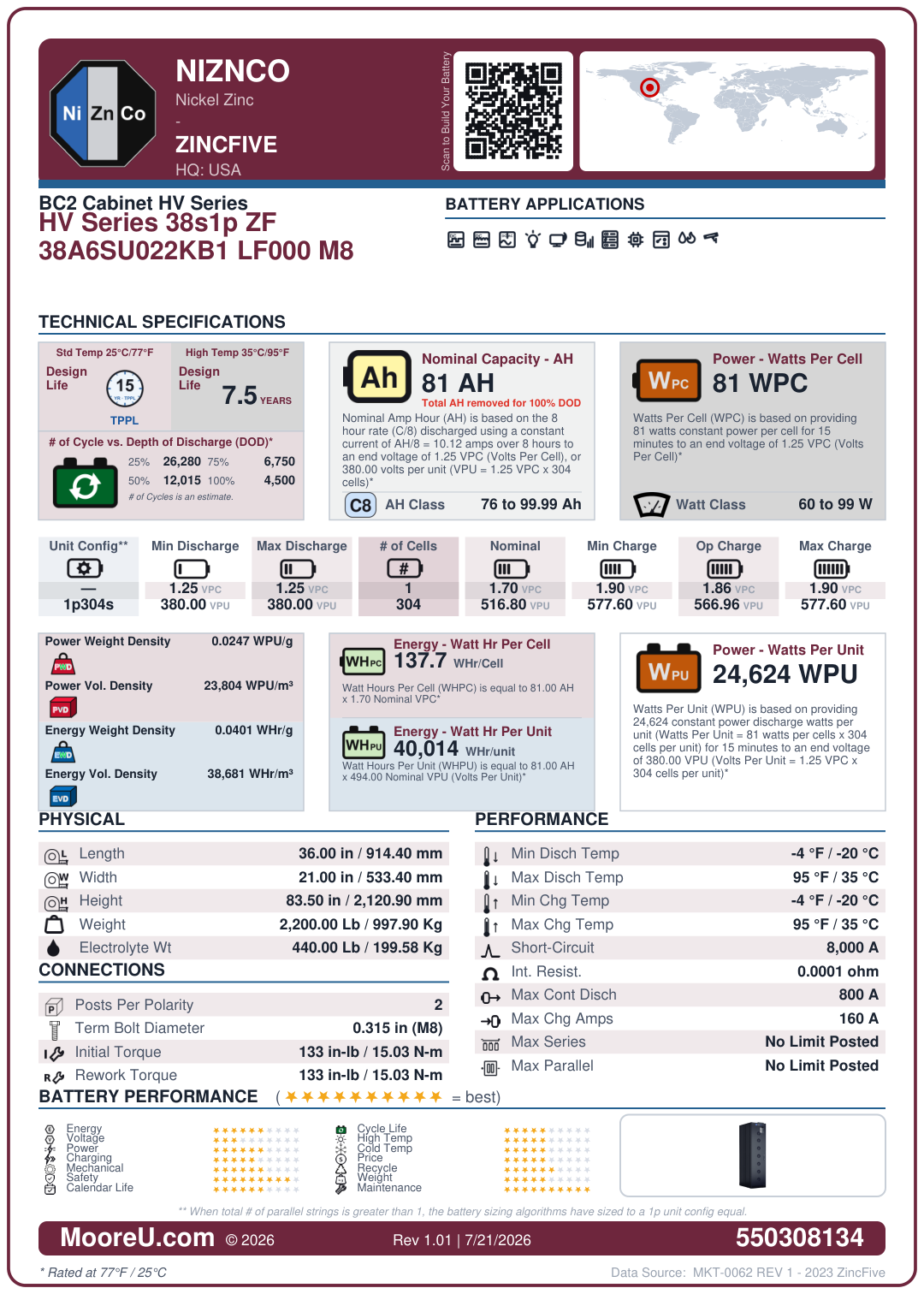

Furnish New Battery ZincFive BC2 Cabinet HV Series 38s1p ZF 38A6SU022KB1 LF000 M8
| Battery Model | ZincFive BC2 Cabinet HV Series 38s1p ZF 38A6SU022KB1 LF000 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 81 |
| AH Per String Rating | 8 hr @ 1.25 VPC |
| Cells Per Unit | 304 |
| Nominal VPC | 1.65 |
| Model KWH | 41 |
| Charge VPC | 1.865 (Min: 1.865, Max: 1.924) |
| Discharge VPC | Min: 1.25, Max: 1.25 |
| Operational Temp Comp | -0.0022 V/°C/cell |
| Cycle Temp Comp | -0.0022 V/°C/cell |
| Discharge Temp Range | -20°C to 35°C |
| Charge Temp Range | -20°C to 35°C |
| ISC Amps | 8000 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 36 x 21 x 83.5 in |
| Weight | 2200 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | UL-2054 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 800 Amps |
| Max Charge Amps | 160 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 81 |
| Watts Per Cell Rating | 15 min @ 1.25 VPC |
| Weight of Electrolyte | 440 lbs |
