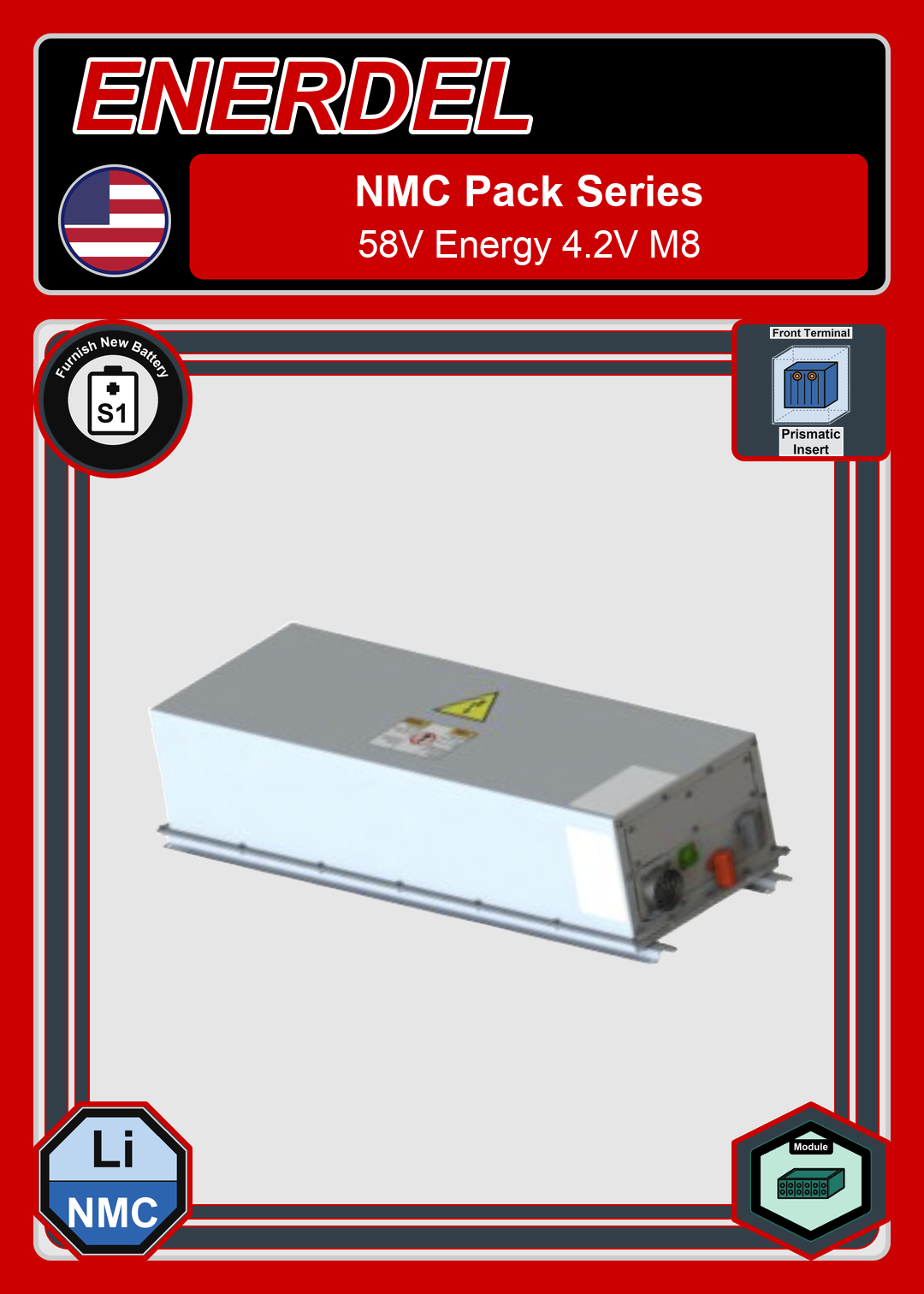

Furnish New Battery Enerdel NMC Pack Series 58V Energy 4 2V M8
Technology: Li_NMC.pngFurnish New Battery Enerdel NMC Pack Series 58V Energy 4 2V M8
$682.49
Build my Battery
Recycle My Battery
Furnish New Battery Enerdel NMC Pack Series 58V Energy 4 2V M8

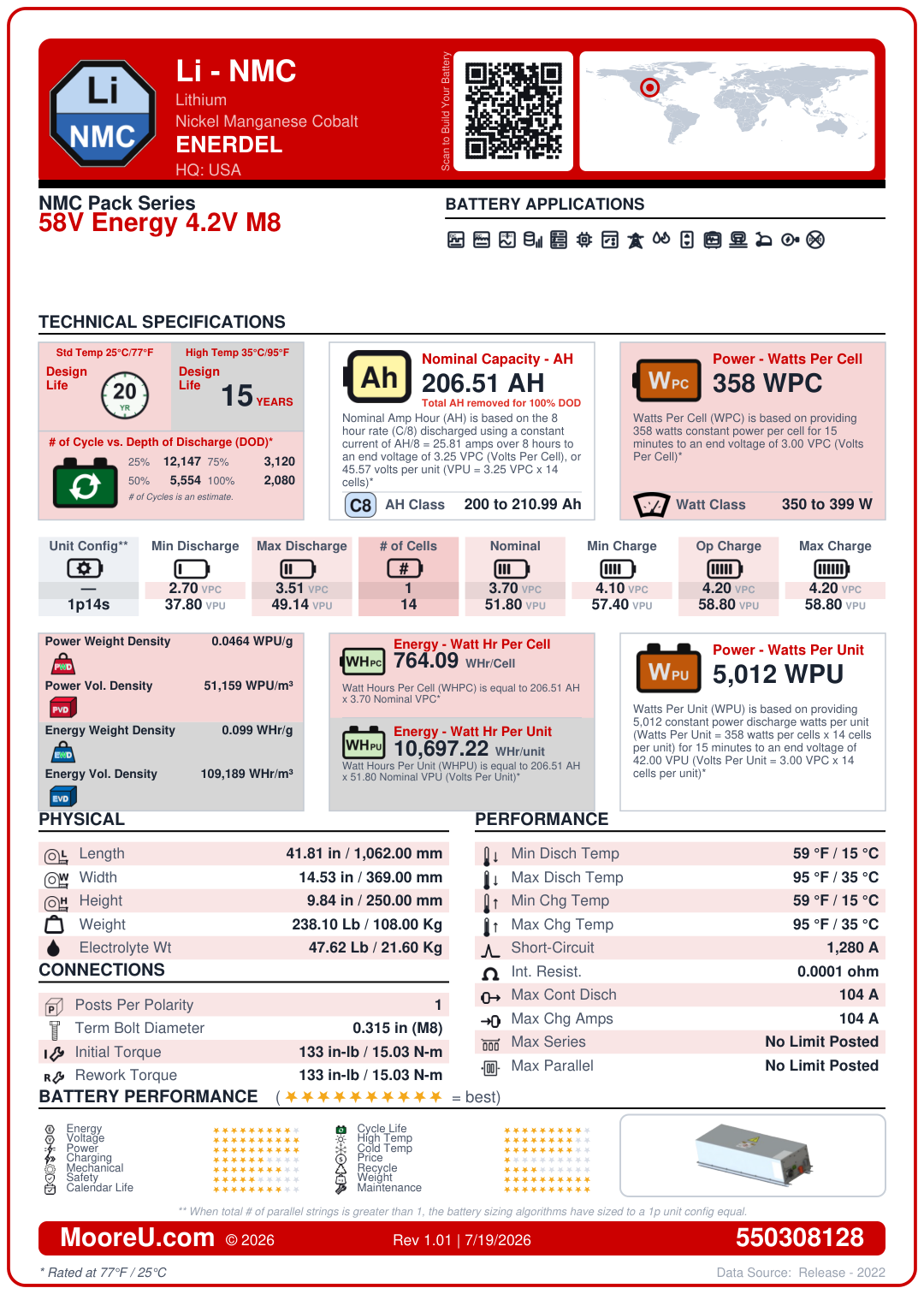

| Battery Model | Enerdel NMC Pack Series 58V Energy 4 2V M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 206.51 |
| AH Per String Rating | 8 hr @ 3.255 VPC |
| Cells Per Unit | 14 |
| Nominal VPC | 3.7 |
| Model KWH | 11 |
| Charge VPC | 4.2 (Min: 4.2, Max: 4.2) |
| Discharge VPC | Min: 3, Max: 3.51 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | 15°C to 35°C |
| Charge Temp Range | 15°C to 35°C |
| ISC Amps | 1280 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 41.811 x 14.5276 x 9.84252 in |
| Weight | 238.099 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 104 Amps |
| Max Charge Amps | 104 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 358 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 47.6198 lbs |
