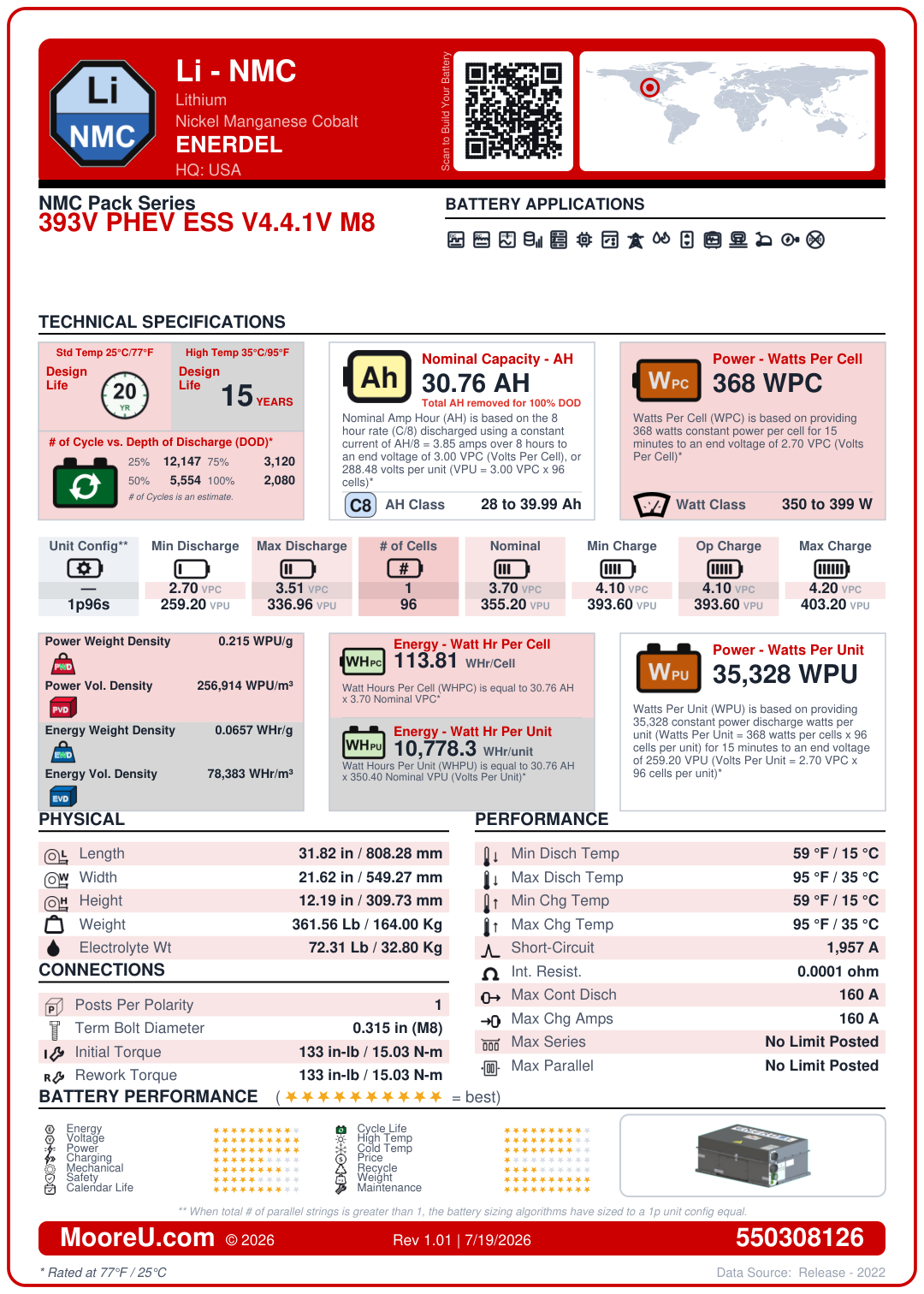

Front of card
Back of card

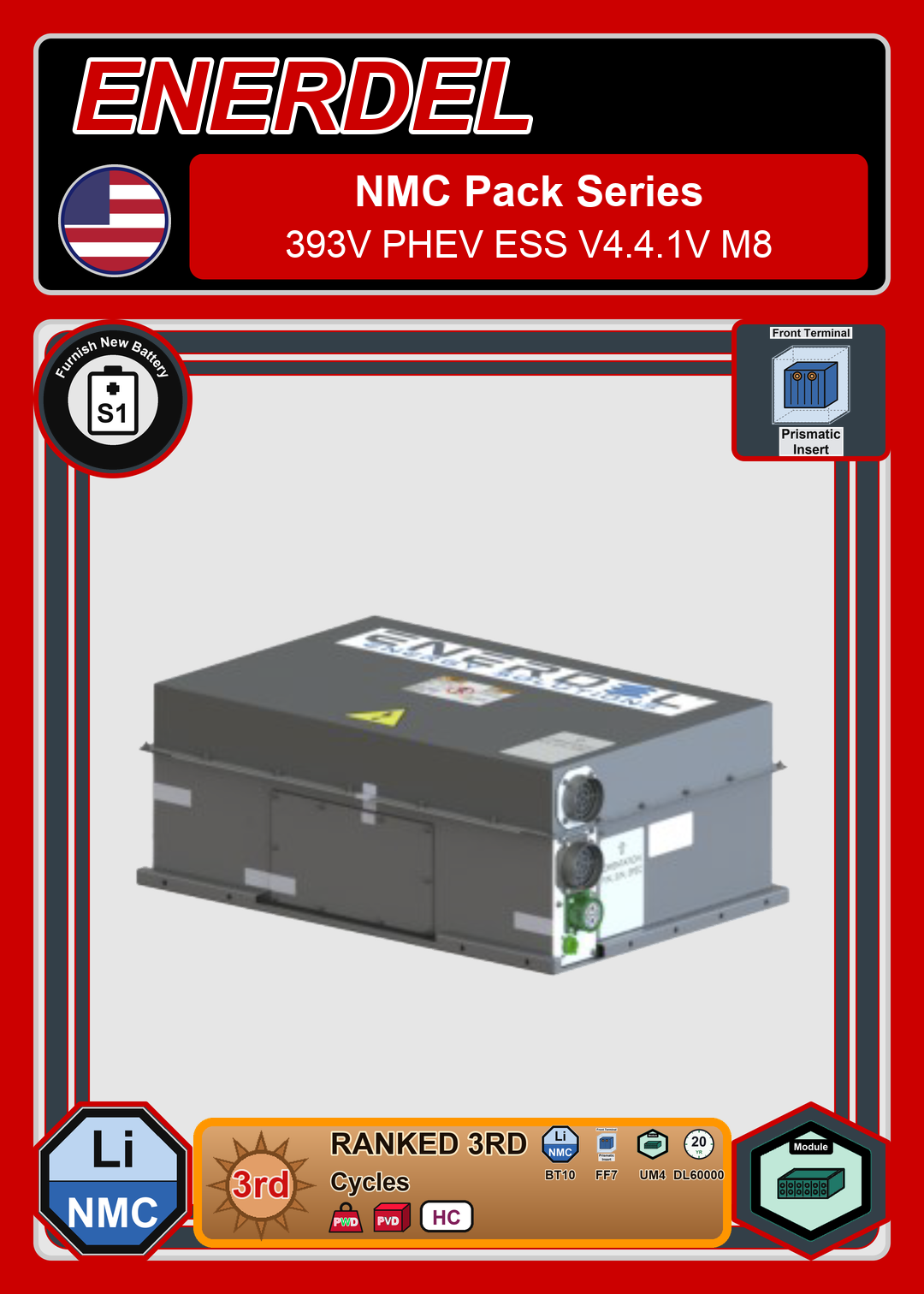

Furnish New Battery Enerdel NMC Pack Series 393V PHEV ESS V4 4 1V M8
Technology: Li_NMC.pngFurnish New Battery Enerdel NMC Pack Series 393V PHEV ESS V4 4 1V M8
$1,500.00
Build my Battery
Recycle My Battery
Furnish New Battery Enerdel NMC Pack Series 393V PHEV ESS V4 4 1V M8
| Battery Model | Enerdel NMC Pack Series 393V PHEV ESS V4 4 1V M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 30.76 |
| AH Per String Rating | 8 hr @ 3.005 VPC |
| Cells Per Unit | 96 |
| Nominal VPC | 3.65 |
| Model KWH | 11 |
| Charge VPC | 4.1 (Min: 4.1, Max: 4.1) |
| Discharge VPC | Min: 2.5, Max: 3.51 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | 15°C to 35°C |
| Charge Temp Range | 15°C to 35°C |
| ISC Amps | 1957 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 31.822 x 21.625 x 12.194 in |
| Weight | 361.558 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 160 Amps |
| Max Charge Amps | 160 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 368 |
| Watts Per Cell Rating | 15 min @ 2.7 VPC |
| Weight of Electrolyte | 72.3116 lbs |
Related Products

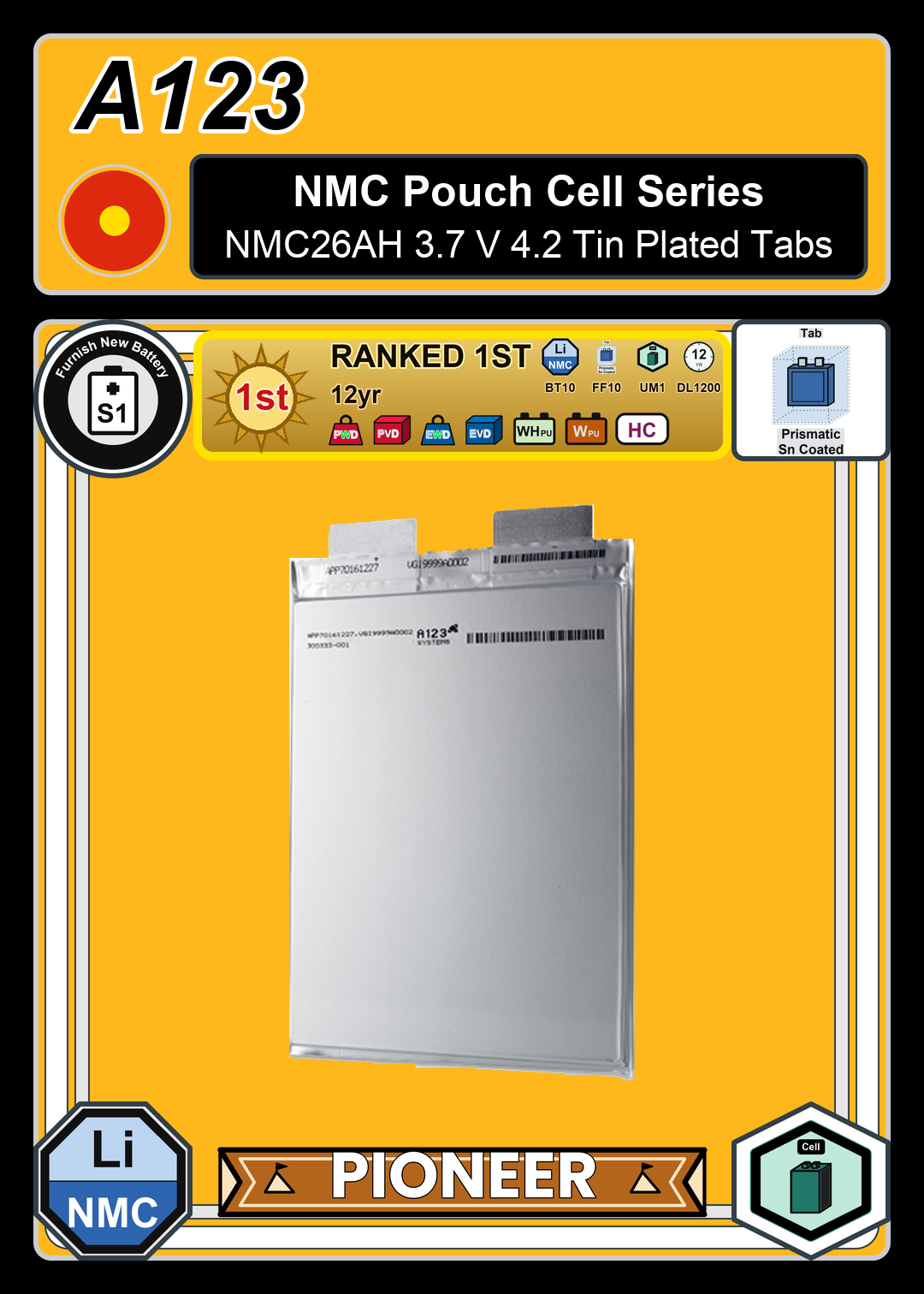

Furnish_New_Battery_A123_NMC_Pouch_Cell_Series_NMC26AH_3_7_V_4_2_Tin_Plated_Tabs
