Furnish New Battery Kokam MarineModule 15 1 KWH 20s2p 103AH HE 4 13 C5 3 2 Plug
Technology: Li_NMC.pngFurnish New Battery Kokam MarineModule 15 1 KWH 20s2p 103AH HE 4 13 C5 3 2 Plug
$3,038.42
Build my Battery
Recycle My Battery

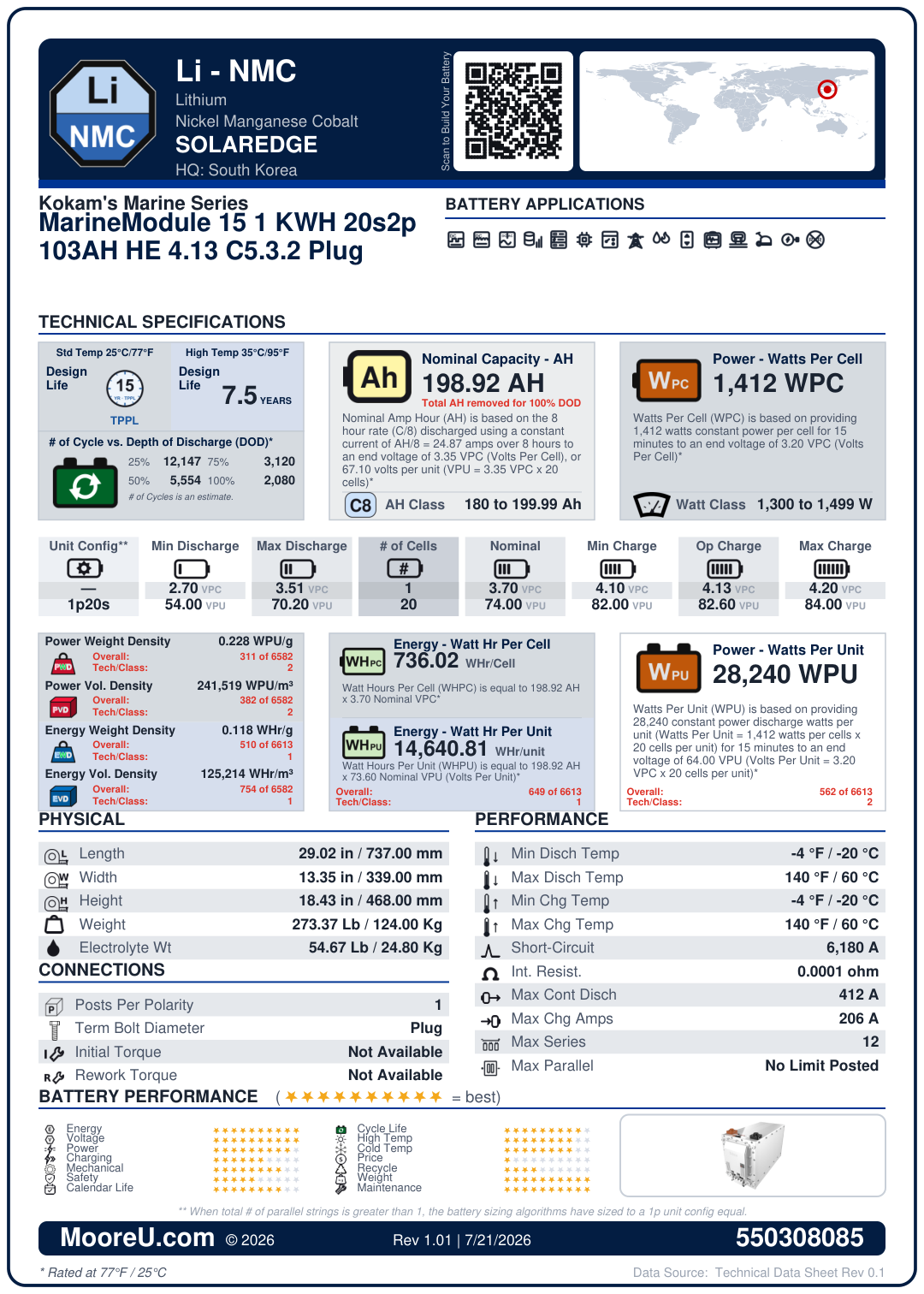

Furnish New Battery Kokam MarineModule 15 1 KWH 20s2p 103AH HE 4 13 C5 3 2 Plug
| Battery Model | Kokam MarineModule 15 1 KWH 20s2p 103AH HE 4 13 C5 3 2 Plug |
|---|---|
| Adjustment | 1 |
| AH Per String | 198.924 |
| AH Per String Rating | 8 hr @ 3.355 VPC |
| Cells Per Unit | 20 |
| Nominal VPC | 3.68 |
| Model KWH | 15 |
| Charge VPC | 4.13 (Min: 4.13, Max: 4.13) |
| Discharge VPC | Min: 3.2, Max: 3.51 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -20°C to 60°C |
| ISC Amps | 6180 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 29.0157 x 13.3465 x 18.4252 in |
| Weight | 273.373 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Plug mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Plug |
| FOB | T |
| Max Continuous Discharge | 412 Amps |
| Max Charge Amps | 206 Amps |
| Max In Series / Parallel | 12 / 0 |
| Watts Per Cell (15min 1.67) | 1412 |
| Watts Per Cell Rating | 15 min @ 3.2 VPC |
| Weight of Electrolyte | 54.6746 lbs |
