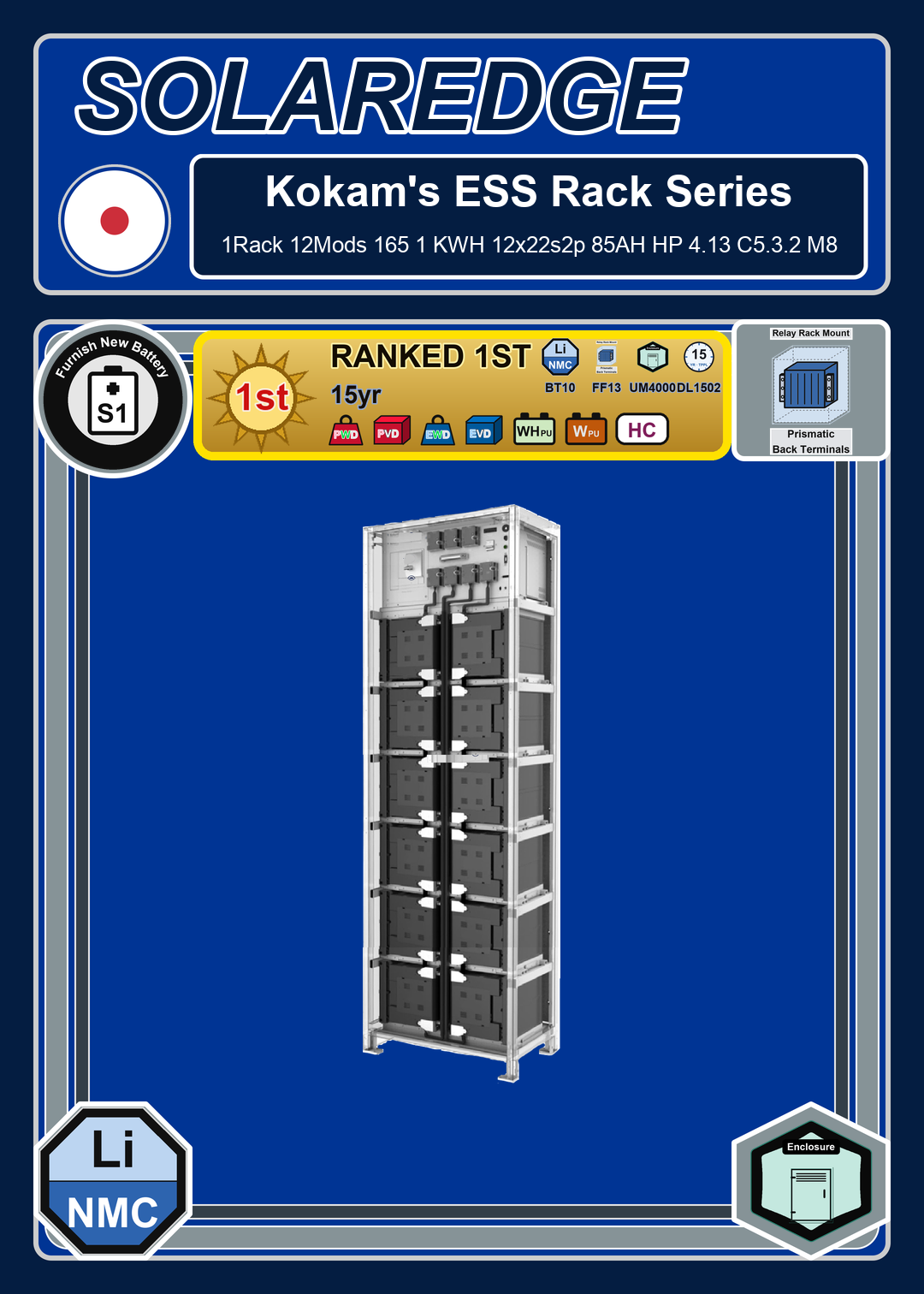

Furnish New Battery Kokam 1Rack 12Mods 165 1 KWH 12x22s2p 85AH HP 4 13 C5 3 2 M8
Technology: Li_NMC.pngFurnish New Battery Kokam 1Rack 12Mods 165 1 KWH 12x22s2p 85AH HP 4 13 C5 3 2 M8
$4,090.59
Build my Battery
Recycle My Battery
Furnish New Battery Kokam 1Rack 12Mods 165 1 KWH 12x22s2p 85AH HP 4 13 C5 3 2 M8

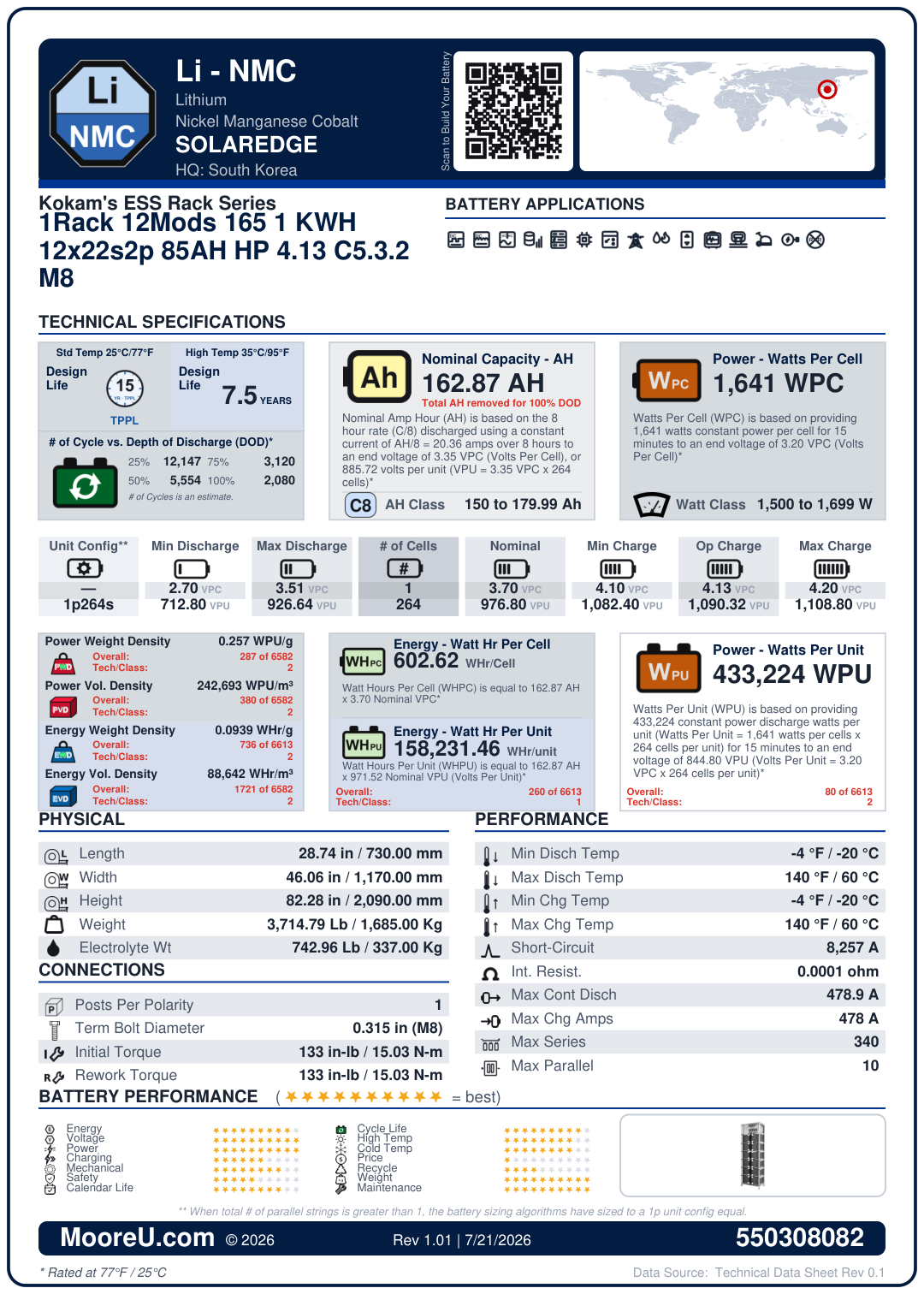

| Battery Model | Kokam 1Rack 12Mods 165 1 KWH 12x22s2p 85AH HP 4 13 C5 3 2 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 162.87 |
| AH Per String Rating | 8 hr @ 3.355 VPC |
| Cells Per Unit | 264 |
| Nominal VPC | 3.68 |
| Model KWH | 158 |
| Charge VPC | 4.13 (Min: 4.13, Max: 4.13) |
| Discharge VPC | Min: 3.2, Max: 3.51 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -20°C to 60°C |
| ISC Amps | 8257 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 28.7402 x 46.06299 x 82.28346 in |
| Weight | 3714.789 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 478.9 Amps |
| Max Charge Amps | 478 Amps |
| Max In Series / Parallel | 340 / 10 |
| Watts Per Cell (15min 1.67) | 1641 |
| Watts Per Cell Rating | 15 min @ 3.2 VPC |
| Weight of Electrolyte | 742.9578 lbs |
