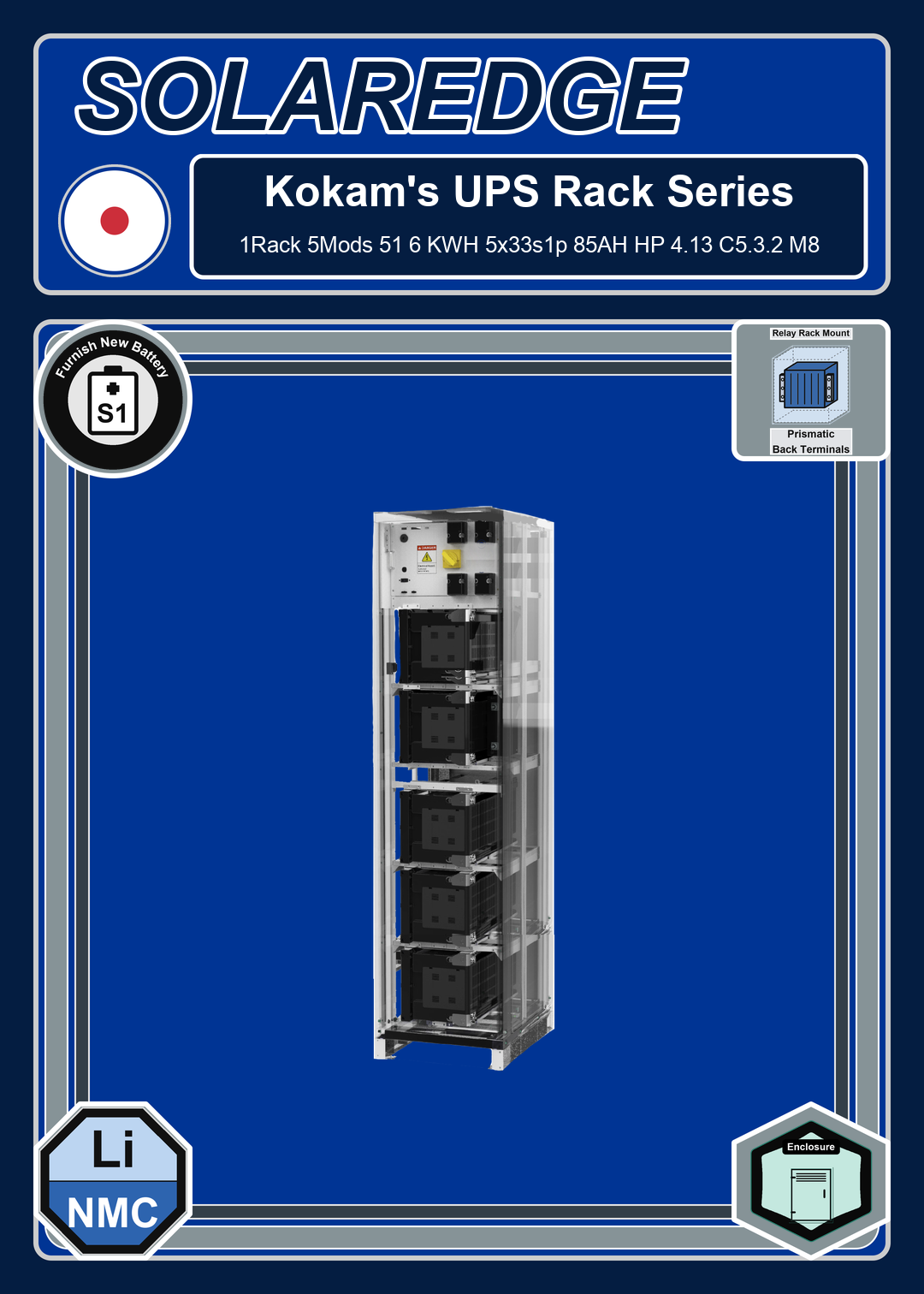

Furnish New Battery Kokam 1Rack 5Mods 51 6 KWH 5x33s1p 85AH HP 4 13 C5 3 2 M8
Technology: Li_NMC.pngFurnish New Battery Kokam 1Rack 5Mods 51 6 KWH 5x33s1p 85AH HP 4 13 C5 3 2 M8
$8,226.62
Build my Battery
Recycle My Battery

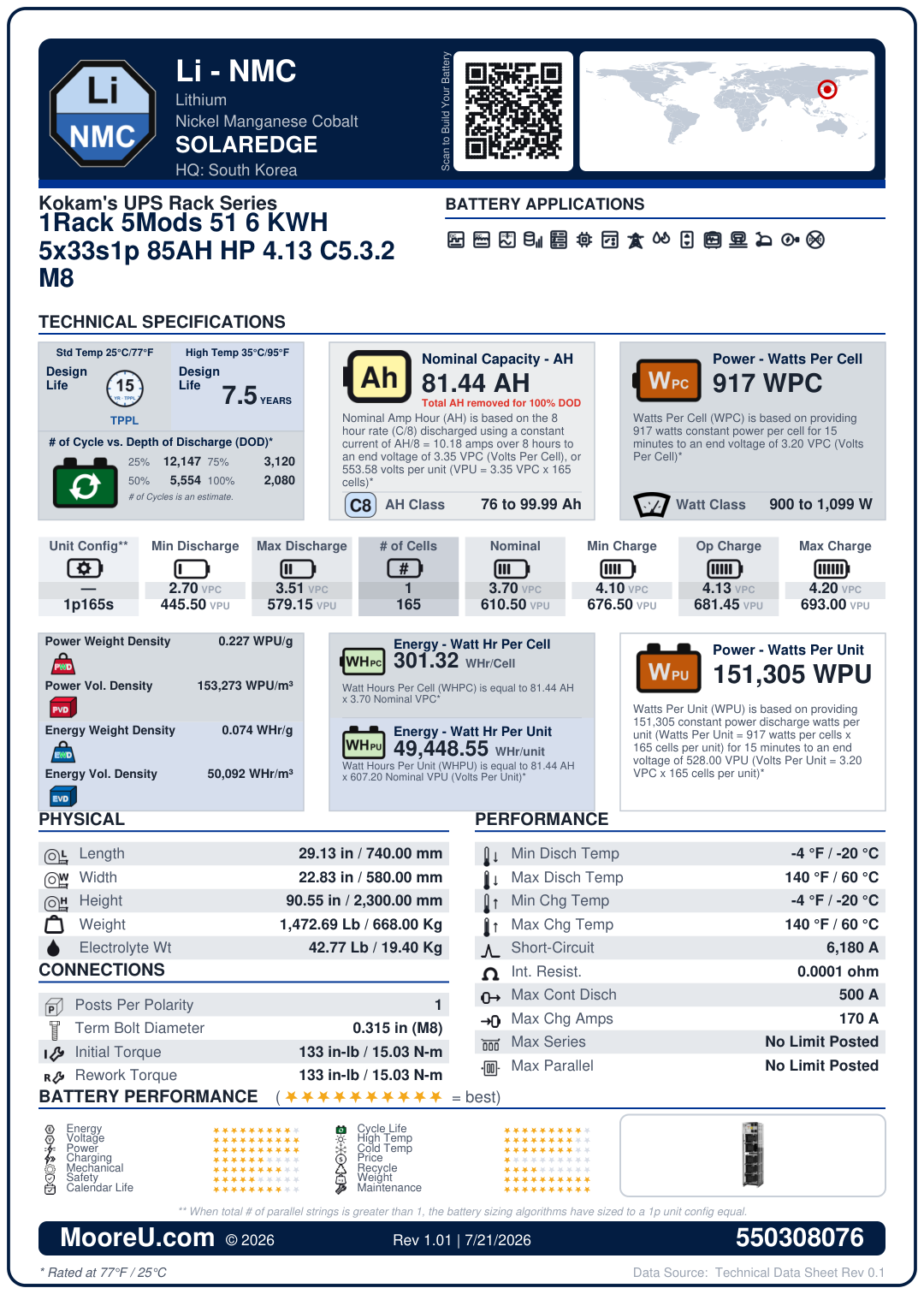

Furnish New Battery Kokam 1Rack 5Mods 51 6 KWH 5x33s1p 85AH HP 4 13 C5 3 2 M8
| Battery Model | Kokam 1Rack 5Mods 51 6 KWH 5x33s1p 85AH HP 4 13 C5 3 2 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 81.437 |
| AH Per String Rating | 8 hr @ 3.355 VPC |
| Cells Per Unit | 165 |
| Nominal VPC | 3.68 |
| Model KWH | 49 |
| Charge VPC | 4.13 (Min: 4.13, Max: 4.13) |
| Discharge VPC | Min: 3.2, Max: 3.51 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -20°C to 60°C |
| ISC Amps | 6180 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 29.1339 x 22.8346 x 90.55118 in |
| Weight | 1472.69 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 500 Amps |
| Max Charge Amps | 170 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 917 |
| Watts Per Cell Rating | 15 min @ 3.2 VPC |
| Weight of Electrolyte | 42.7696 lbs |
