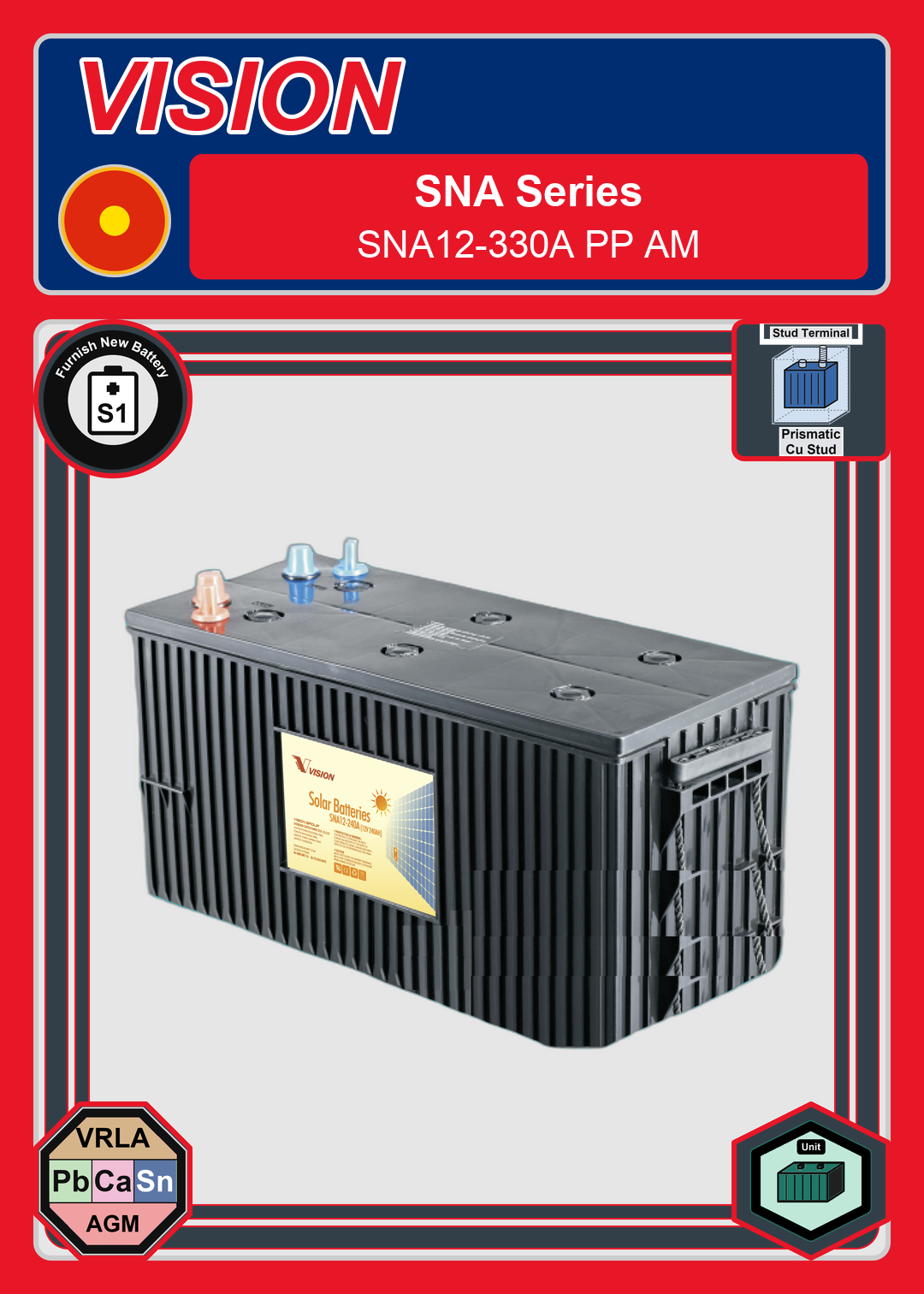

Front of card

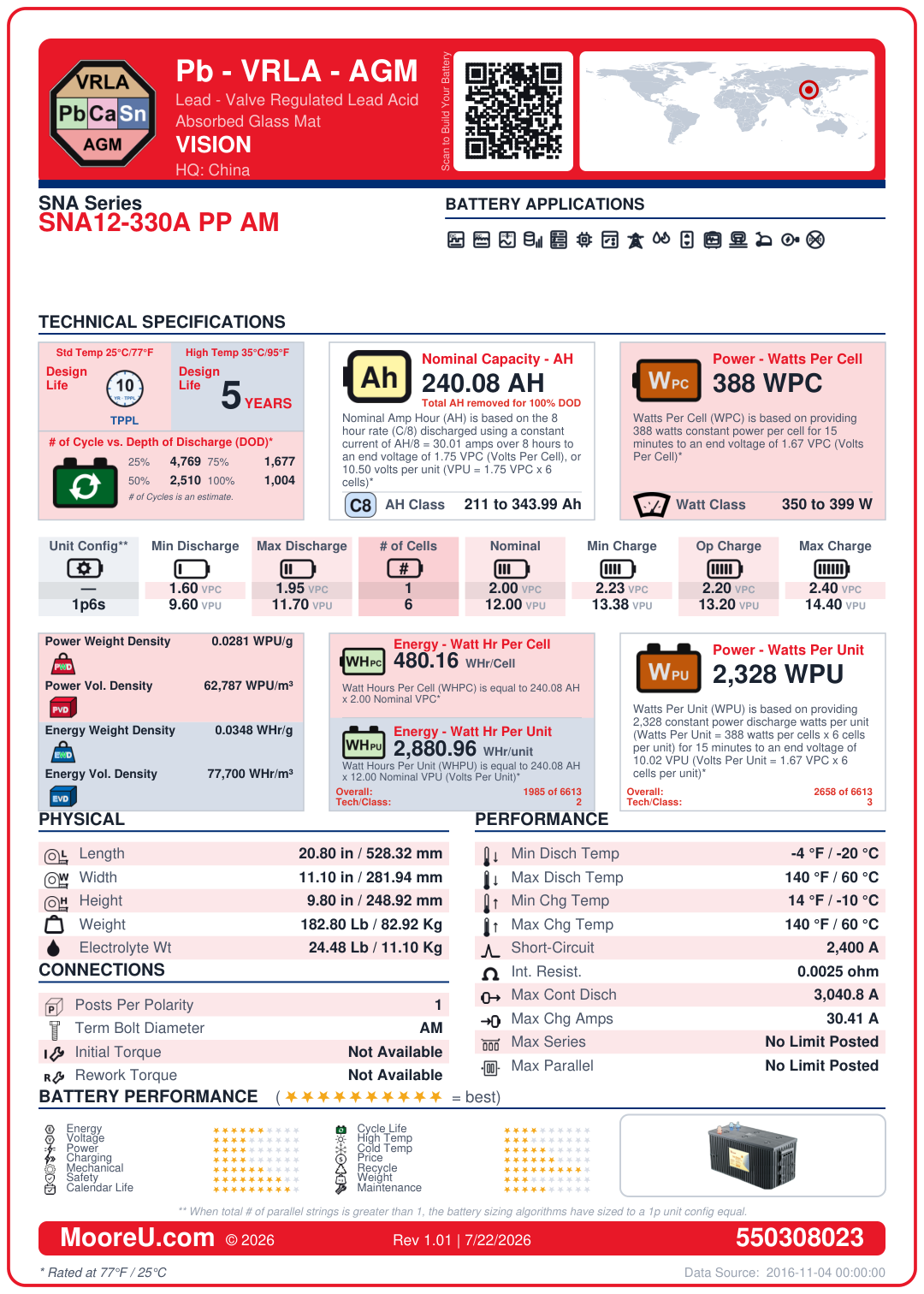

Back of card
Furnish New Battery Vision SNA Series SNA12 330A PP AM
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Vision SNA Series SNA12 330A PP AM
$155.74
Build my Battery
Recycle My Battery
Furnish New Battery Vision SNA Series SNA12 330A PP AM
| Battery Model | Vision SNA Series SNA12 330A PP AM |
|---|---|
| Adjustment | 1 |
| AH Per String | 240.08 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 3 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.45) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 2400 |
| Internal Resistance | 0.0025 Ohms |
| Dimensions (L x W x H) | 20.8 x 11.1 x 9.8 in |
| Weight | 182.8 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (AM mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | AT |
| FOB | T |
| Max Continuous Discharge | 3040.8 Amps |
| Max Charge Amps | 30.408 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 388 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 24.48 lbs |
